SierraFC M8‐4 Protocol Analyzer User Manual 259
Interface Teledyne LeCroy
Scenario Windows (Main Library)
Two Scenario windows are displayed as shown below. A list of the Scenario is displayed in
the right Scenarios panel. A solid orange box implies a warning, a solid red box indicates
an error, a solid green box indicates a valid scenario and an empty green box denotes no
Events are defined for that Scenario.
You can select a Library and Scenario in the Port Assignment panel on the left. Refer to
Figure 4.34 on page 311 for details on selecting the library and scenario. You can set Port
Configuration to activate ports in the left Scenarios panel (see Figure 4.2).
Refer to “Port Configuration for FC InFusion” on page 262 for more information.

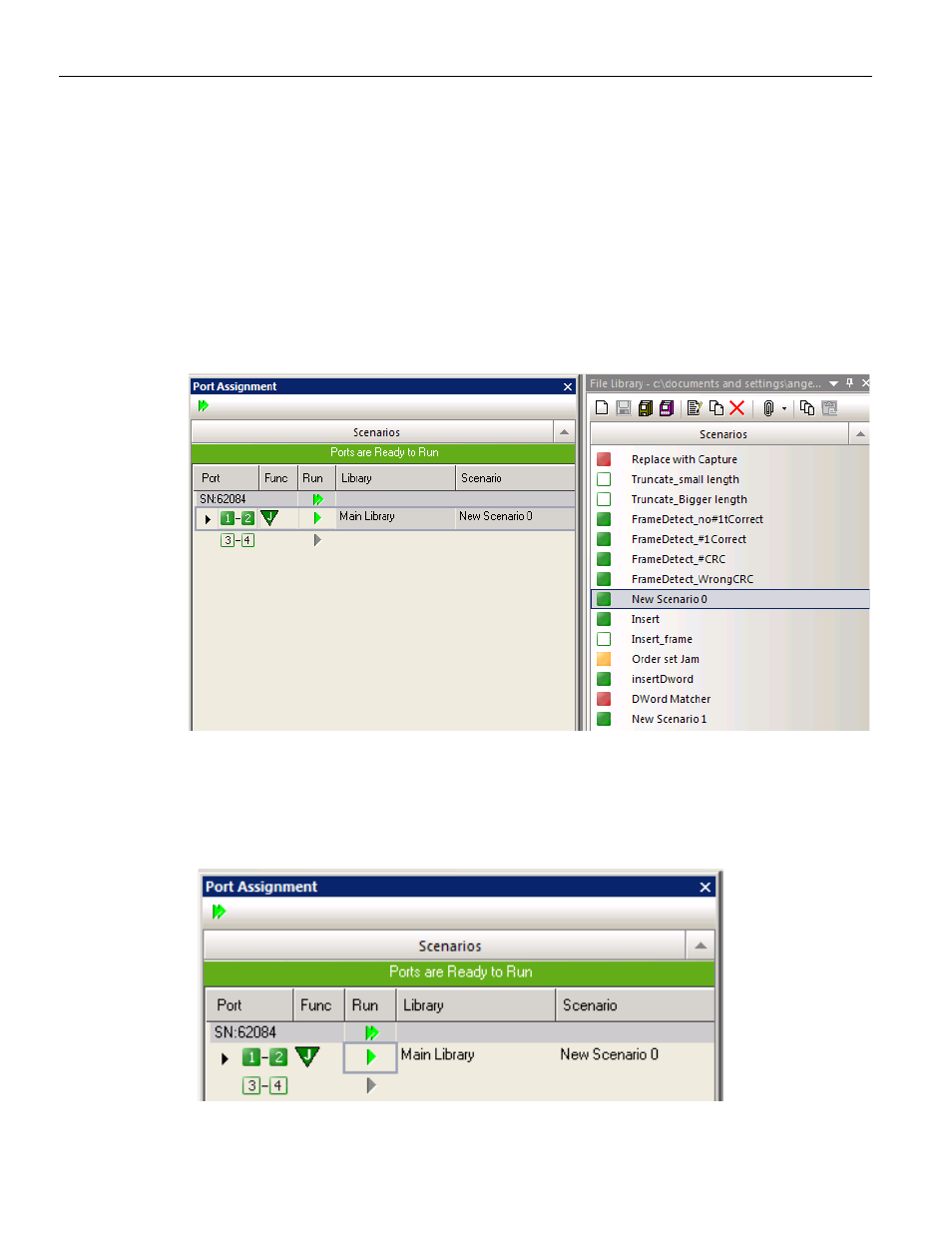

Figure 4.2: Scenario Windows
After activating the Port you can run it by clicking the green arrow. A black rectangle Stop
button will display. Press the black button to stop running the Scenario (see
Figure 4.4 on
page 260 ).
Figure 4.3: Running a Scenario
