Teledyne LeCroy Easy Mode (Pre‐Defined Setups)
96 SierraFC M8‐4 Protocol Analyzer User Manual
To select the value for ADVB (Object0) Pixel Array Order, click on the drop‐down menu
and select from the options listed below.
 Any Pixel Array Order
 Left to Right, Top to Bottom
 Right to Left, Top to Bottom
 Left to Right, Bottom to Top
 Right to Left, Bottom to Top
 Top to Bottom, Left to Right
 Top to Bottom, Right to Left
 Bottom to Top, Left to Right
 Bottom to Top, Right to Left
 Spare

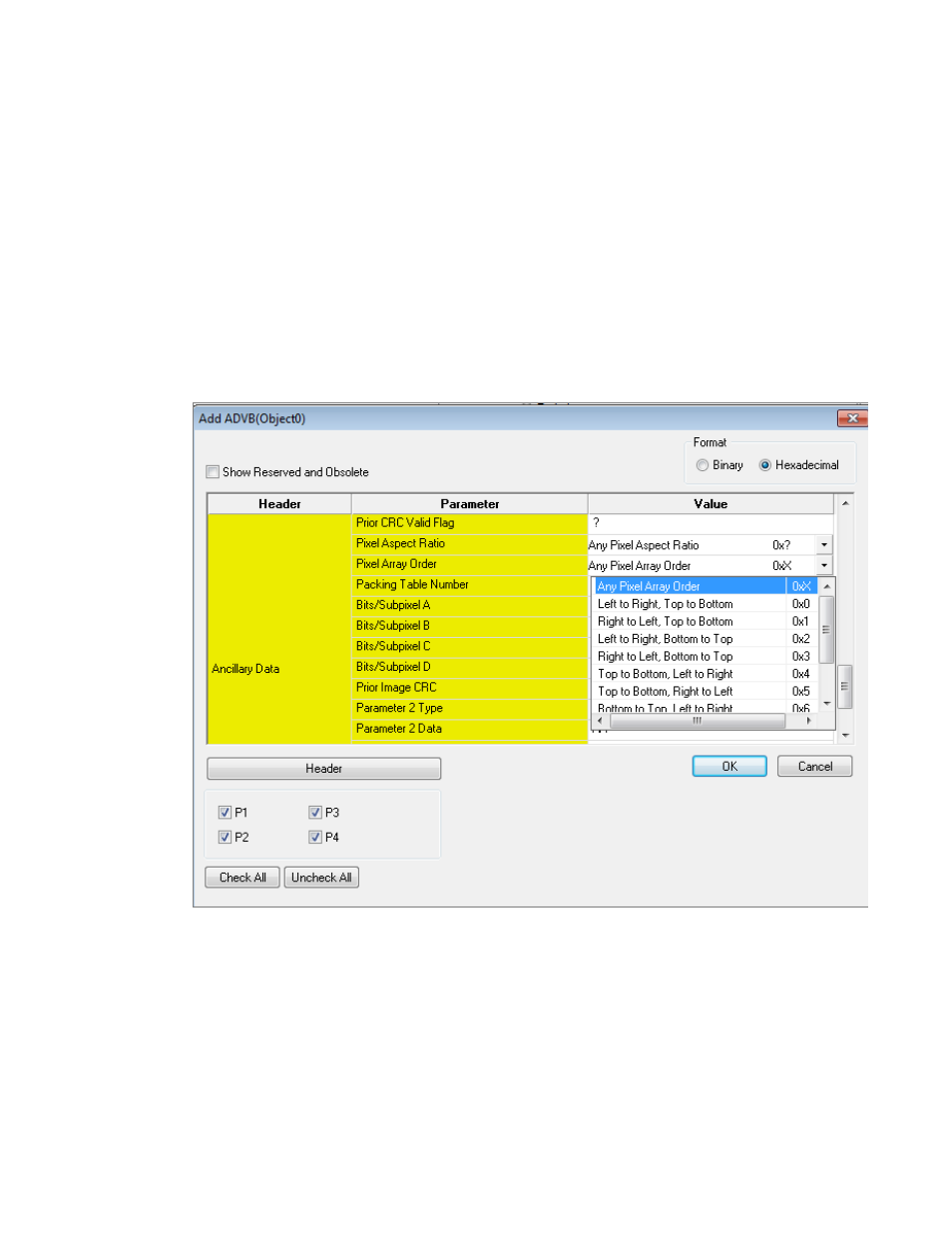

Figure 2.65: Add ADVB(Object0) Pixel Array Order Drop-down List
