Teledyne LeCroy Software Settings
244 SierraFC M8‐4 Protocol Analyzer User Manual
User-Defined Decoding
User‐defined decoding allows you to create a definition file to interpret commands and
frames that are not in the standard set recognized by the software.
Select Configuration > User Defined Decoding to open the User Defined Decoding dialog.

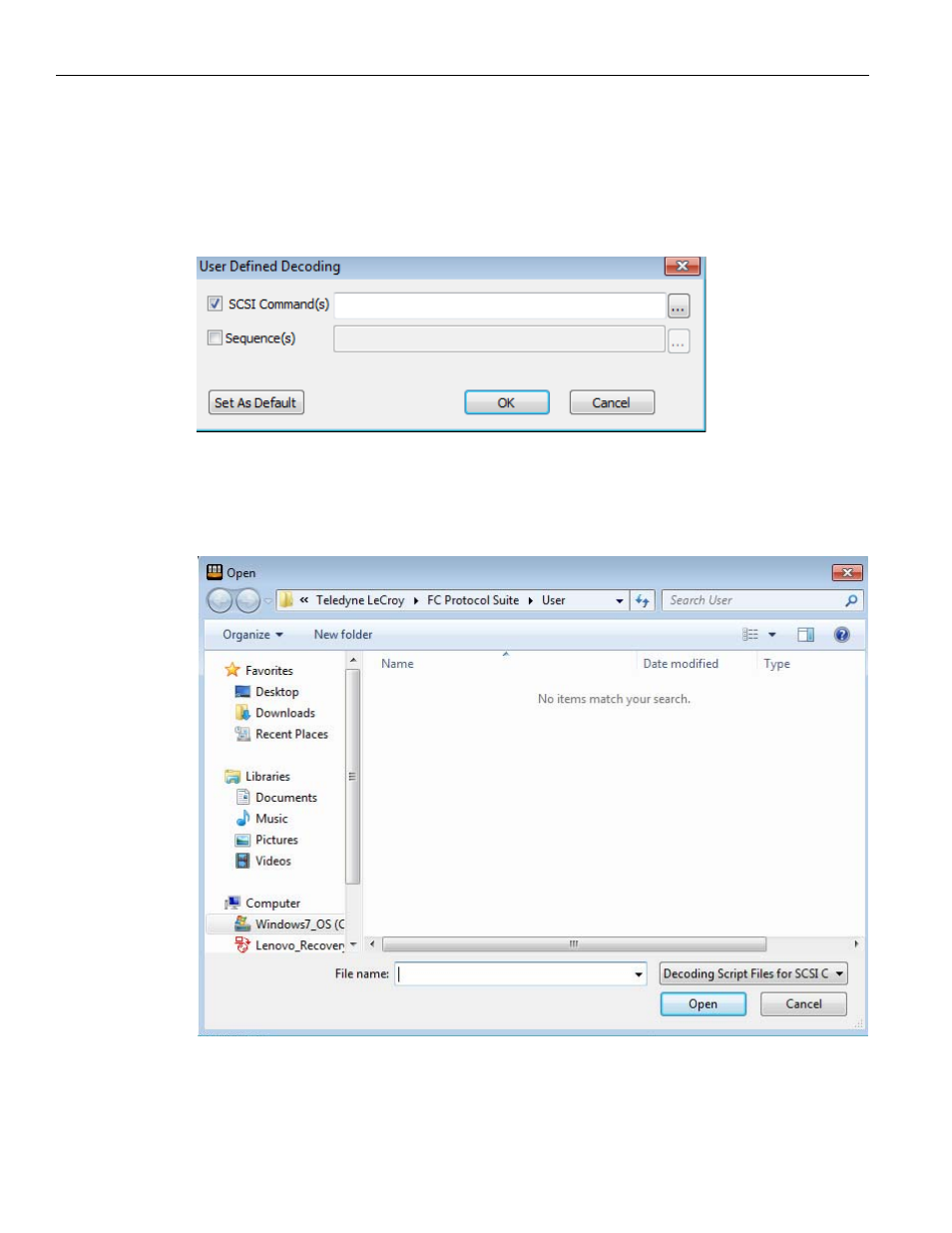

Figure 3.75: User Defined Decoding Dialog
Check SCSI Command(s) and/or Sequence(s). Click the ellipses next to a command type
text box to display the Open dialog. Choose an appropriate script file and click Open.
Figure 3.76: Choosing a Script File
