Teledyne LeCroy Easy Mode (Pre‐Defined Setups)
100 SierraFC M8‐4 Protocol Analyzer User Manual
VSAN Basic
Add VSAN‐FCP SCSI Command
Double‐click VSAN FCP SCSI Command in the Patterns Library panel to open the VSAN
FCP SCSI Command dialog.

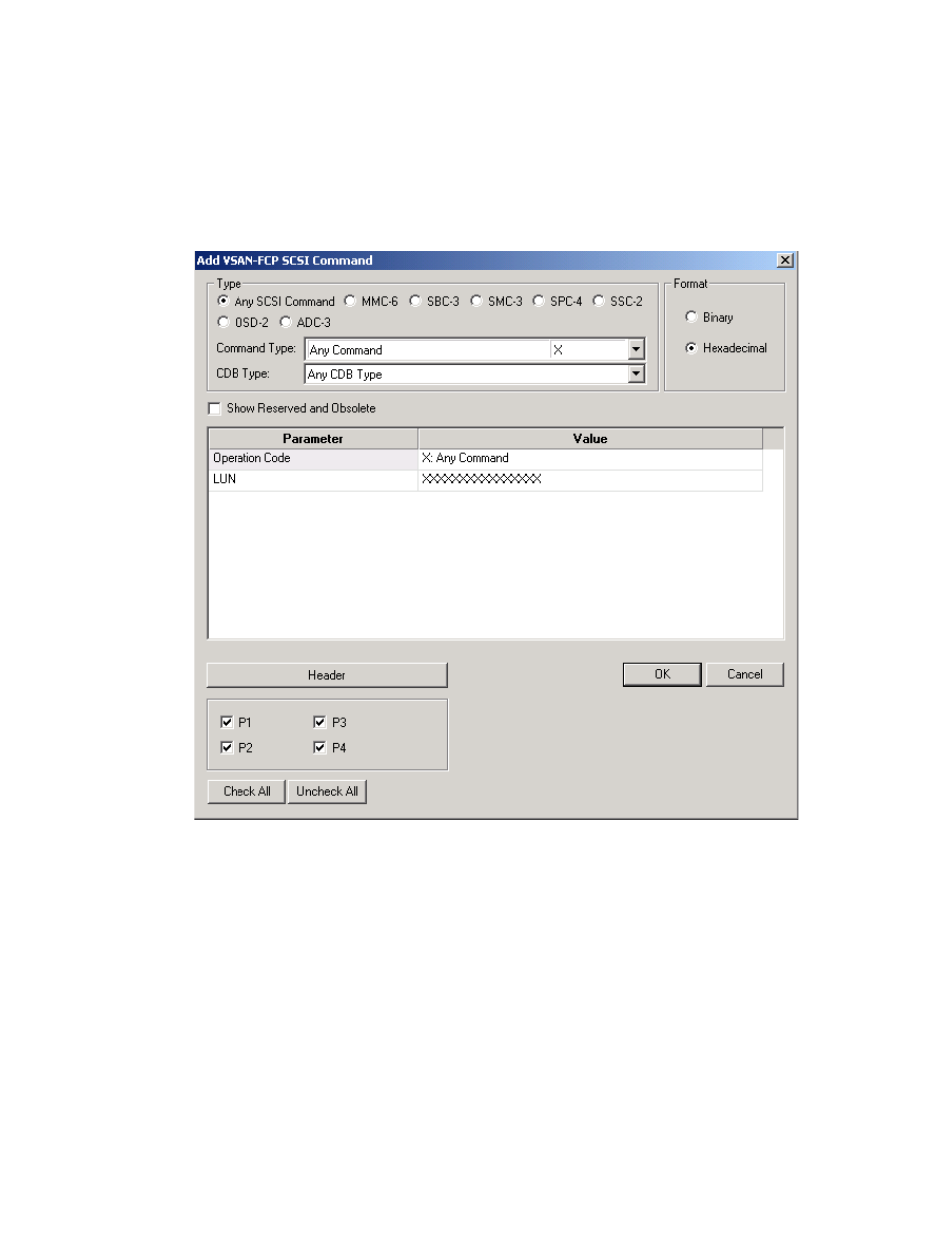

Figure 2.69: VSAN FCP SCSI Command Dialog
The format can be Binary or Hexadecimal.
To select a VSAN FCP SCSI Command Type select from the following options:
 Any SCSI Command
 MMC_6
 SBC_3
 SMC_3
 SPC_4
 SSC_2
 OSD_2
 ADC_3
