SierraFC M8‐4 Protocol Analyzer User Manual 83
Easy Mode (Pre‐Defined Setups) Teledyne LeCroy
FCAE RDMA FCP Command Frame Information Unit With Target Notification
Double‐click FCAE RDMA FCP Command Frame Information Unit ‐With Target
Notification in the Pattern window to open the Add FCAE RDMA FCP Command Frame
Information Unit With Target Notification dialog.

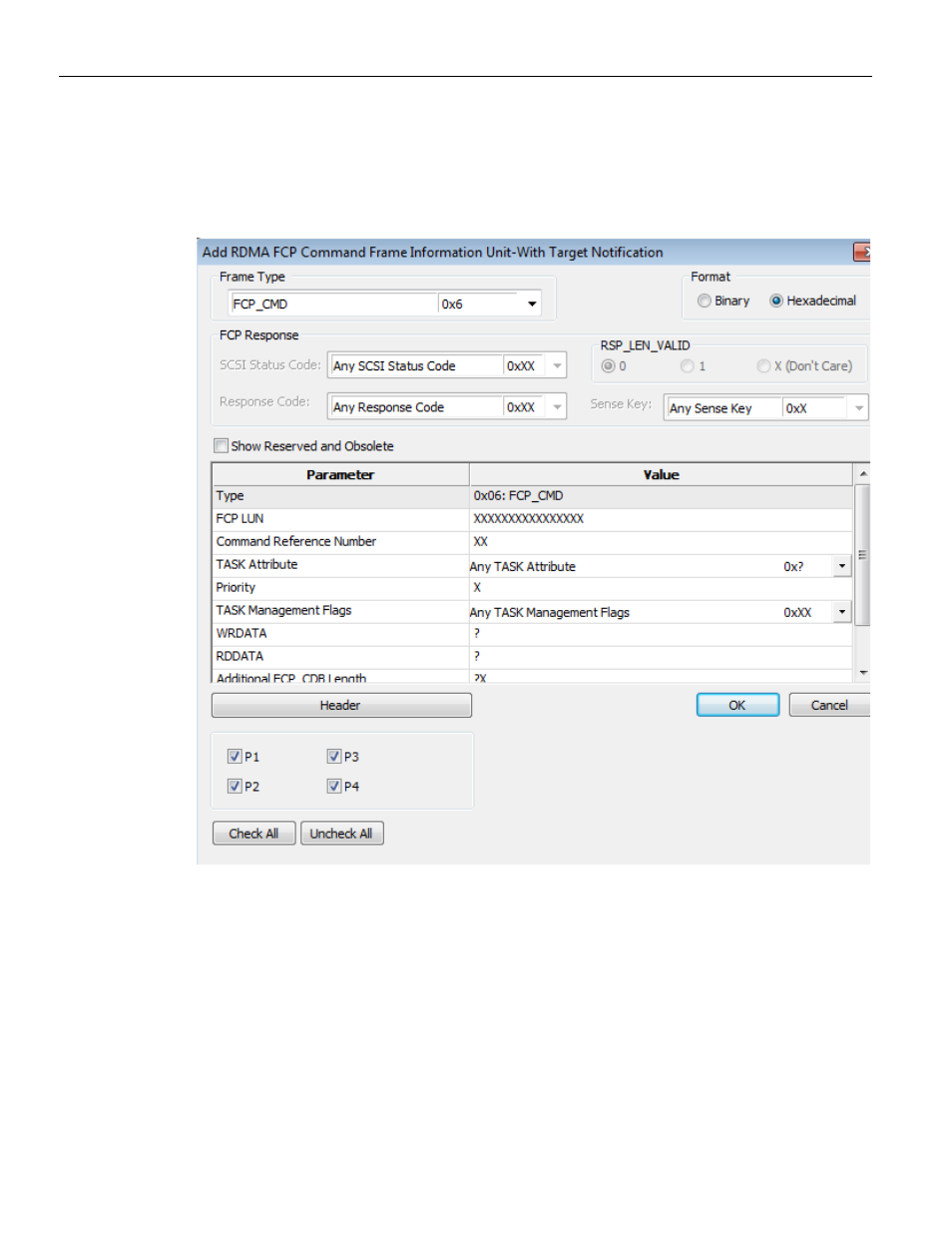

Figure 2.52: FCAE RDMA FCP Command Frame Information Unit -With Target Notification
Pattern Dialog
The format can be Binary or Hexadecimal.
To select a Frame Type, click the dropdown list. On selecting a Frame Type the Parameters
and Value of that Frame Type are displayed.
