SierraFC M8‐4 Protocol Analyzer User Manual 181
Switching Views Teledyne LeCroy
Trace Viewer Configuration
In Spreadsheet View, you can also click the Trace Viewer Configuration icon to display the
Sample Viewer Configuration dialog (see
Figure 3.10 ). Expand the Frame Fields,
Sequence Fields, SCSI Cmd Fields, ELS Cmd Fields SW Cmd Fields, GS Cmd Fields, FICON
Fields, Additional Fields, Text View and Spread Sheet View to change the settings.

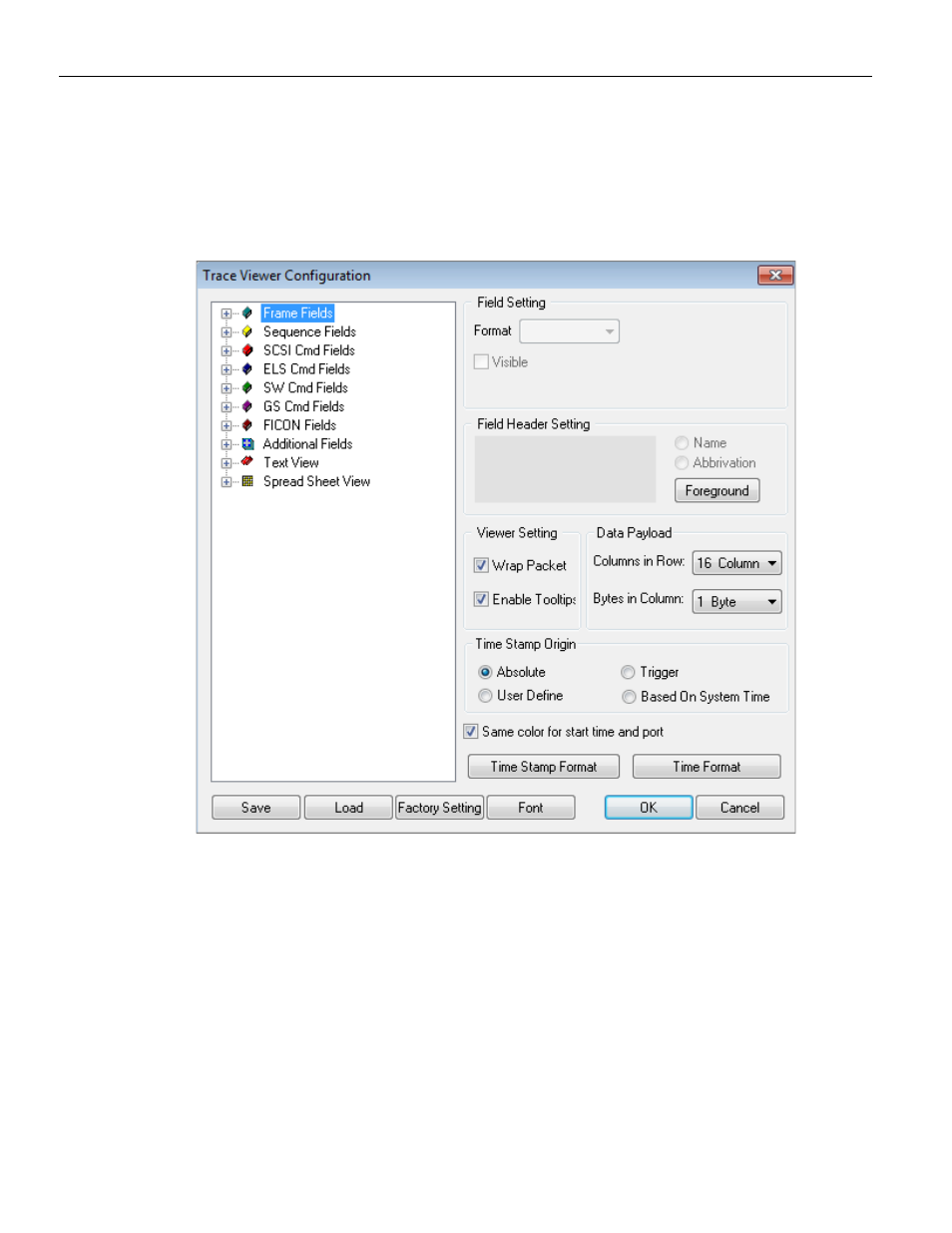

Figure 3.10: Trace Viewer Configuration Dialog
Spread Sheet View Menu Options
Right‐click on any of the columns in the Spread Sheet view to display a list of menu
options (see
Figure 3.11 on page 182 ).
You can also show or hide a port by right‐clicking a Port ID in Spread Sheet View and
choosing Show or Hide.
