SierraFC M8‐4 Protocol Analyzer User Manual
49
Easy Mode (Pre‐Defined Setups)
Teledyne LeCroy
FCP Frame Information Unit
Double‐click FCP Frame Information Unit in the Pattern window to open the Add
FCP Frame Information Unit Pattern dialog.

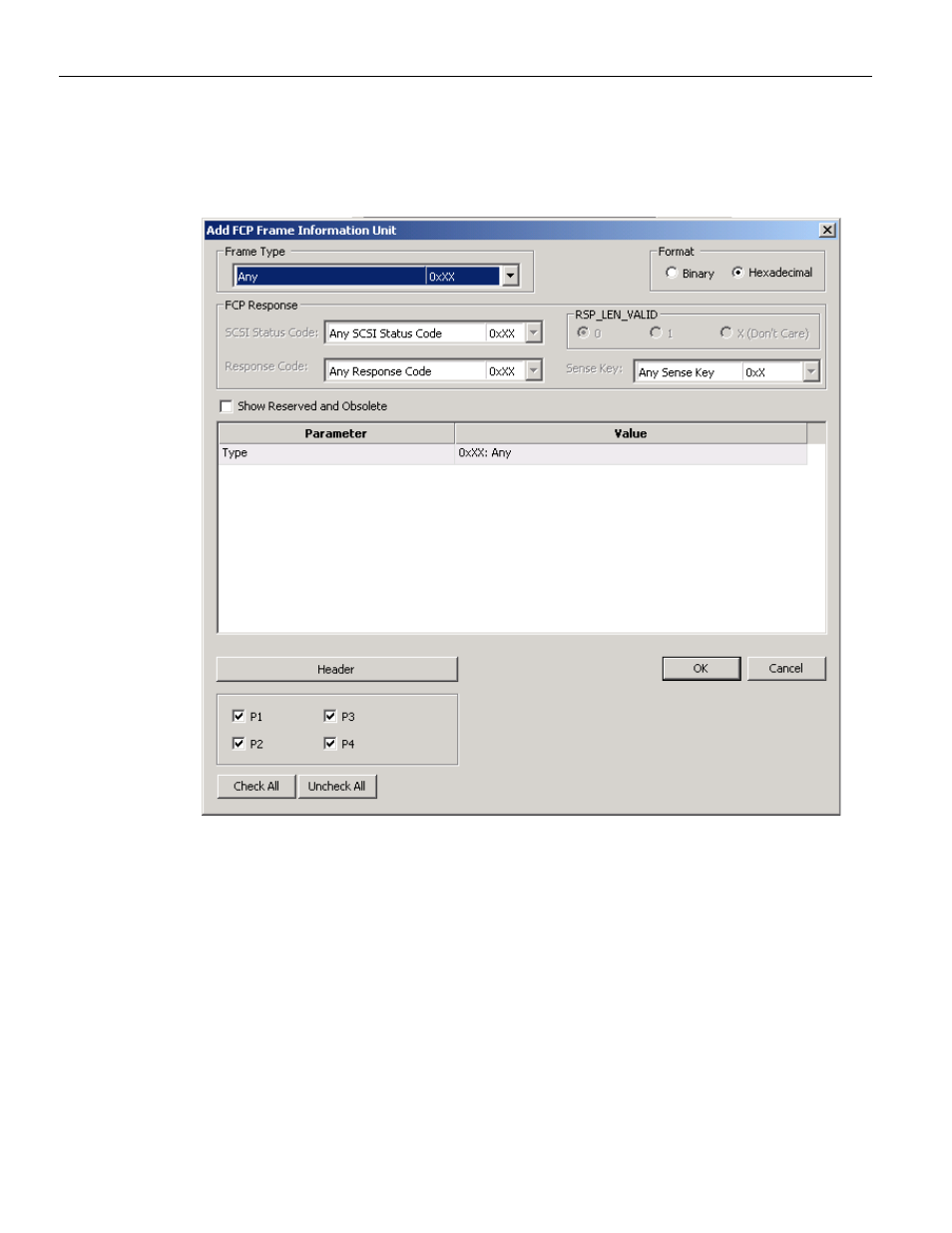

Figure 2.18: FCP Frame Information Unit Pattern Dialog
The format can be Binary or Hexadecimal.
To select a Frame Type, click the dropdown list. On selecting a Frame Type the Parameters
and Value of that Frame Type are displayed.
