Add FCAE‐1553 Command
Double‐click FCAE‐1553(Command) in the Patterns Library panel to open the FCAE‐1553
Command dialog.

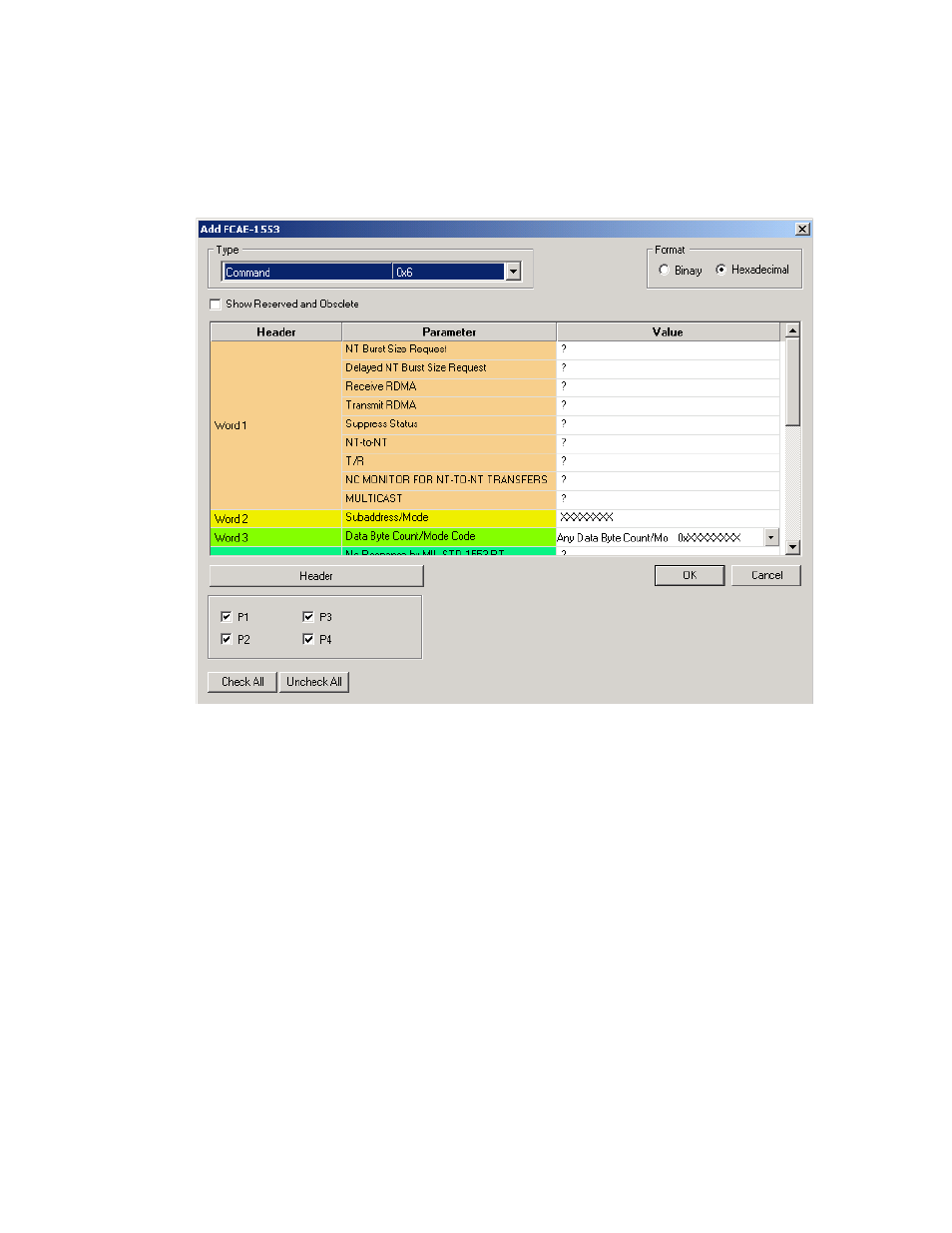

Figure 2.47: FCAE-1553 (Command) Dialog
The format can be Binary or Hexadecimal.
To select a Type click the dropdown list which has the following options:
 Any
 Data
 Command
 Status
