Teledyne LeCroy SierraFC M8-4 User Manual - Manual (Page 251)

SierraFC M8‐4 Protocol Analyzer User Manual 251
Set Address Alias Teledyne LeCroy

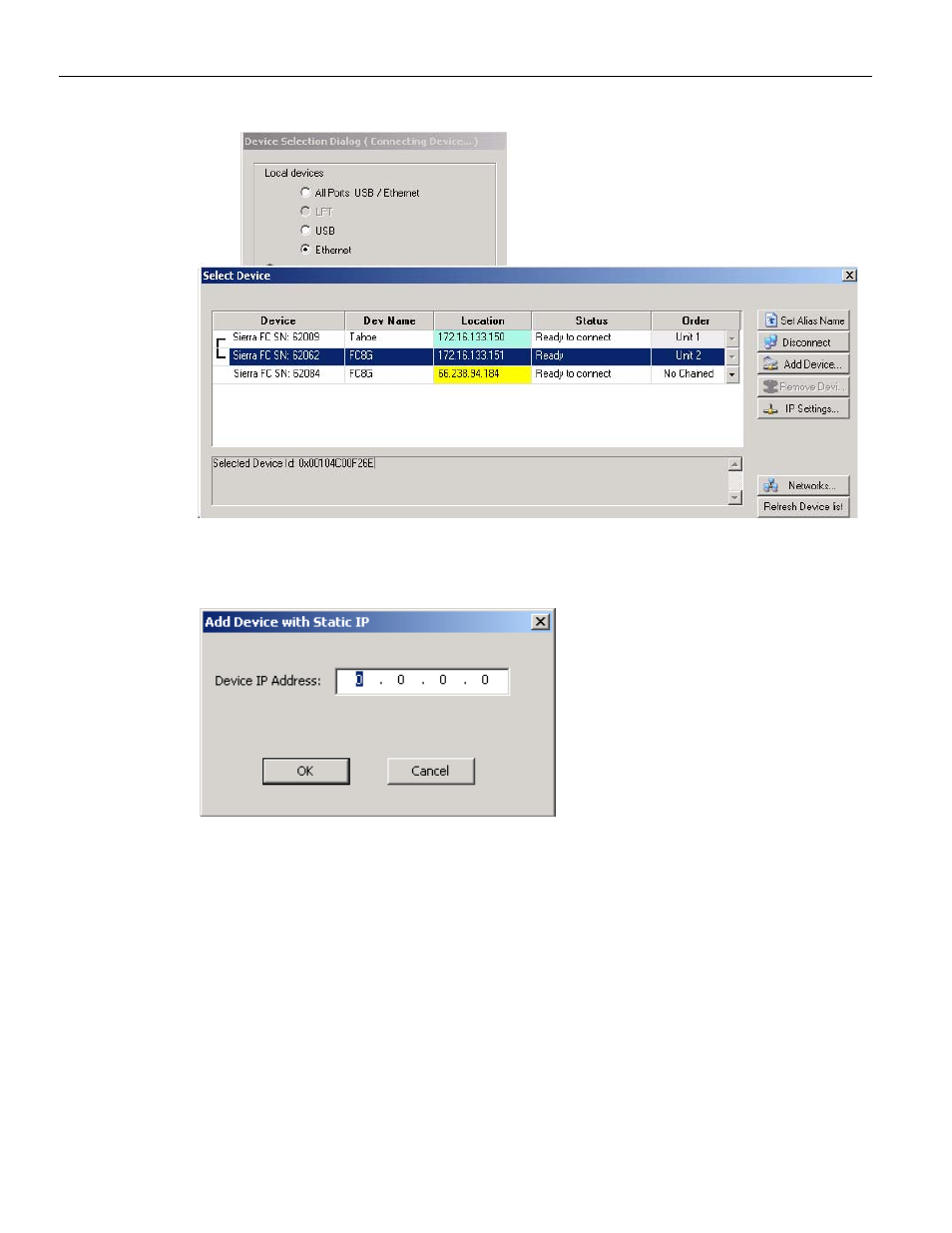

Figure 3.86: Select Device Dialog to Add New Device
4. The Add Device with Static IP displays. Enter the IP address to add the device.
Figure 3.87: Add New Device with Static IP Address
Once the IP address is added, the application will then send a connection request to
that IP address to connect to the SierraFC M8‐4 System.
Set Address Alias
Address Alias allows you to assign a meaningful name to each address to assist in
interpreting the results displayed in the sample view. To assign address names in an open
sample view, select Configuration > Set Address Alias (see
Figure 3.88 on page 252 ).
