Teledyne LeCroy Easy Mode (Pre‐Defined Setups)
124 SierraFC M8‐4 Protocol Analyzer User Manual
Add VSAN‐FICON Command‐Data
Double‐click VSAN‐FICON(Command‐Data) in the Patterns Library panel to open the
VSAN‐FICON Command Data dialog.

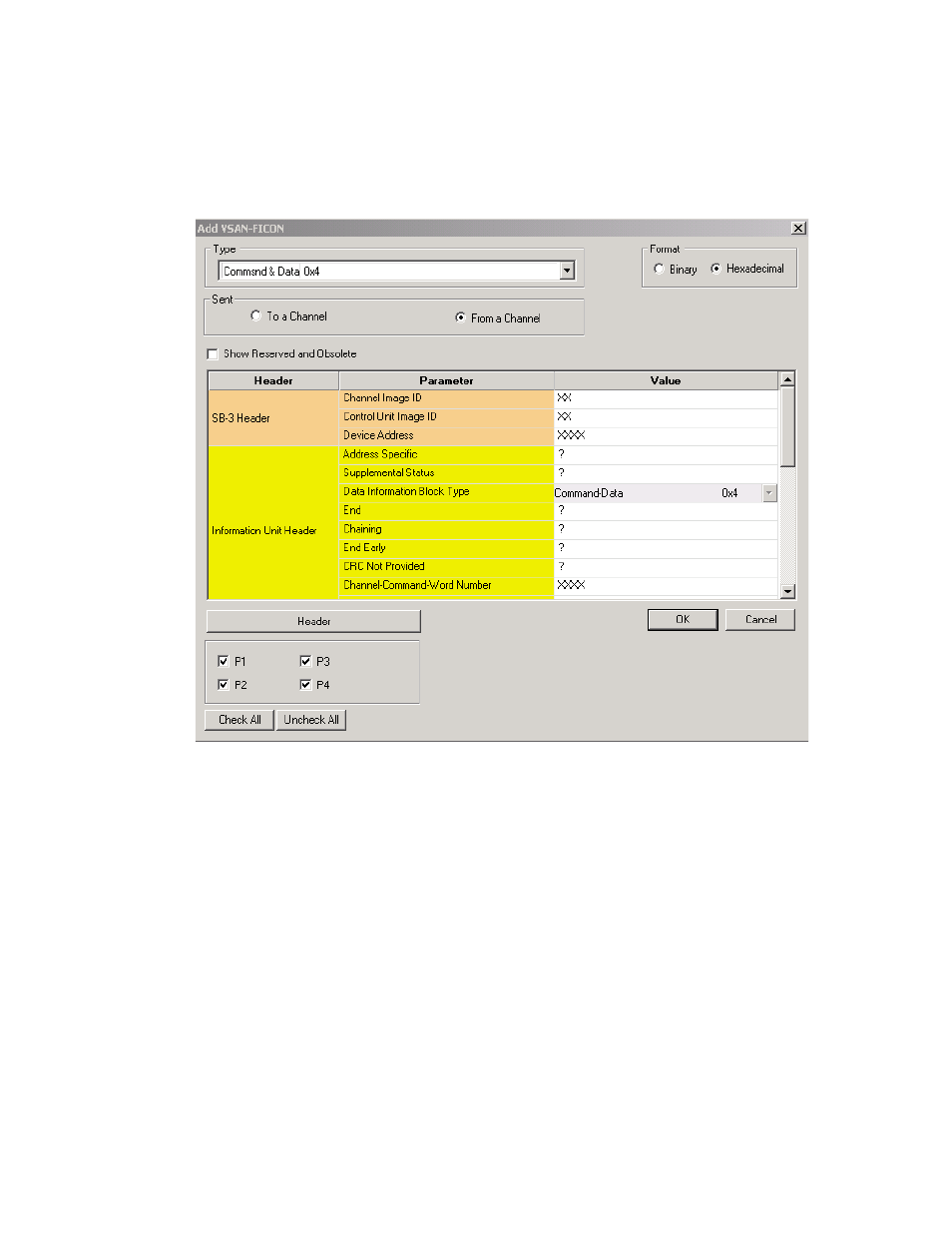

Figure 2.93: VSAN-FICON (Command Data) Dialog
The format can be Binary or Hexadecimal.
To select a Type click the dropdown list which has the following options:
 Any
 Data
 Command
 Status
 Control
 Command and Data
 Link Control
