Teledyne LeCroy Running Scenarios
314 SierraFC M8‐4 Protocol Analyzer User Manual

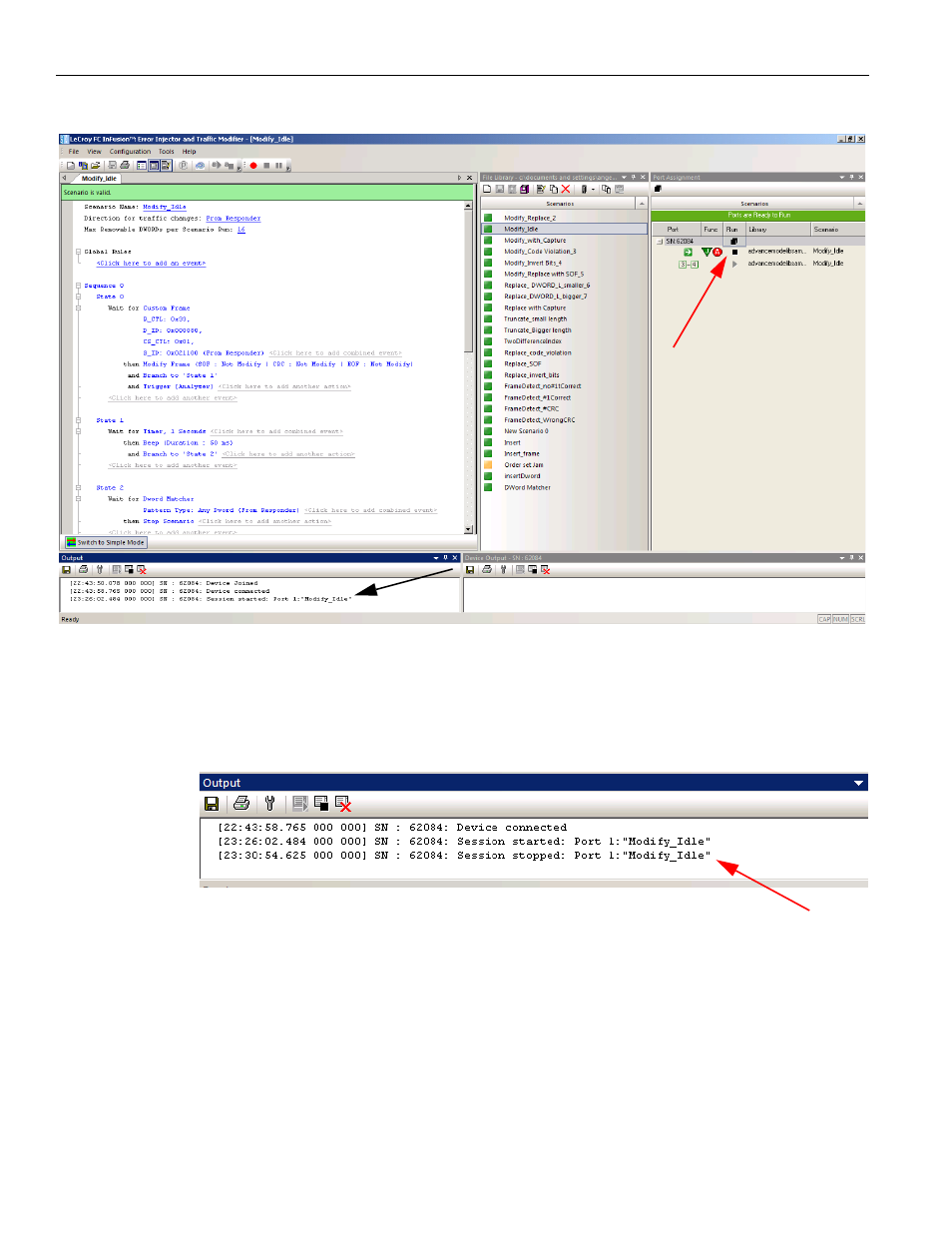

Figure 4.39: Modify_Idle Scenario Running
9. Once the Scenario is complete or stopped the Output panel will display it. The
Output Panel displays the Time, Device Serial Number, and the ports on which the
Session started, completed and/or stopped (see the following screen capture).
Figure 4.40: Output Panel Displaying Session Started and Stopped
