CrossSync Control Panel
The CrossSync Control Panel allows you to select analyzers for synchronization and
manage the recording process.
Launching the CrossSync Control Panel
To launch CrossSync from the FC Protocol Suite software application, select the ‘Launch
CrossSync Control Panel ‘entry in the ‘Project Setup’ menu (see the screen below). Or,
you can launch CrossSync from the ‘Start’ menu.

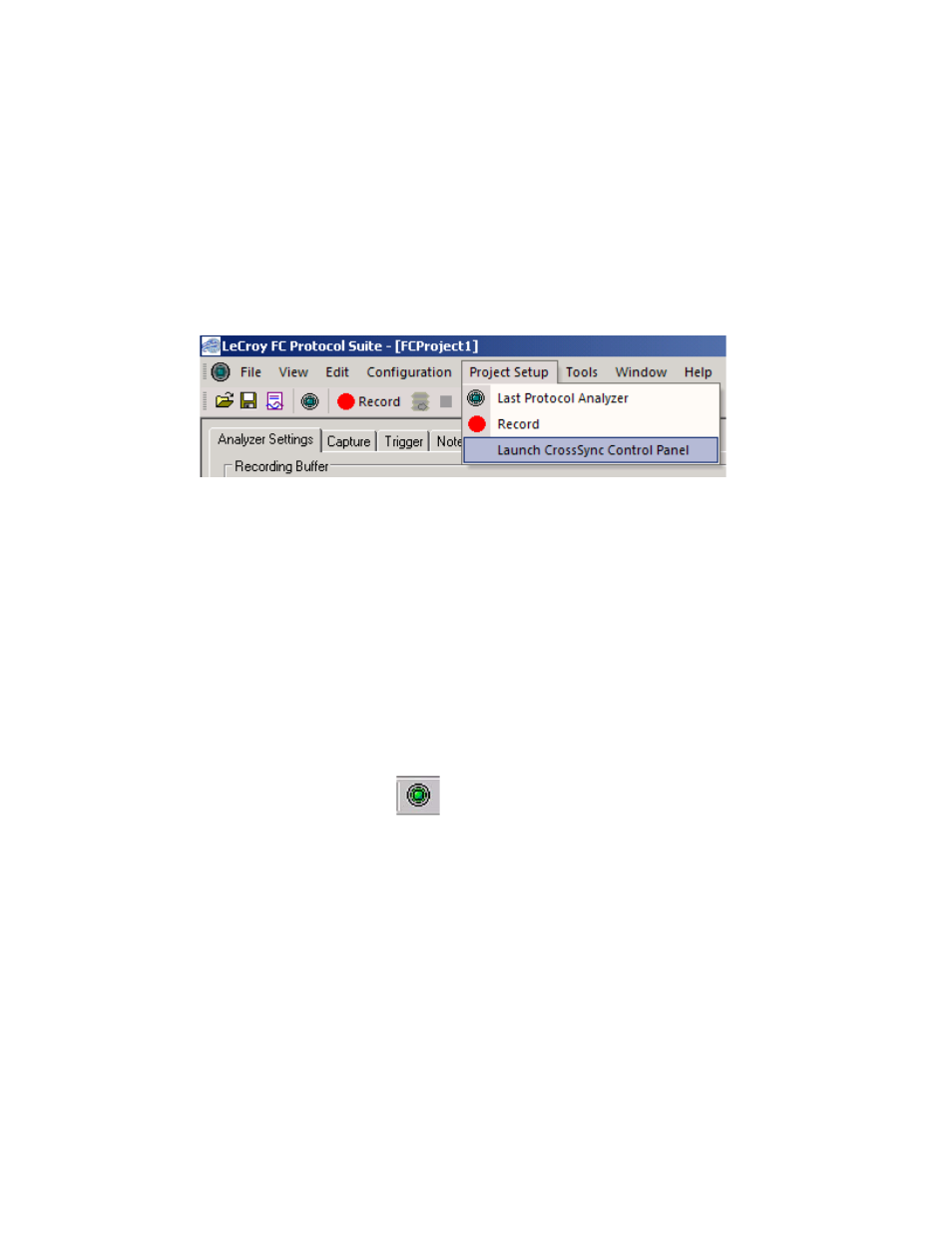

Figure 2.7: Launching CrossSync from the SierraFC M8-4 Protocol Suite Application
Please refer to the CrossSync Control Panel User Manual for more information.
Projects
You can define a new project, starting with the default project definition, or modify the
settings for the last project run.
New Default Project
To start a New project, select File on the main menu bar and choose Protocol Analyzer to
open a new project with default settings that you can modify (see
“Main Window” on
page 31 ).
Last Project
Clicking the Green button opens the last project run, so you can modify it.
Project File Types
Projects have the following file types:
 *.cfg Display Configuration file (in the System folder “Config” subfolder)
 *.fcc Protocol Analyzer/Capture Project/Viewer file
 *.fcs Sample file
 *.wsf Workspace file
