Getting Started Manual

922136-00 Rev A

89

B

For each input channel, touch its tab to set up persistence for that
channel.

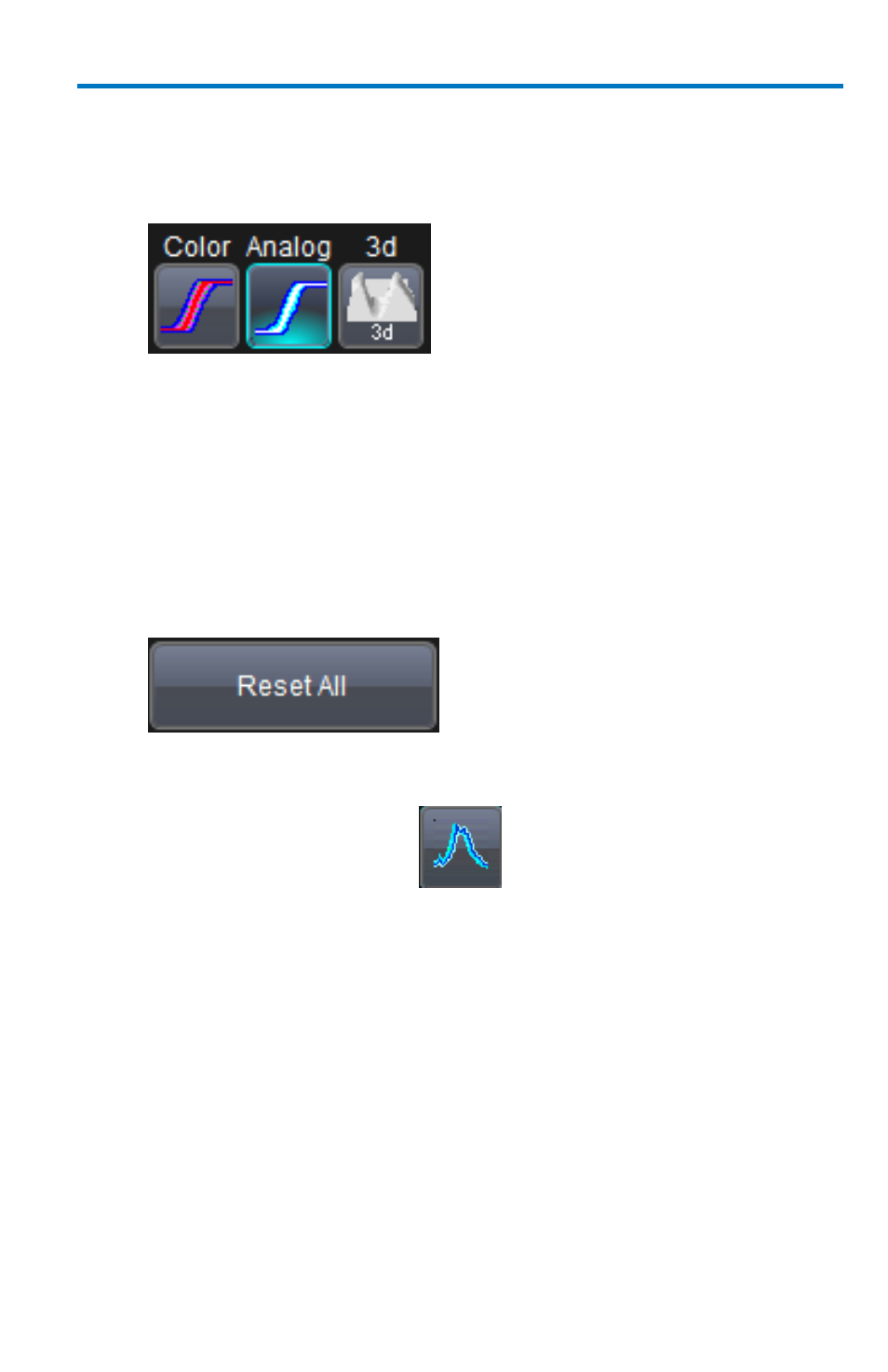

3. Touch one of the mode buttons.

4. Touch the Show last trace checkbox if you want the last trace

displayed.

5. Touch inside the Saturation data entry control and enter a whole

number integer,.

6. Touch inside the Persistence time data entry control and make a

selection from the pop-up menu.

7. If you want to return all input channel setups to their default

settings, touch the Reset All button.

WaveStream Display Mode

This fast viewing mode provides brightness-graded intensity with a decay
time similar to the action of phosphor on an analog screen.

WaveStream mode operates at up to 80 GS/s with an update rate of up to
several thousand waveforms/second for better capture of higher frequency
abnormal events.
