Turning on Channels and Traces
PLEASE NOTE THE FOLLOWING:

If you want to display each trace on its own grid automatically,
enable Autogrid by touching Display → Autogrid from the menu bar.

You can turn channels on and off using the software, for more
information see Vertical Overview
(on page 61 )

On the front panel, press a channel select button to display the trace
descriptor label for that input channel and turn on the channel.

Turn on a math function trace by touching Math → Math Setup...
from the menu bar. Touch the corresponding On checkbox to
activate the desired trace.


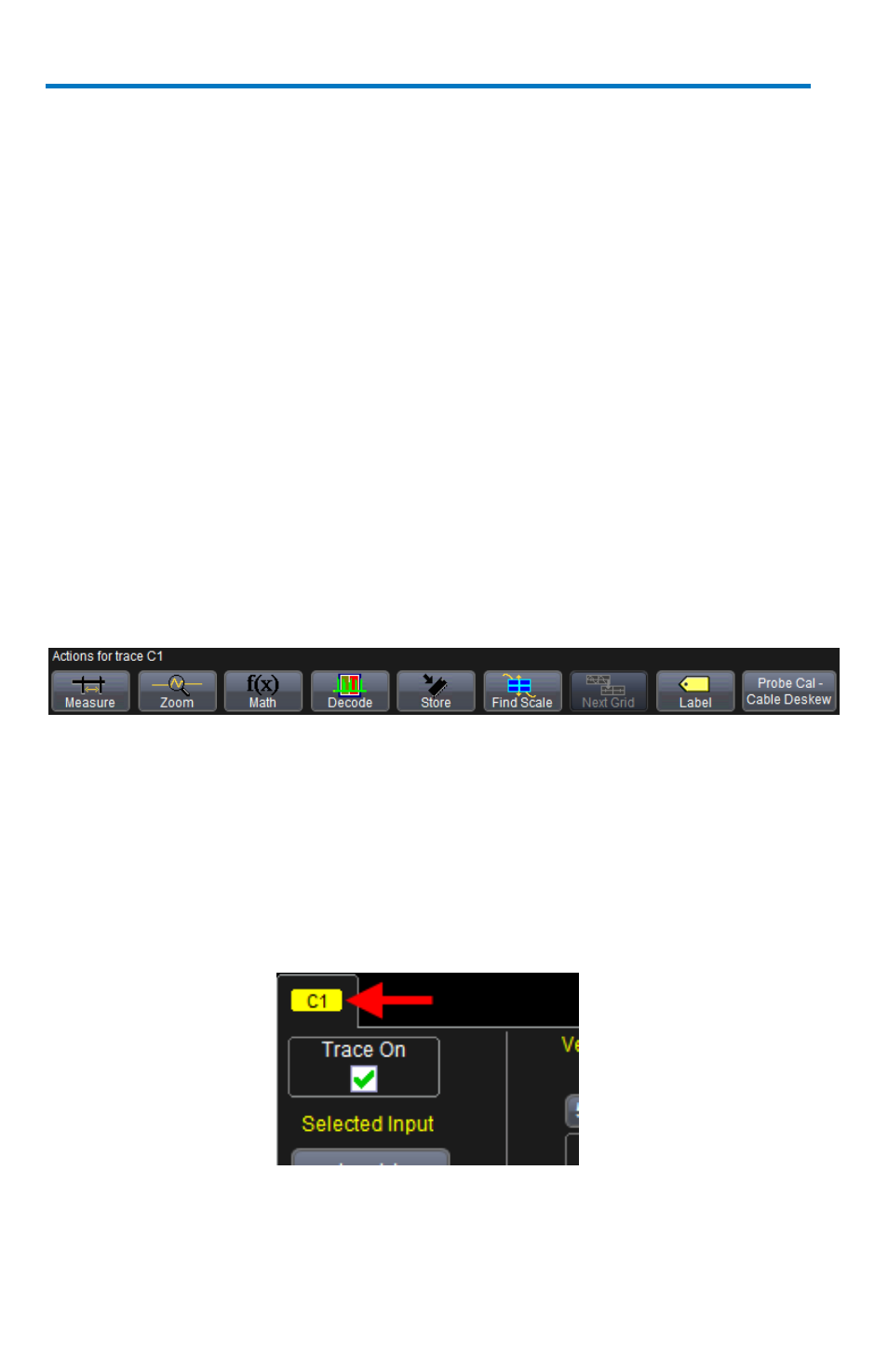

You can also quickly create traces (and turn on the trace label) for
math functions and memory traces, without leaving the Vertical
Adjust dialog, by touching the icons at the bottom of the Vertical
Adjust dialog.
Whenever you turn on a channel, math, or memory trace using either the
menu bar or trace descriptor label, the dialog at the bottom of the screen
automatically switches to the vertical setup or math setup dialog for that
selection.
You can configure your traces from here, including math setups.
The Trace Dialog is shown on the lower (dialog) portion of the screen. The
tab is labeled with the corresponding channel number as follows:
