WaveRunner 6 Zi and 12-Bit HRO

154

922136-00 Rev A

2. On the Use Calibration Output For section of the dialog, choose

Square, DC Level, or Off. If you want a 1 kHz, 1 V Square Wave,
touch the Set to 1 kHz, 1 V Square Wave button.

Additional controls are made available based on Square or DC Level
selections as follows:

If you selected Square on the Use Calibration Output For section of
the dialog, a Frequency data entry control is made available. You can
set a value using your preferred input control method.

If you selected Square or DC Level on the Use Calibration Output
For
section of the dialog, an Amplitude into 1 MΩ data entry control
is made available. Provide a desired value using your preferred input
control method.

A

UXILIARY

O

UTPUT

S

IGNALS

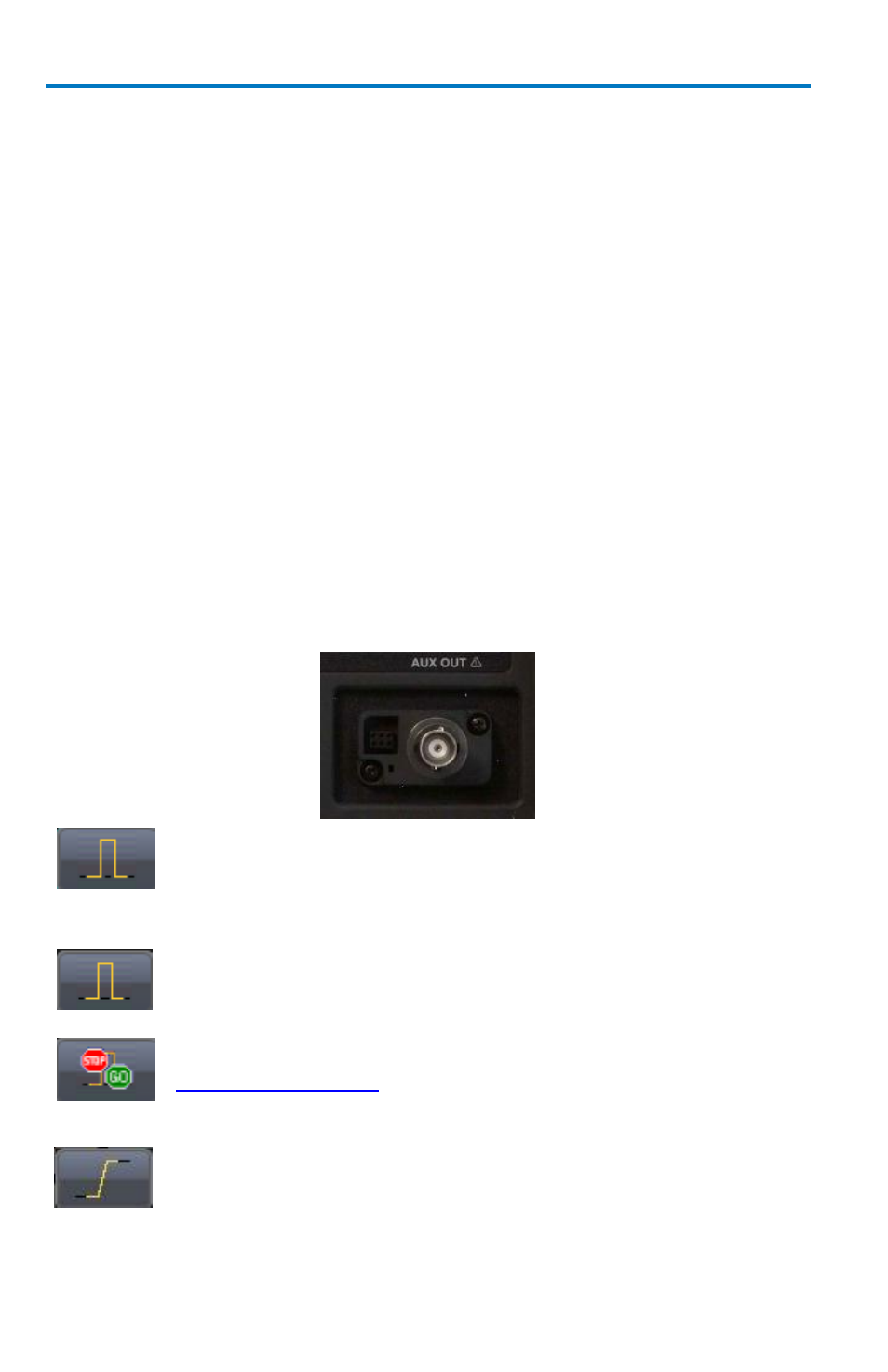

A calibration signal and the following additional signals can be output
through the connector labeled AUX OUT on your oscilloscope. Use the
Auxiliary Output to send the following signals to other instruments:

Trigger Enabled - This function can be used as a gating
function to trigger another instrument when the oscilloscope
is ready.

Trigger Out - This function can be used to trigger an external
oscilloscope.

Pass/Fail - Allows you to set a pulse duration (varied based on

your specific model, refer to datasheet specifications at

teledynelecroy.com

for details); generates a pulse when

pass/fail testing is active and conditions are met.

Fast Edge - Some models provide this signal output used to
deskew multiple channels. The Fast Edge connection varies
based on model and is either SMA or BNC.
