WaveRunner 6 Zi and 12-Bit HRO
38 922136-00 Rev A


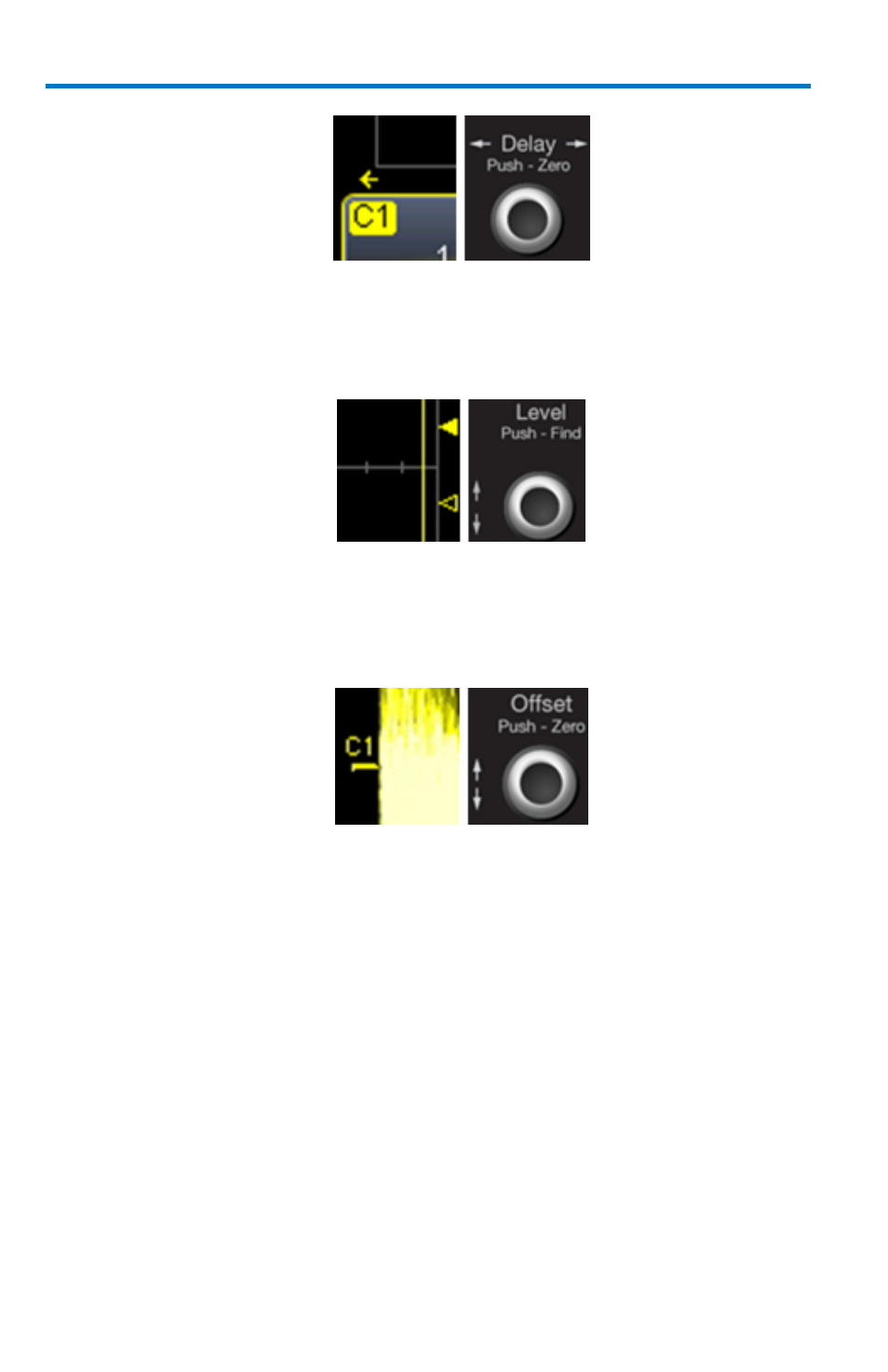

Trigger Level - This indicator is located at the right edge of the grid.
It tracks the trigger level as you reposition the trace up or down, or
change scale. When triggering is stopped, a hollow arrow indicates
where the new level ends up when triggering resumes.
Push the LEVEL knob to reset the level to 50%.

Zero Volts Level - This indicator is located at the left edge of the
grid. Change the zero volts level by turning the vertical OFFSET
knob.
Push the knob to reset the indicator to the middle of the grid.
Signal Display Grid Pop-Up Menu
On the Signal Display Grid, the Pop-up menu provides assistance while using the
oscilloscope.
Clicking on a waveform opens a pop-up menu. From this pop-up menu, you
can perform the following functions:

Open the Setup dialog for the trace

Turn the trace descriptor label off

Open the Math dialog for the trace

Open the Measure dialog for the trace

Annotate the selected trace
