Getting Started Manual

922136-00 Rev A

63

B

5. Turn the V

ERTICAL

O

FFSET

adjust front panel knob directly above the

channel button whose waveform you want to move vertically. Or
you can touch inside the Offset field and type in a value on the pop-
up keypad. To set the vertical offset to zero, touch the Zero button
directly below the Offset field.

6. Touch inside the Coupling control and select a coupling mode from

the pop-up menu.

7. Touch inside the Bandwidth control and provide a Bandwidth Limit

value using your preferred input control method. Additional
information on using the touch screen controls can be found in the
Dialog Area

(on

page 42

)

.

8. Touch inside the Probe Atten. data entry control if you want to set

the attenuation manually, and provide a value using your preferred
input control method. Additional information on using the touch
screen controls can be found in the Dialog Area

(on

page 42

)

.

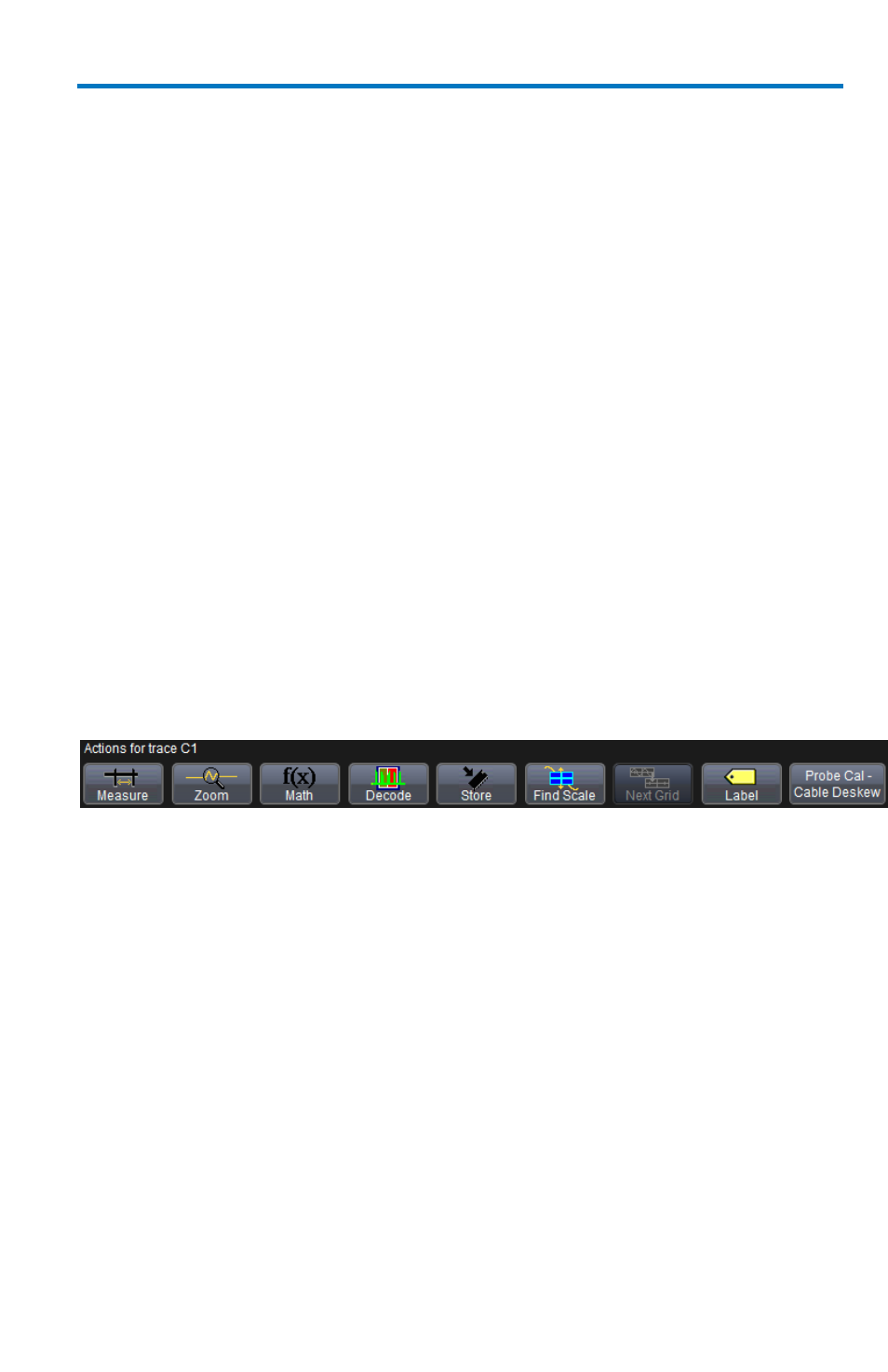

Actions for Trace C1 Buttons

Actions for Trace C1 buttons provide quick access to various functions for
your respective channel. The following functions are available:

Measure - Turn on a Measurement trace. Choose a measurement
parameter from the Measurement pop-up window to determine a
wide range of waveform properties. For example, you can use
measurement parameters to automatically calculate many attributes
of your waveform, like rise-time, rms voltage, and peak-to-peak
voltage.

Zoom - QuickZoom automatically displays a zoom of the channel or
trace on a new grid.

Math - Turn on a Math trace. Choose a Math function from the
Math pop-up window.

Decode - Shows the main Decode dialog.

Store - Transfers the current trace into a corresponding memory
trace.
