Front panel controls – Teledyne LeCroy WaveRunner 6 Zi and 12-Bit HRO Getting Started Manual User Manual
Page 26
WaveRunner 6 Zi and 12-Bit HRO
18
922136-00 Rev A
Front Panel Controls
Note: Many specific Front Panel Controls directly correspond with Screen Layout
Controls. For example, the Print front panel general control button corresponds
with the Hardcopy function at Utilities → Utilities Setup → Hardcopy.

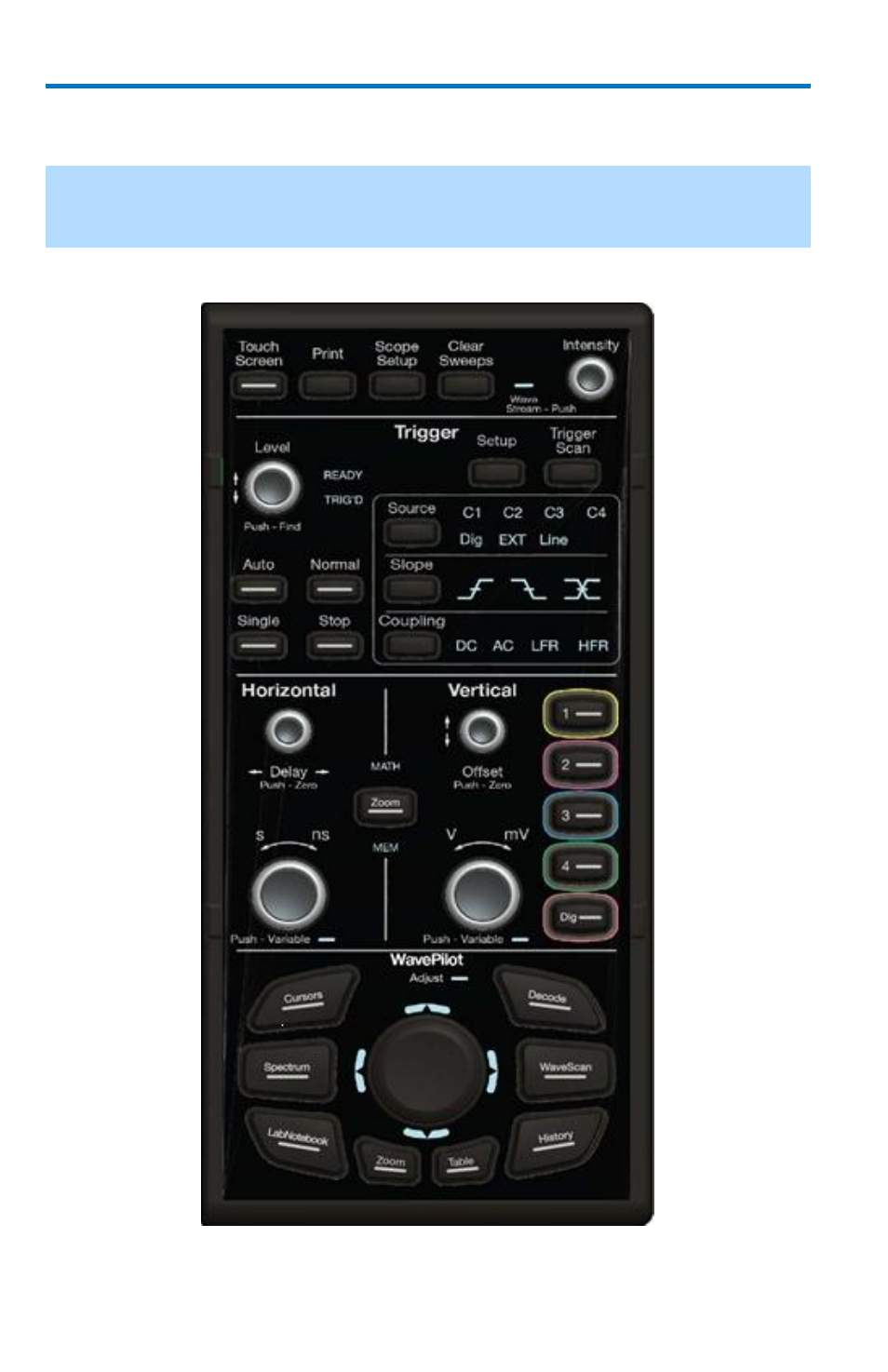

The following picture shows the Front Panel Control.
Front panel for WaveRunner 6 Zi and 12-Bit HRO oscilloscopes.
