Getting started manual – Teledyne LeCroy WaveRunner 6 Zi and 12-Bit HRO Getting Started Manual User Manual
Page 19

Getting Started Manual
922136-00 Rev A
11
B
T
ILTING THE
D
ISPLAY
The display can be tilted (while in either Landscape or Portrait mode) into
Upward or Downward positioning for convenience.
Tilt the display by firmly grasping the far left side of the display and the far
right side of the front panel. Use your wrists to forcibly tilt the display by
pushing the upper-portions forward (to tilt upward) or the lower-portions
backward (to tilt downward) until the desired positioning is reached.

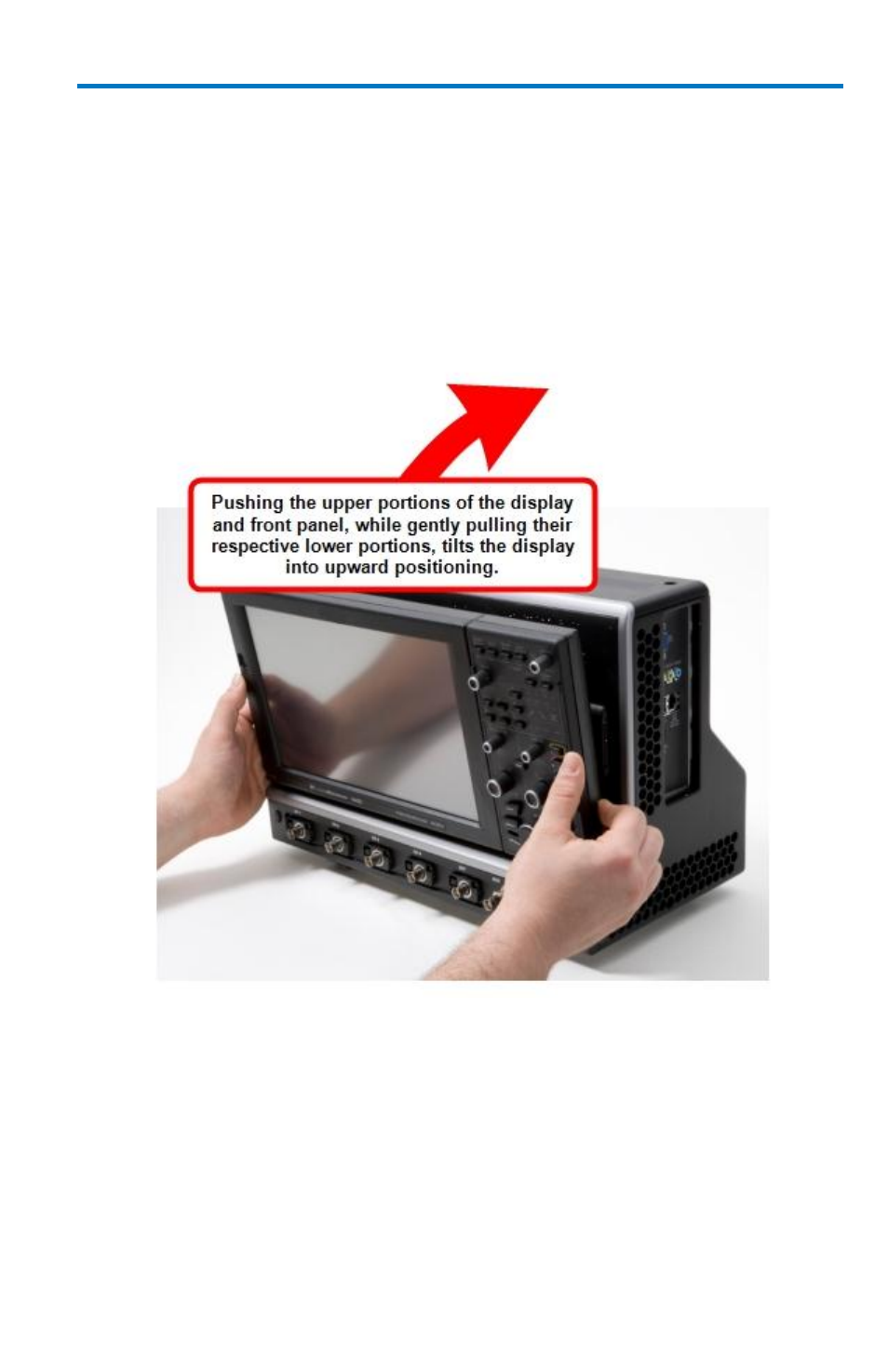

Tilting the display by pushing the upper-portions of the display/front panel
forward - tilting the display from downward to upward positioning.
