WaveRunner 6 Zi and 12-Bit HRO

158

922136-00 Rev A

Preferences

Preference Setup Overview

A variety of customizable preferences can be set on your instrument.
Access Preferences by touching Utilities → Preference Setup... on the
menu bar. The main Preferences

(below)

dialog is shown by default with the

following additional, tabbed dialogs also available:

Acquisition

(on

page 159

)

E-Mail

(on

page 161

)

Color

(on

page 162

)

Miscellaneous

Remaining topics in this section cover these dialogs in a bit more detail.

Preferences

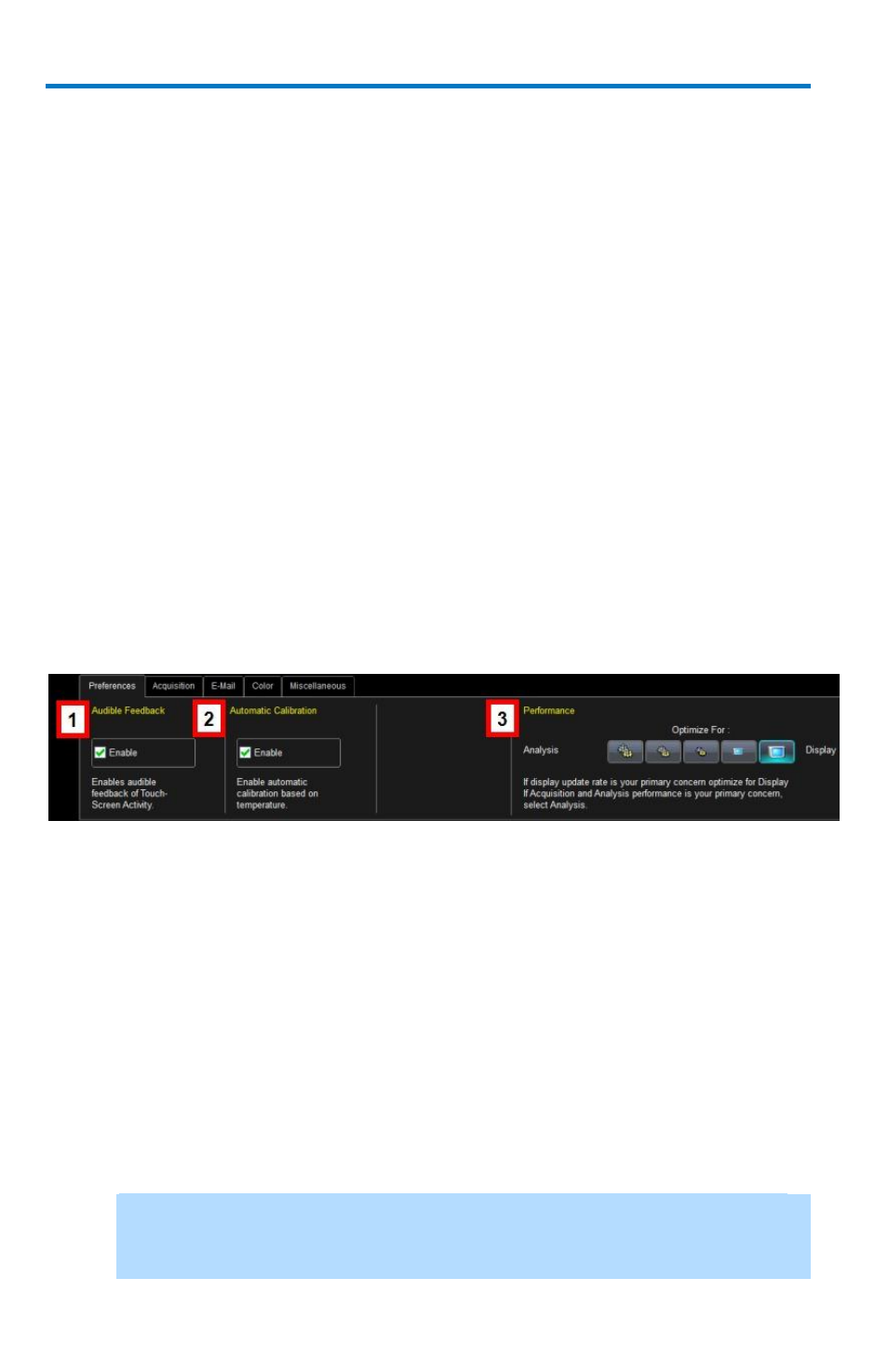

Selecting Utilities → Preference Setup... shows the main Preferences
dialog by default. The following controls are available from this dialog:

Numbered sections on this dialog correspond with the following
explanations.

1. You can choose to have audible confirmation each time you touch a

screen or front panel control by marking the Enable checkbox on the
Audible Feedback section of the dialog. With Audible Feedback
enabled, the oscilloscope beeps each time you touch the screen or a
front panel control.

2. You can choose to have your instrument automatically re-calibrate

itself whenever there is a significant change in ambient temperature
by marking the Enable checkbox on the Automatic Calibration
section of the dialog.

Note

: If you do not enable this option, the oscilloscope re-calibrates only

at startup and whenever you make a change to certain operating
conditions.
