Each Recall button is labeled with a corresponding setup storage slot. If a
setup is stored, SetupX is shown along with the date/time of the save,
otherwise, the slot is labeled Empty.
OR
R
ECALLING
S
ETUP
(
S
)
D
IRECTLY FROM A
F
ILE
Recall your setup(s) directly from a file by using controls on the Recall
From File section on the right side of the dialog. Touch inside the Recall
panel from file data entry control and provide a path to the destination
folder. Or touch Browse to navigate to the destination folder. Finally, touch
the Recall Now button.
Recalling Default Settings
Your instrument's default settings can be recalled at any time using the
Recall Default button.
Saving and Recalling Waveforms
Saving Waveforms
The Save Waveform dialog is used to save displayed waveforms to either a
memory trace or to text or binary file formats.
Access the Save Waveform dialog by either selecting File → Save
Waveform from the menu bar or clicking the Save Waveform button on
the main Save/Recall dialog.

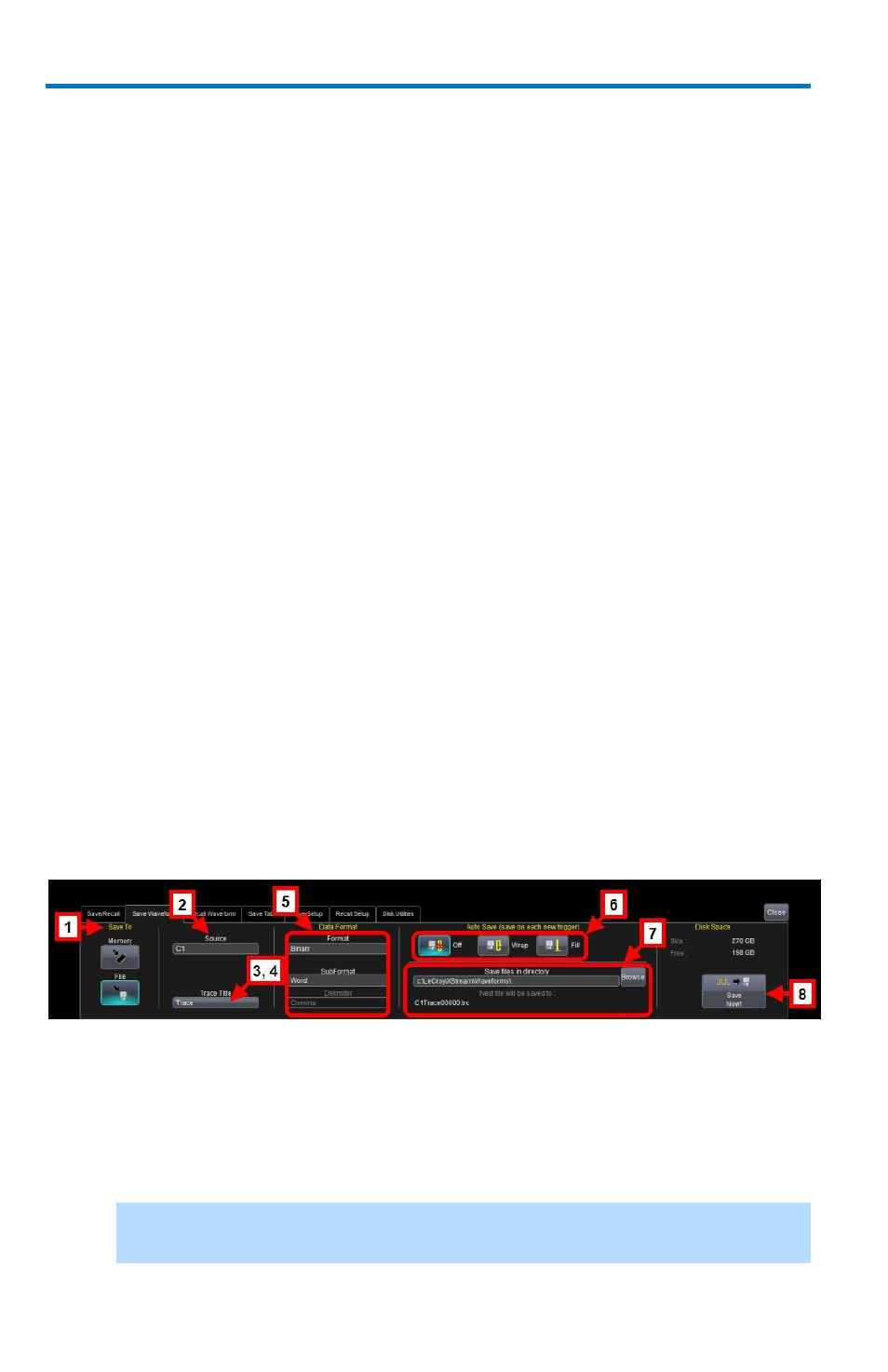

Use the numbered sections of this Save Waveform dialog, which
correspond with the following explanations, to properly save your
waveform(s).
1. Select either Memory or File by touching either respective button on
the Save To portion of the dialog.
Note
: When
Memory
is selected, only
Source
and
Destination
controls
are shown on the Save Waveform dialog. When
File
is selected, many
