Getting Started Manual

922136-00 Rev A

109

B

S

INGLE

P

ARAMETER

H

ISTOGRAM

S

ETUP

U

SING

M

ATH

Access the main Math dialog by selecting Math → Math Setup... on the
menu bar.

There are two ways to select your math operator during setup. They only
differ in the order of the steps.

Using the Fx Buttons on the Math Dialog - After directly touching an

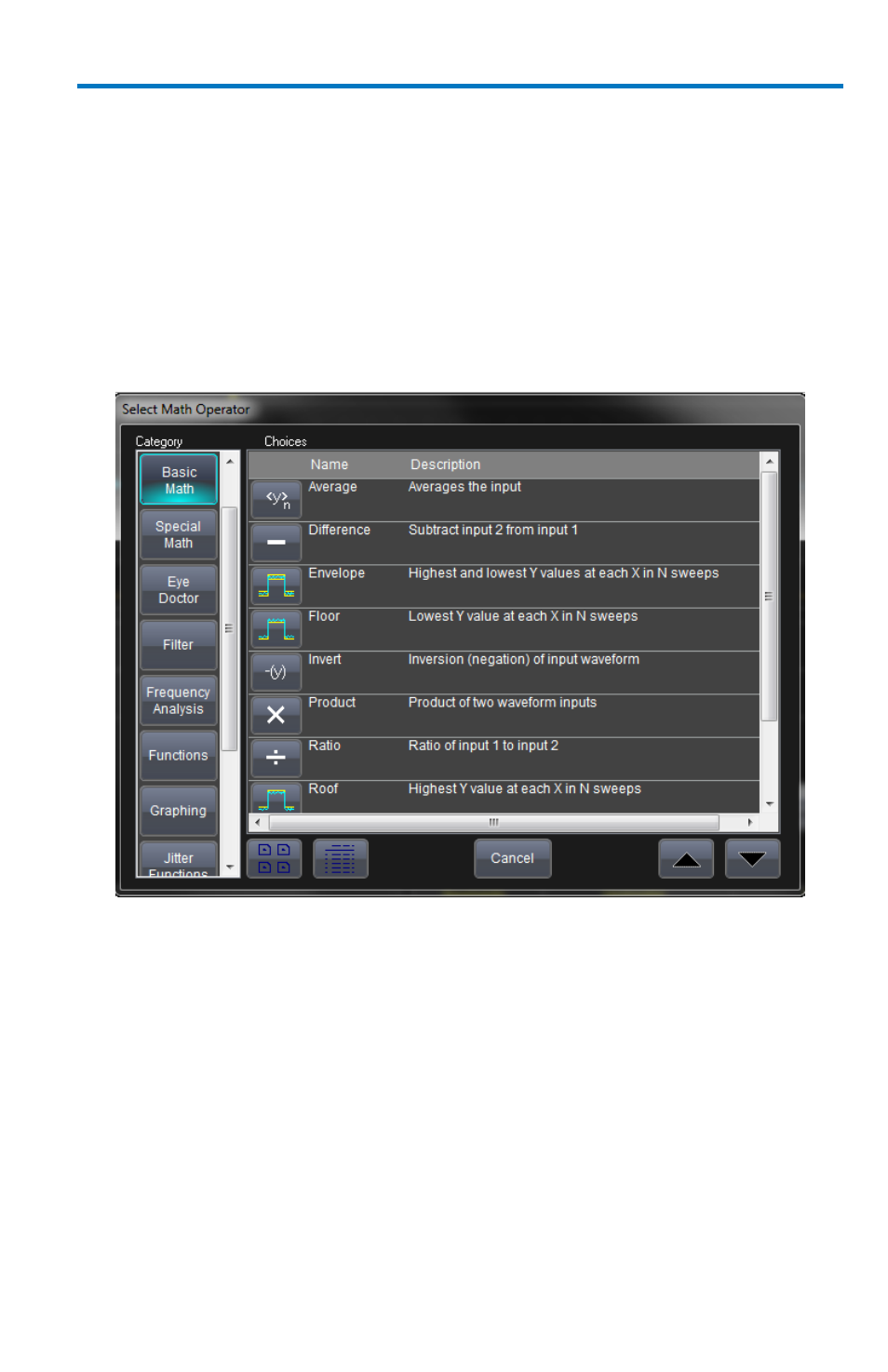

Fx button on the Math dialog, the Select Math Operator pop-up is
shown.

Math functions are categorized into Basic and Special.

Using a Corresponding Fx Tab/Dialog - After directly accessing a
corresponding Fx dialog, touch the Operator control and the Select
Math Operator
pop-up is shown.

Regardless of how you performed the previously described initial steps, at
this point access your corresponding Fx dialog if you want to change other
setup items as follows:
