Getting Started Manual

922136-00 Rev A

35

B

Display Dashboard

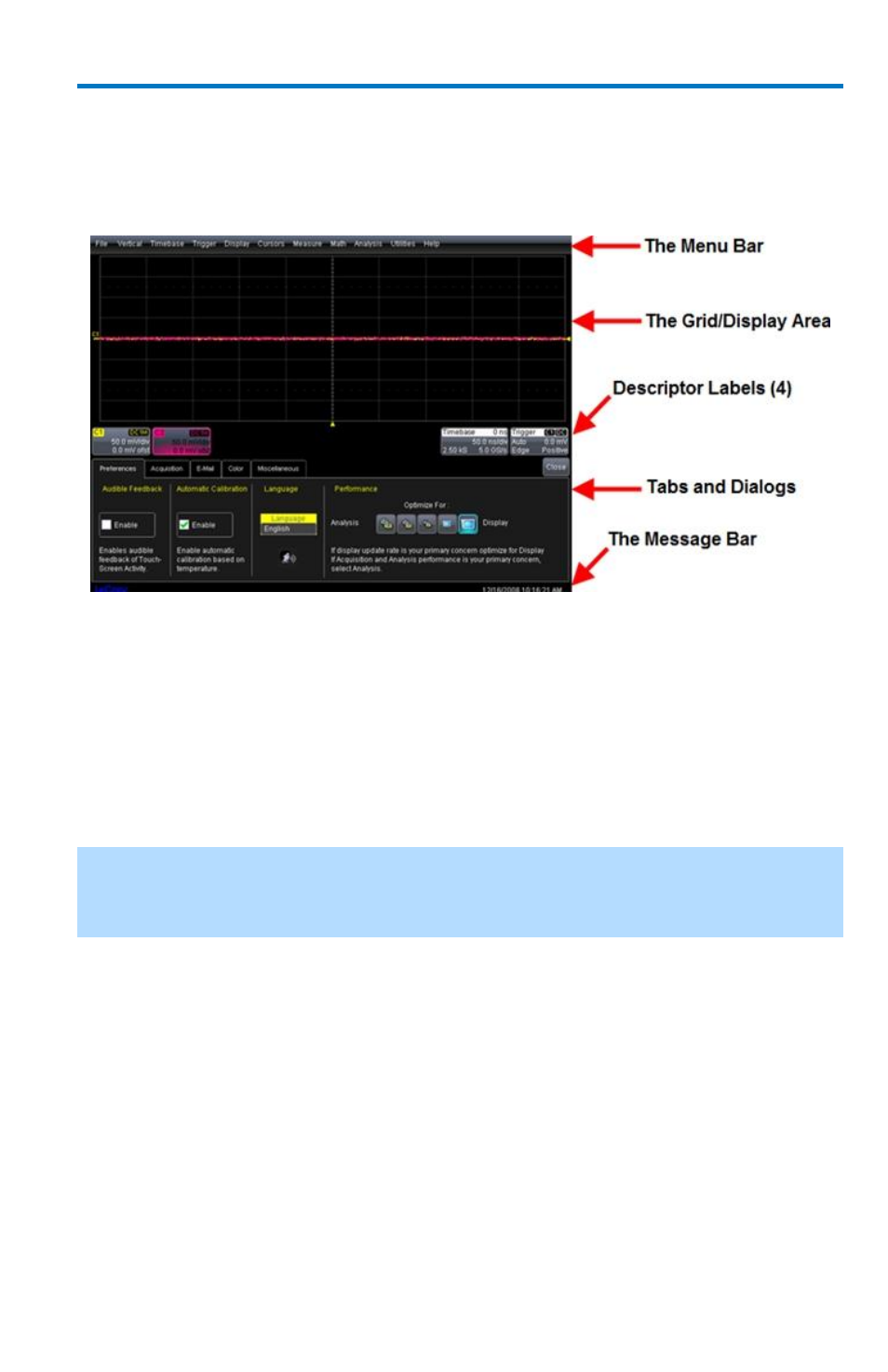

Screen Layout, Groupings, and Controls

The instrument's screen is divided into the following main sections:

Menu Bar

Signal Display Grid

Descriptor Labels

Dialog(s)

The Message Bar

Note

: Many front panel controls directly correspond with screen layout controls.

For example, the

Print

front panel general control button corresponds with the

Hardcopy

function set from

Utilities → Utilities Setup → Hardcopy

.

Menu Bar

The top of the screen contains a menu bar of commonly used functions.
Whenever you touch one of these buttons and make a selection from its
drop-down menu, the dialog area at the bottom of the screen displays the
corresponding dialog.

Specific Menu Bar functions are referenced using arrow-separated path
descriptions. For example, the Save Setup function is referenced as File →
Save Setup...
.

PLEASE NOTE THE FOLLOWING:
