WaveRunner 6 Zi and 12-Bit HRO
104 922136-00 Rev A
T
URNING
O
FF
H
ELP
M
ARKERS

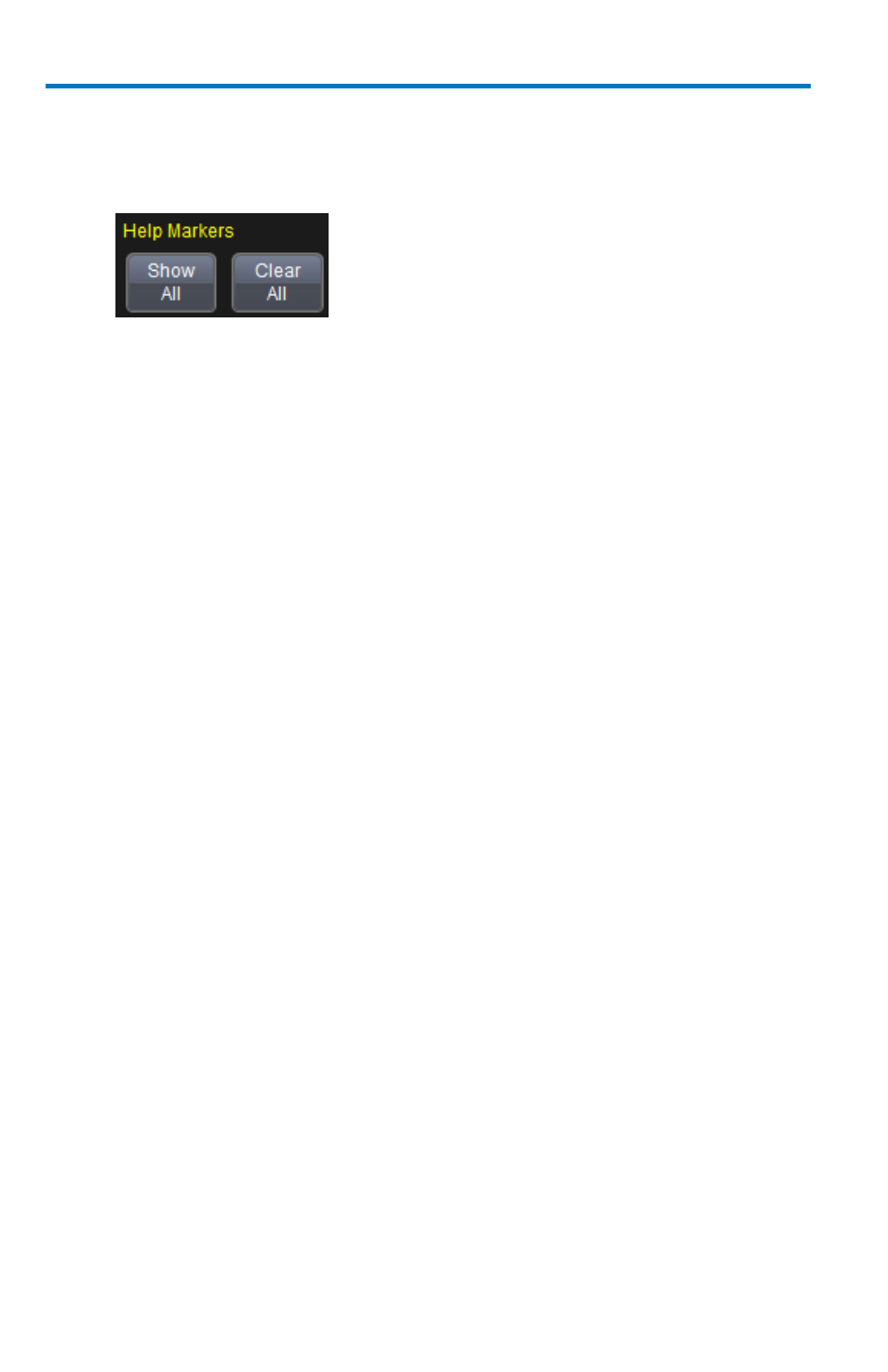

1. Touch the Clear All button to turn off Help Markers for all
parameters.
2. Turn off Help Markers for individual parameters by touching the Px
tab for the parameter in question. Then uncheck the AlwaysOn
checkbox. When you close this dialog, the Help Markers for this
parameter are no longer shown.
Measurement Parameter Analysis
Overview
Teledyne LeCroy provides a variety of unique capabilities for advanced
measurement parameter analysis. Most Teledyne LeCroy oscilloscopes
calculate measurements for all instances in the acquisition. This provides
the ability to rapidly and thoroughly analyze a long memory acquisition and
calculate thousands or millions of parameter values, or find anomalous
measurements. A variety of views are then provided allowing quick and
easy measurement value understanding, as follows:

Histograms provide a view of the measurement parameter
distribution. See Create and View a Histogram
(on page 106 ) .

Tracks provide a time-correlated view of a measurement parameter
compared to other acquired channels or calculated math traces. A
common usage for track is to observe the modulation of a signal,
such as amplitude, frequency, or pulse width modulation. See
Creating a Track View
(on page 113 ) .

Trends provide a view of the measurement parameter over an
extended period of time and over multiple acquisitions. See Creating
and Viewing a Trend
(on page 112 ) .

Pass/Fail Testing (on page 114 ) allows definition of the normal or
abnormal measurement parameter value with a definable pass/fail
action alerting the operator when a condition is met.
