Zooming a single channel – Teledyne LeCroy WaveRunner 6 Zi and 12-Bit HRO Getting Started Manual User Manual
Page 100

WaveRunner 6 Zi and 12-Bit HRO
92
922136-00 Rev A

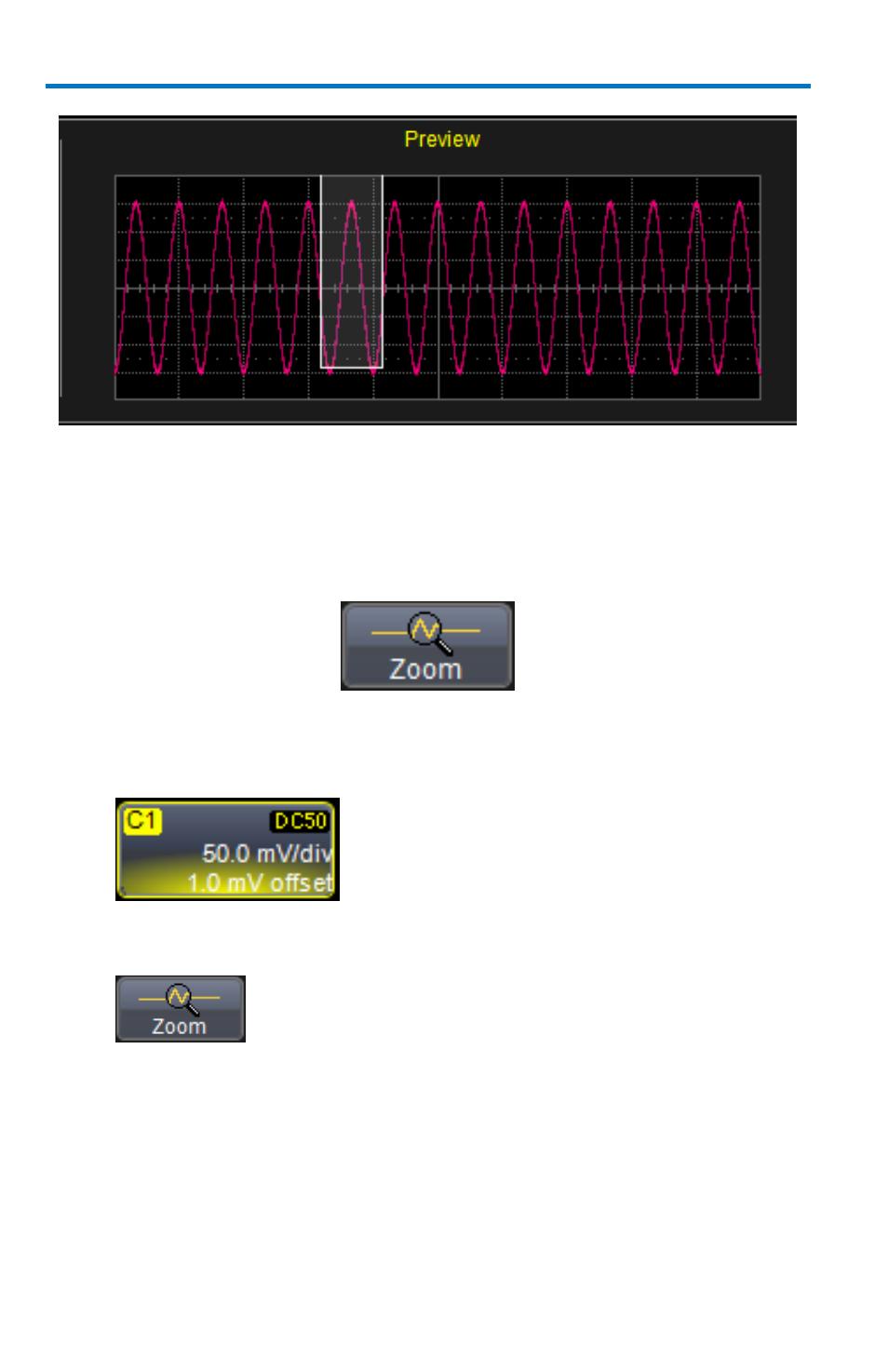

Zooming a Single Channel
The Zoom button appears as a standard button at the bottom of the
channel Cx Vertical Adjust setup dialog for you to create a zoom trace of
your input waveform.
1. On the menu bar, touch Vertical → Channel X Setup....
OR
Touch the channel trace descriptor label for a displayed channel.
2. Touch the Zoom
at the bottom of the
Cx Vertical Adjust
dialog. A zoom
trace (one of Z1 to Z4) is created for the selected channel.
3.
Vary the degree of zoom by touching the newly created
Zx
trace label. The
setup dialog for the zoom (Z1 to Z4) opens. It shows
the current
horizontal and vertical zoom factors.
4. If you want to increase or decrease your horizontal or vertical zoom
in small increments, touch the Var. checkbox to enable variable
zooming. Now with each touch of the zoom control buttons, the
degree of magnification changes by a small increment.
