Rotating and Tilting the Display
The display panel allows for Rotation and Tilting adjustments. These
adjustments allow you to position your instrument with unmatched
versatility.
Rotate and Tilt your display using the following instructions:
Note
: Your oscilloscope should always be firmly planted on a solid supporting
surface at all times.
R
OTATING THE
D
ISPLAY
Rotate the display by firmly grasping the left side of the display. Use your
thumb to push upward on the release switch (on the front-left side of the
display), and then use your wrist to forcibly rotate the display in an
upward, clockwise twisting motion until the display locks into portrait
position.

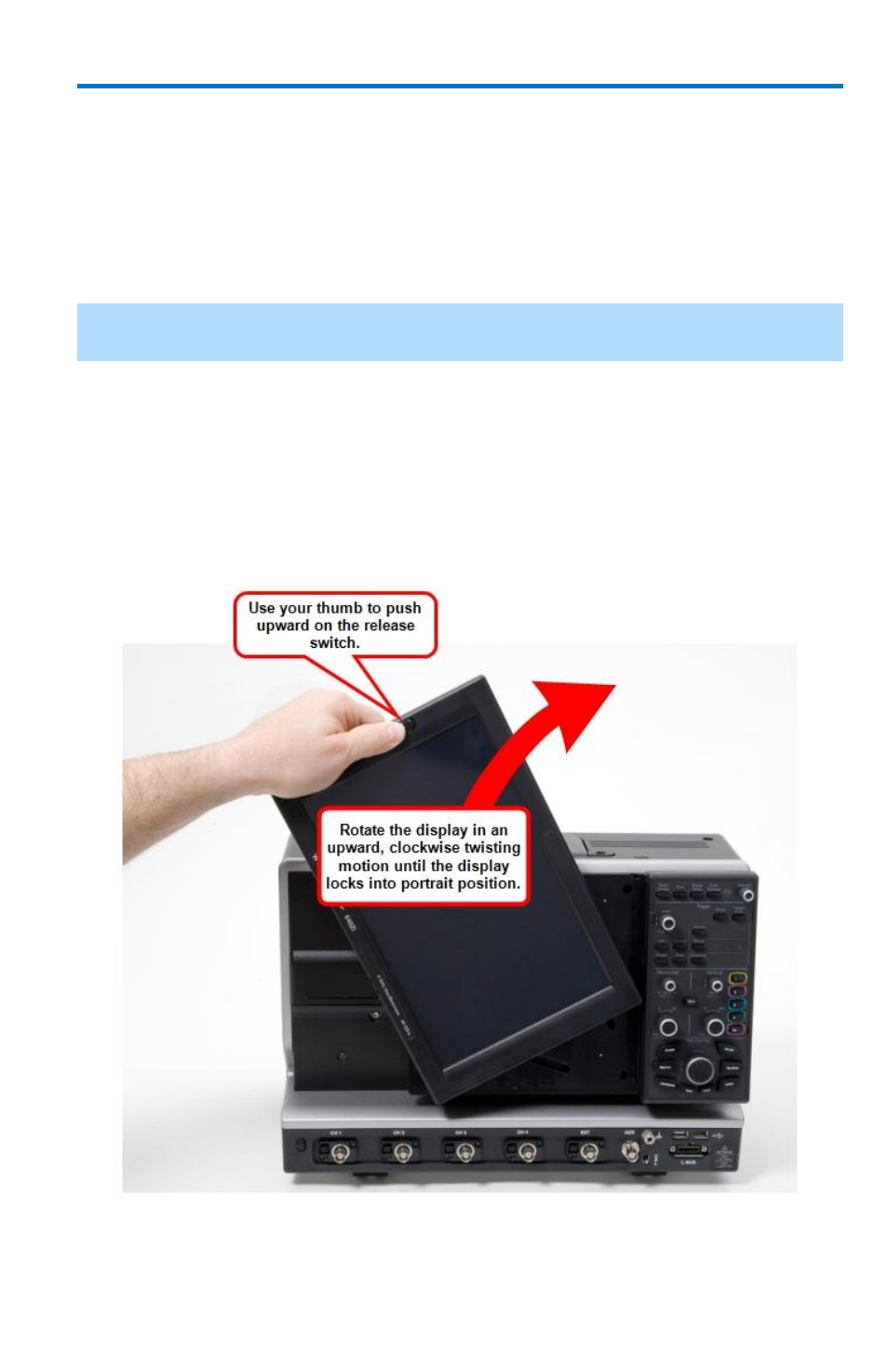

Rotating the display from landscape (horizontal) to portrait (vertical) positioning.
