WaveRunner 6 Zi and 12-Bit HRO

26

922136-00 Rev A

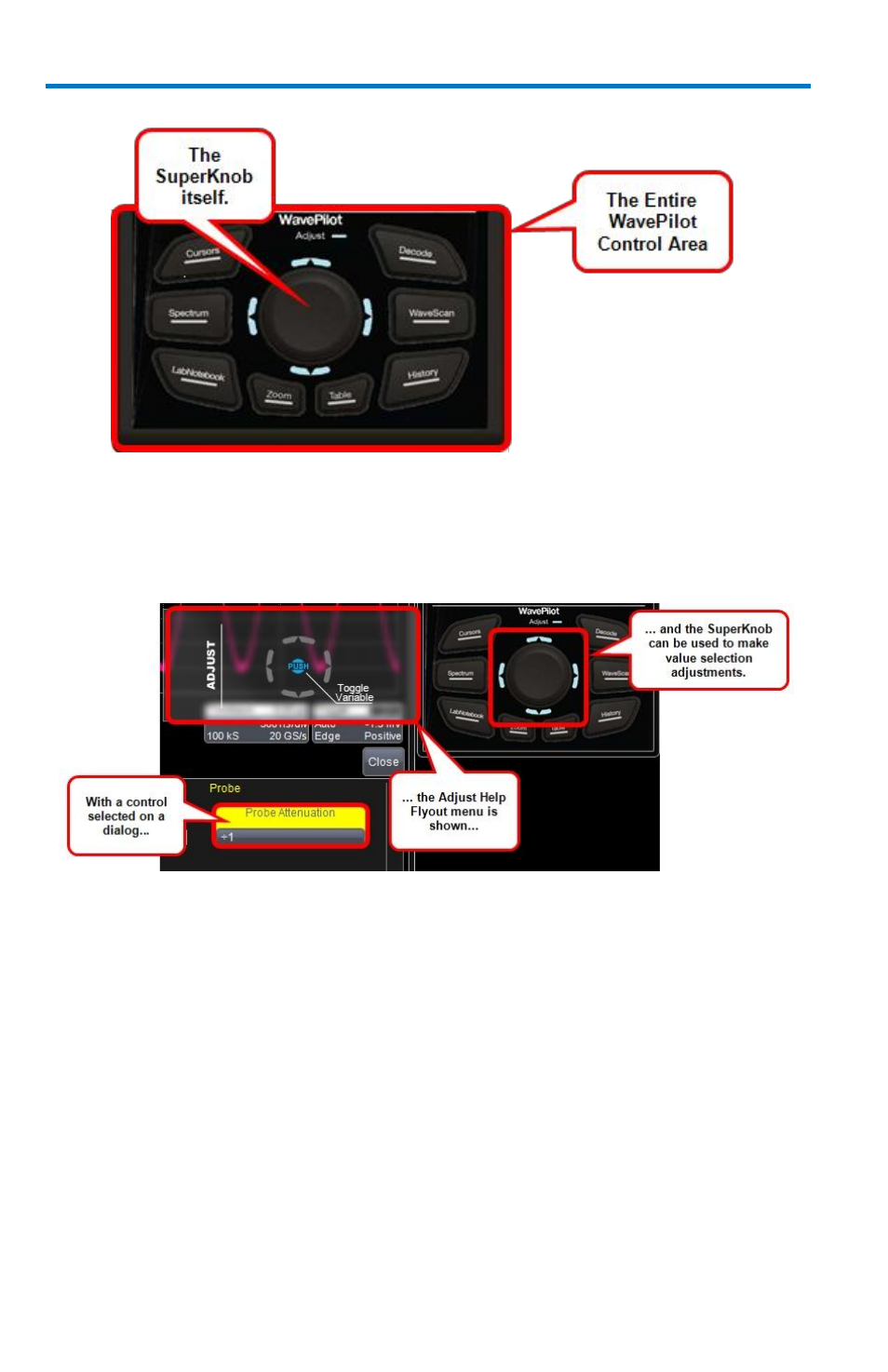

The SuperKnob shown on the WavePilot Control Area.

S

UPER

K

NOB

F

IELD

C

ONTROL AND THE

A

DJUST

H

ELP

F

LYOUT

M

ENU

Whenever you access a non-text entry or file browsing control on a dialog,
the Adjust Help Flyout menu is shown.

The Probe Attenuation control value being changed using the SuperKnob.

Control values can be adjusted using the touch screen, a connected mouse,
or by use of the SuperKnob. Turning the SuperKnob moves through
available control values and, as indicated by the Help Flyout menu, pressing
the SuperKnob provides Toggle Variable functionality; meaning, fine and
coarse adjustments (if available for the particular control) may be selected
for use.

The WavePilot Control Area provides powerful control of Cursors, Decode,
WaveScan, History, LabNotebook, and Spectrum by their respective
function buttons on the front panel. Based on the function button selected,
additional functions are then available on the SuperKnob.
