Getting Started Manual

922136-00 Rev A

107

B

Single Parameter Histogram Setup

Setup a single parameter histogram can be done from Measure or Math
dialogs. The following sections demonstrate both methods.

S

INGLE

P

ARAMETER

H

ISTOGRAM

S

ETUP

U

SING

M

EASURE

Touch Measure → Measure Setup... on the menu bar to access the
Measure dialog. The My Measure button should be selected by default on
the Measure dialog.

There are two ways to select parameters when setting up your
measurement. They only differ in the order of the steps.

Using the Px Buttons on the Measure Dialog - After directly
touching a Px button on the Measure dialog, the Select
Measurement
pop-up is shown.

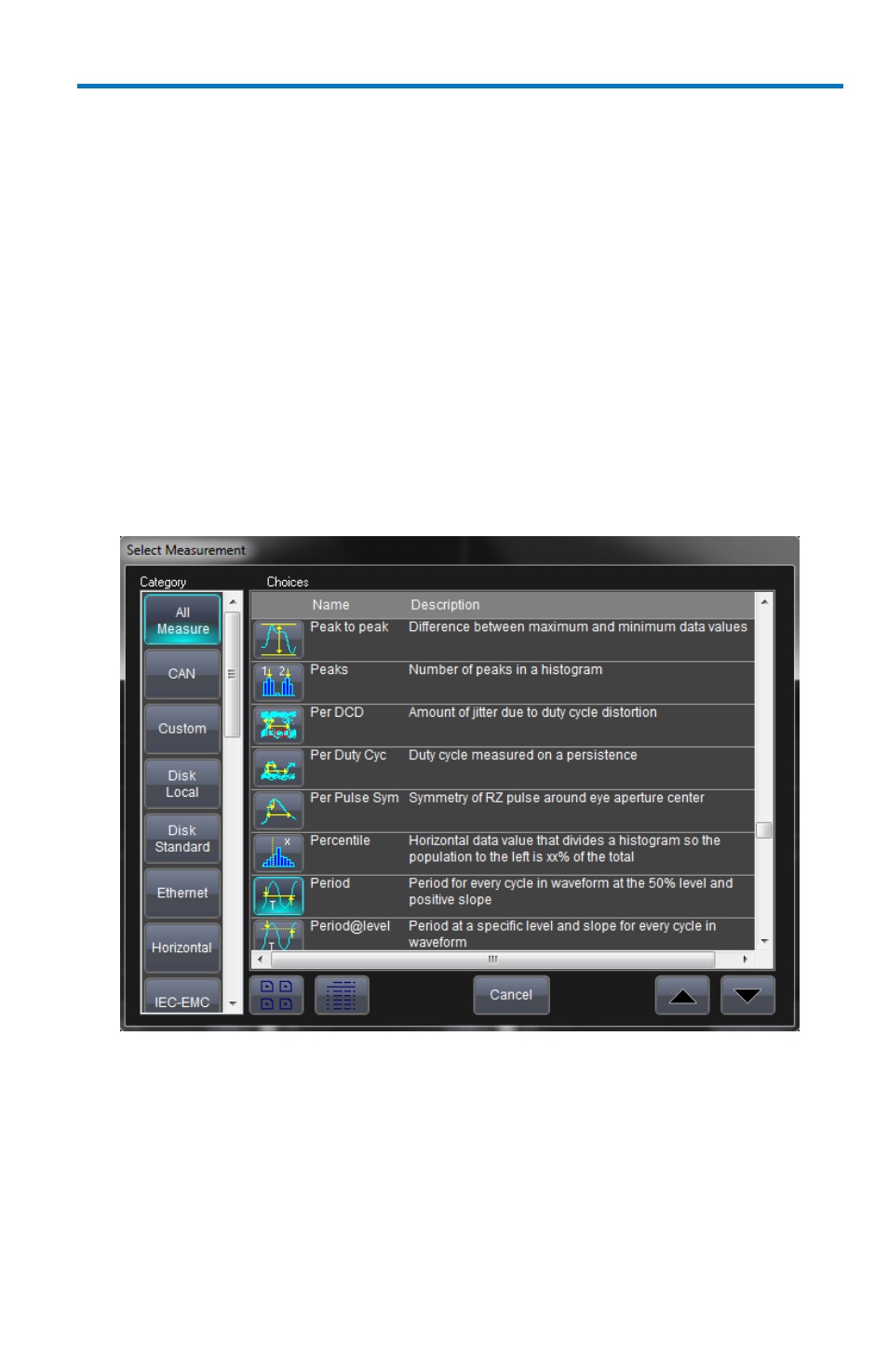

The Select Measurement pop-up.

Using a Corresponding Px Tab/Dialog - After directly accessing a
corresponding Px dialog, touch the Measure control and the Select
Measurement
pop-up is shown.

Regardless of how you performed the previously described initial steps, at
this point access your corresponding Px dialog to change other setup items
as follows:
