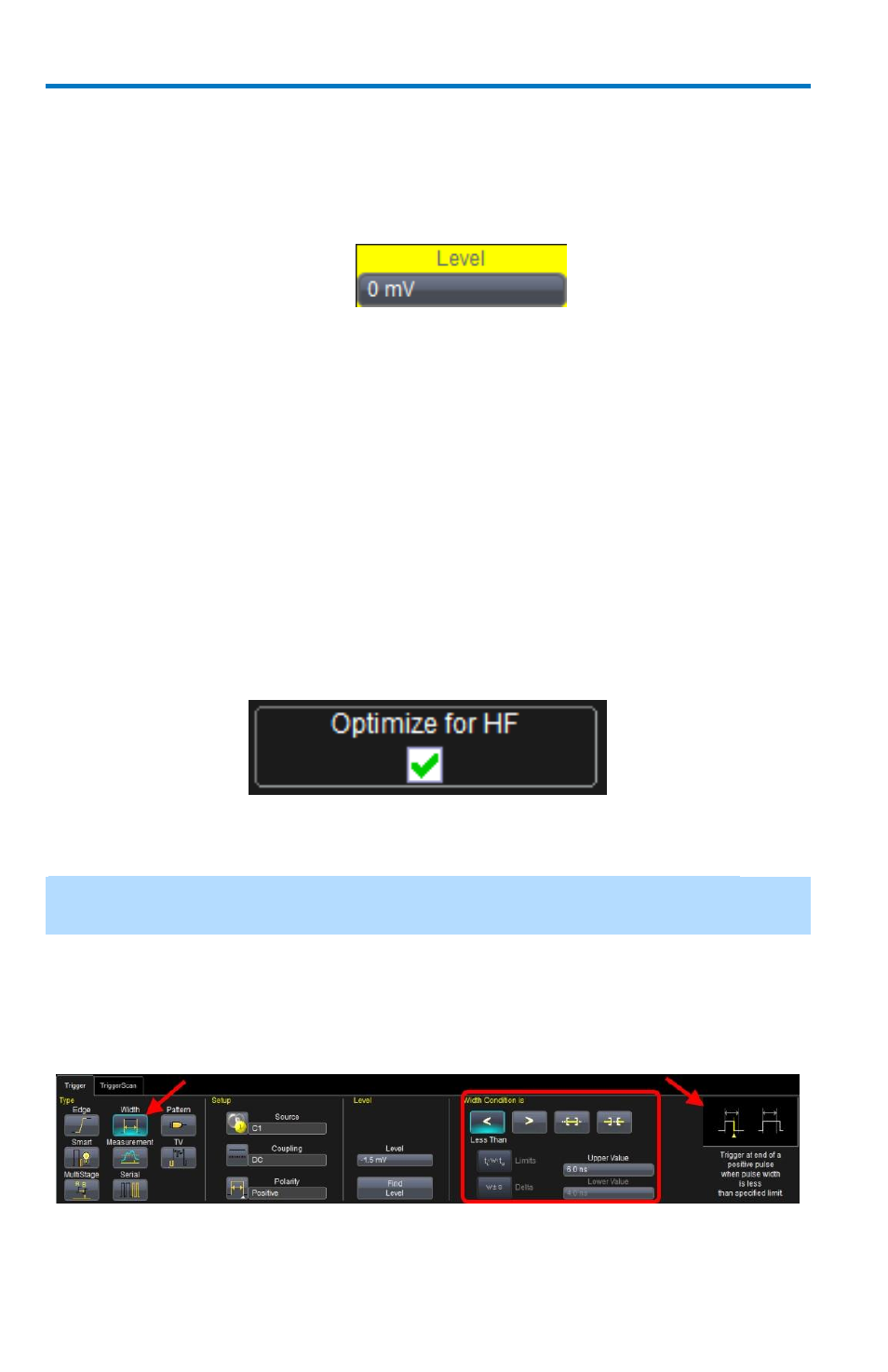

WaveRunner 6 Zi and 12-Bit HRO

76

922136-00 Rev A

Touch inside the Level data entry control and provide a value using
your preferred input control method. Additional information on
using the touch screen controls can be found in the Dialog Area

(on

page 42

)

.

Provide a voltage level (in millivolts).

PLEASE NOTE THE FOLLOWING:

Once specified, Trigger Level and Coupling are the only parameters
remaining unchanged as you switch from trigger mode to trigger
mode for each trigger source.

Some additional controls and dialogs for triggers that differ are
provided in the following topics as examples.

Optimize for HF

The Optimize for HF checkbox can be used on an Edge trigger to reject high
or low frequencies.

The checkbox is marked by default; meaning, the instrument is optimized
for high-frequency waveforms.

Note

: If you are measuring a waveform that is 10 MHz or slower, be sure to

unmark the checkbox to avoid triggering on an incorrect slope.

Width Condition is

Width triggers (and other triggers equipped with conditional logic) have
conditional logic settings as follows.

Your Width Condition can be specified as Less Than, Greater Than, In
Range
and Out Of Range.
