WaveRunner 6 Zi and 12-Bit HRO

116

922136-00 Rev A

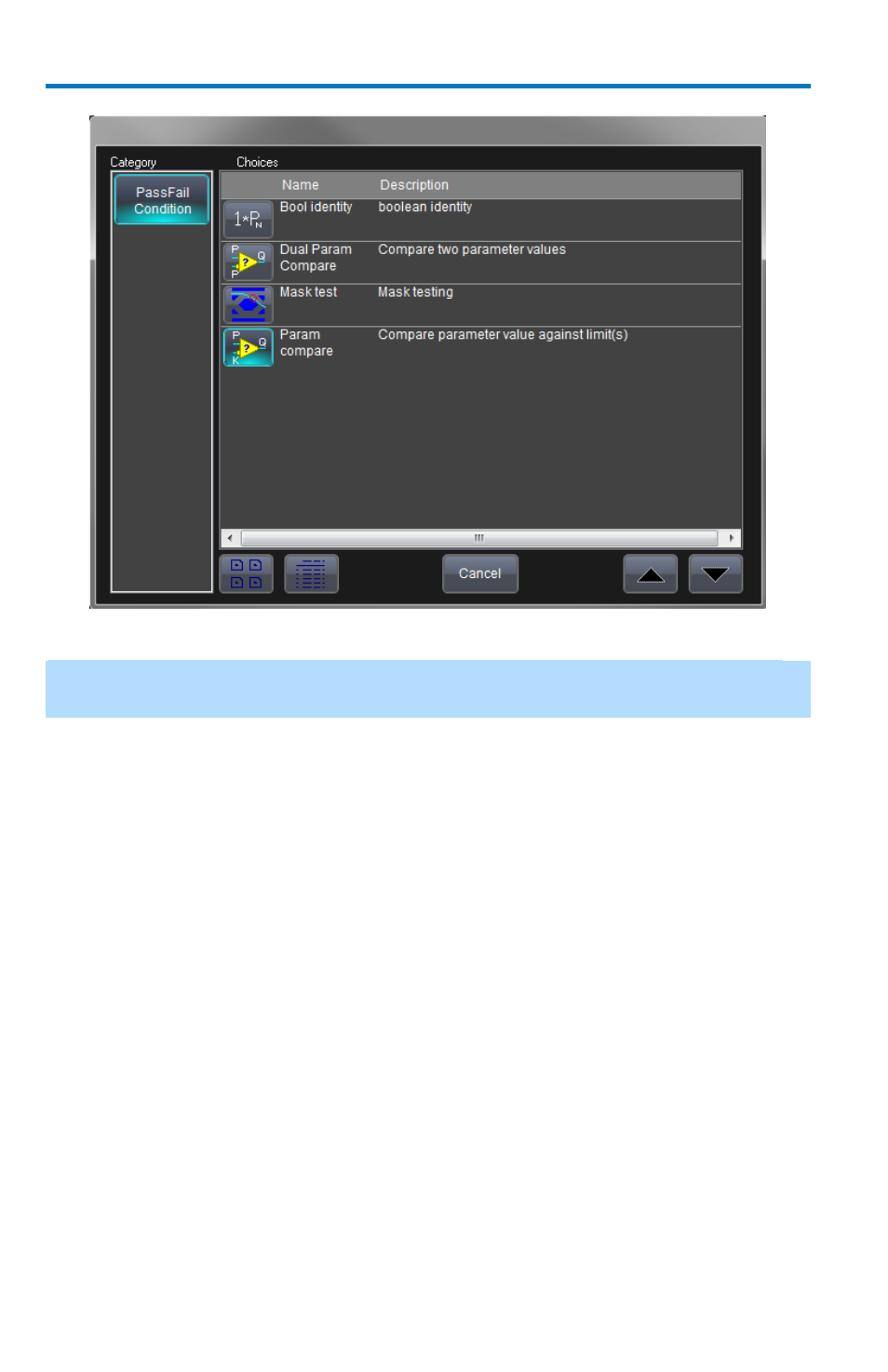

Select the desired condition.

Note

: Right hand dialogs back on the corresponding Qx dialog vary based on the

Pass/Fail condition selected.

The following sections cover the right hand dialogs for Bool identity and
Param and Dual Param Compare. The Mask test condition is covered in
Mask Testing

(on

page 124

)

.

C

ONDITION

-B

ASED

R

IGHT

-H

AND

D

IALOGS

The following provide some explanation about the different Conditions and
their respective right-hand dialogs.

Boolean Identity

This condition simply passes the input values through as the desired result.

Param and Dual Param Compare

Using the Param Compare conditions, each Pass/Fail input (Qx) can
compare a different parameter result to a user-defined limit (or statistical
range) under a different condition.
