Getting Started Manual
922136-00 Rev A
27
B
PLEASE NOTE THE FOLLOWING:
Not all functions have a function assigned to each (or any) left, right,
up, or down SuperKnob control. Some only have one or two
controls. Deactivated SuperKnob control directions are shown as un-
labeled and grayed-out on respective Help Flyout menus.
The name of the current mode being used is shown vertically on the
left side of the Help Flyout menu.
When a function button is pressed and the SuperKnob control
changes, a corresponding clearly-labeled, Help Flyout menu
indicates additional functions available when using the SuperKnob to
joystick in left, right, up, or down directions.

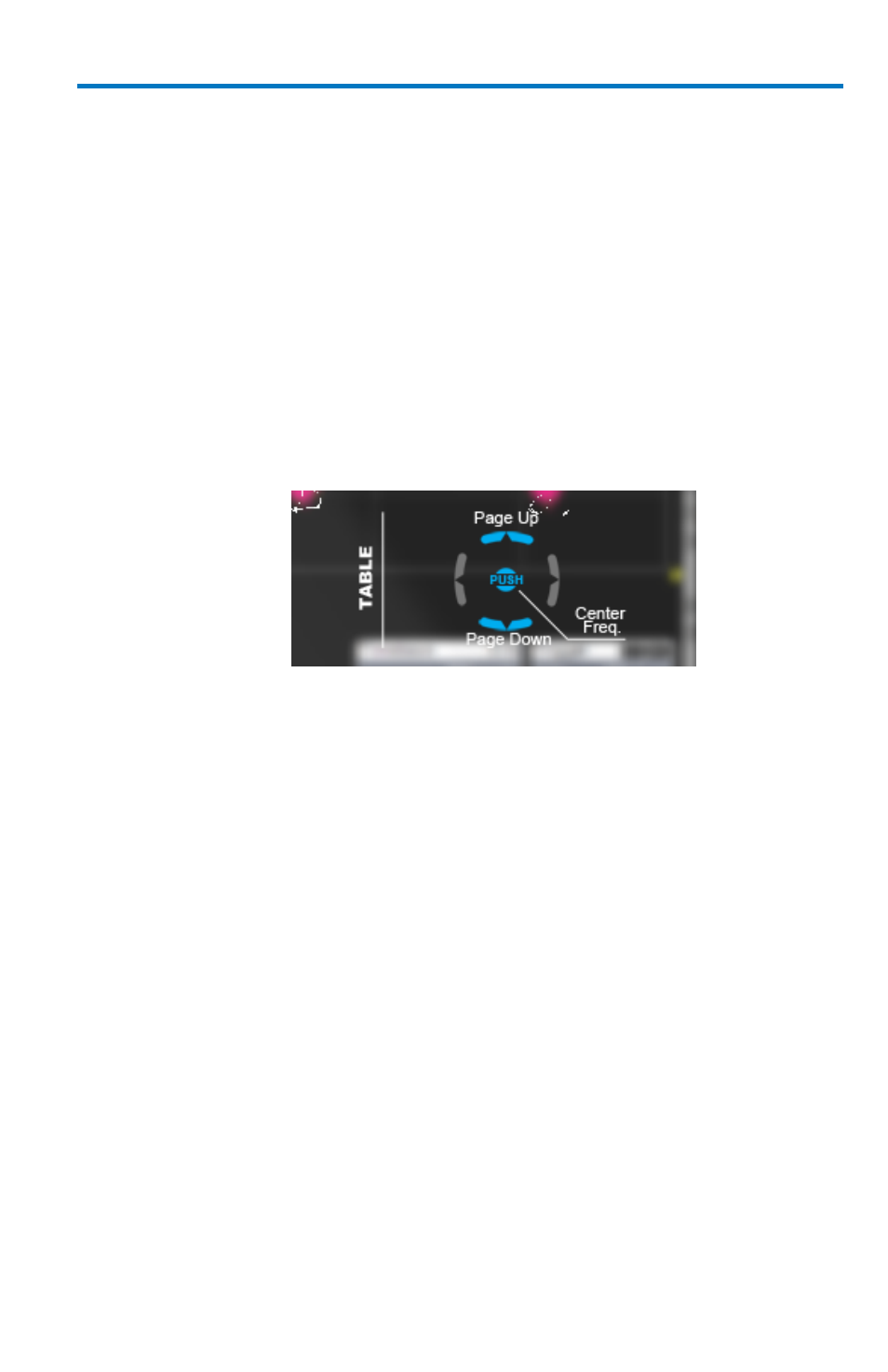

The Table Mode Help Flyout menu for the Spectrum Function button.
Some models have Table and Zoom LED indicators along with
Adjust. Others have only an Adjust LED with Zoom and Table
buttons containing backlit LEDs.
Z
OOM AND
T
ABLE
B
UTTONS
The Zoom and Table buttons may (or may not) provide additional control
for a specific WavePilot funciton you have selected.
Zoom Button
With the Zoom button selected (for a function that has the Zoom control)
you can twist the SuperKnob dial to adjust the zoom value for your
displayed waveform.
Table Button
With the Table control selected (for a function that has the Table control)
you can joystick up or down to Page Up or Down through the table results.
You can also twist the SuperKnob dial to sequentially navigate each row of
the table results.
