Mask Testing

Users may load or create a pixel-based mask on the display grid using a
variety of methods. Test conditions can be set, and a pass/fail result
returned based on whether the condition was found to be true or false.
The source of the mask is always a trace (Channel, Zoom, Math waveform).

Creating a Mask

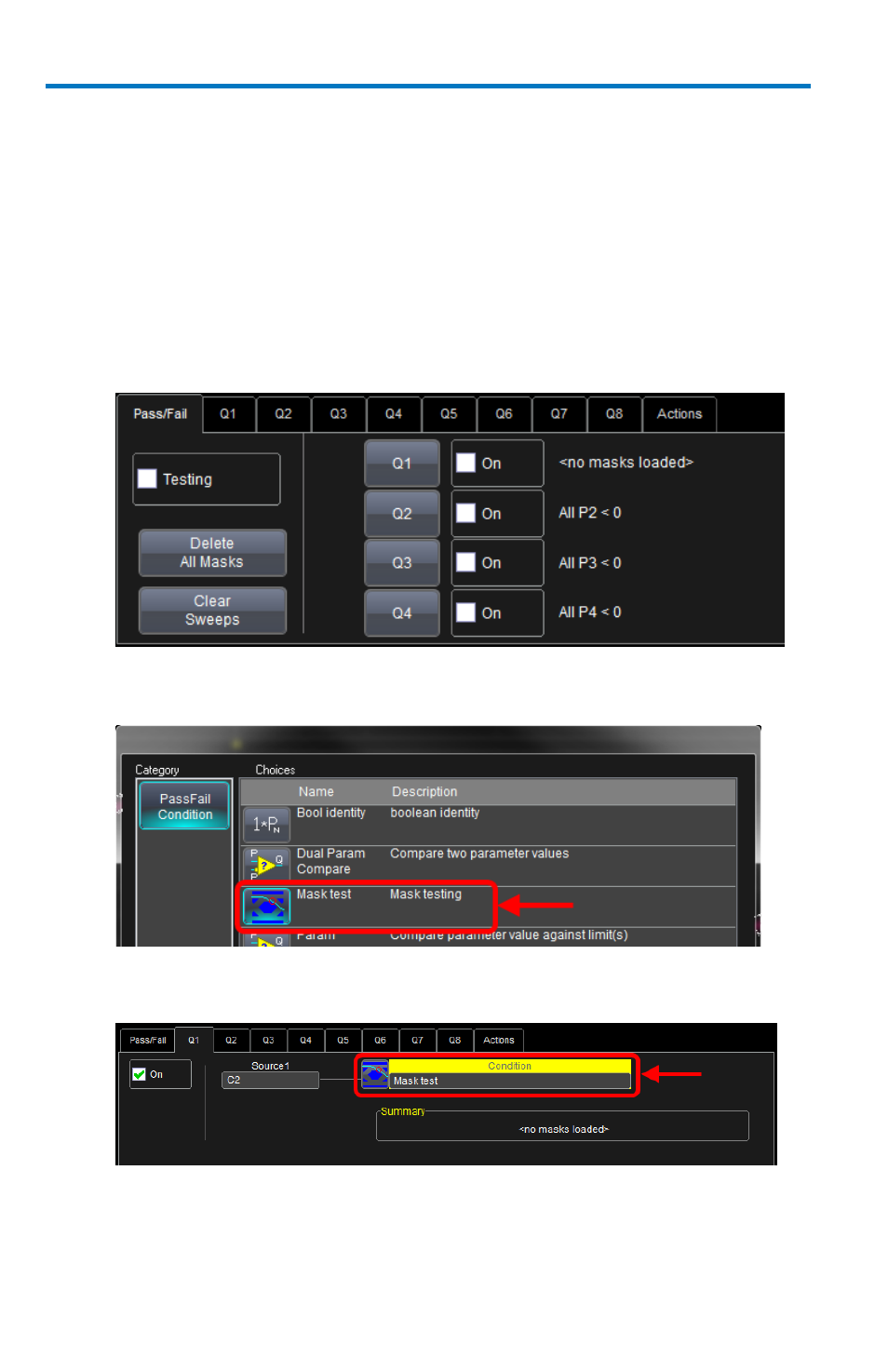

1. After selecting Analysis → Pass/Fail, the Pass/Fail dialog is shown.

If you touch the Q1 button, a pop-up is shown where you can select
the Mask test Pass Fail Condition.

Now, the Q1 dialog is shown and shows the Mask test condition
selected.

If you touch the Q1 tab, the Q1 dialog is shown. Touching the
Condition control shows the same pop-up where you can select the
Mask test Pass Fail Condition.
