WaveRunner 6 Zi and 12-Bit HRO

114

922136-00 Rev A

Pass-Fail Parameter Testing

Pass/Fail Parameter Testing Overview

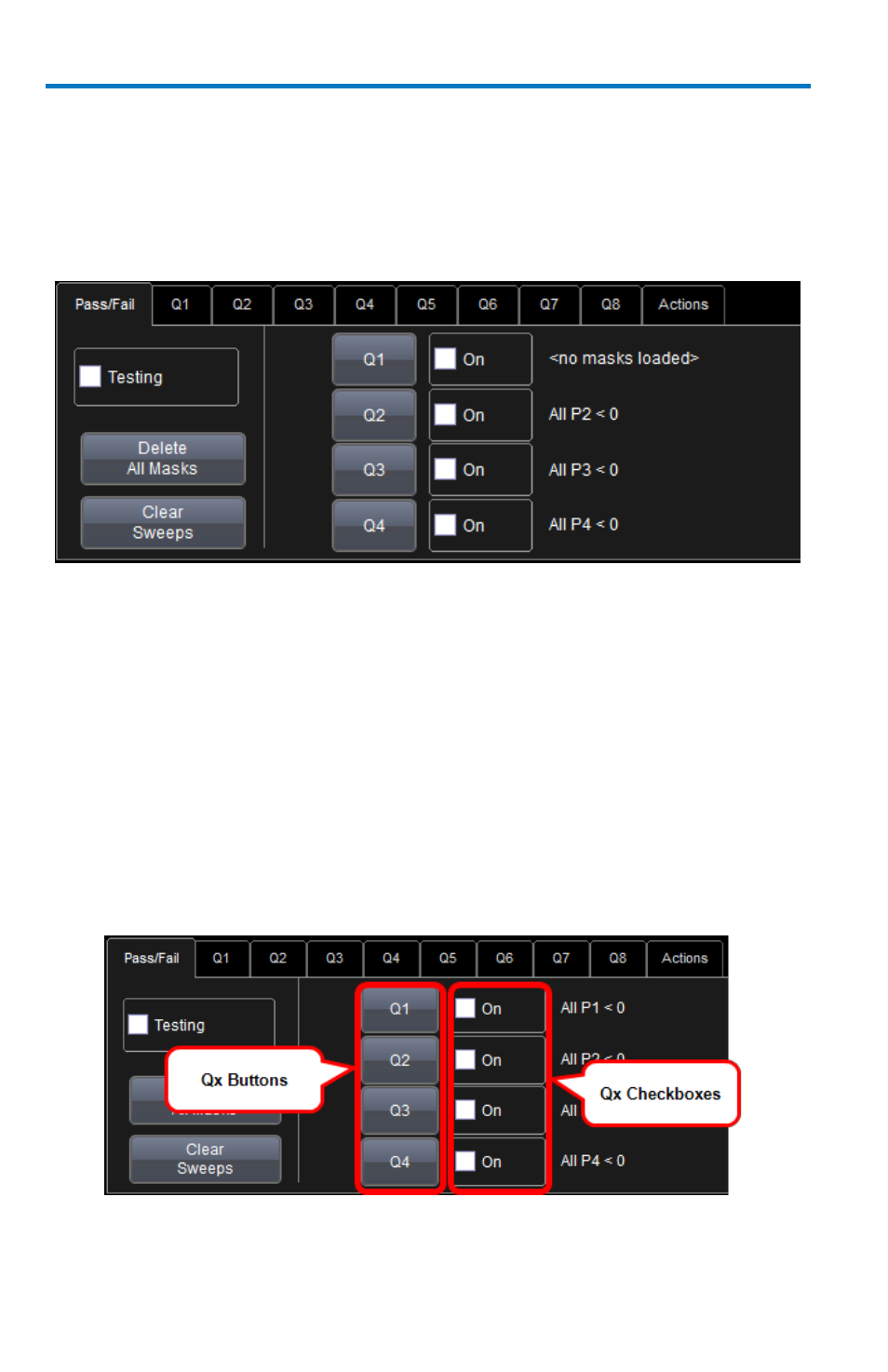

Access the main Pass/Fail dialog by selecting Analysis → Pass/Fail Setup...
from the menu bar. The main Pass/Fail dialog is shown.

Access the respective Qx dialogs either by touching a Qx button on this
main Pass/Fail dialog, or touching a Qx tab as described in Displays
Containing Masks

(on

page 86

)

.

When you have each of the Qx dialogs configured and enabled as desired,
you can then begin your testing and turn them all on or off using the
Testing checkbox on the main Pass/Fail dialog. You can also specify Actions
for all or some of your conditions using the Actions dialog.

Testing and Enabling Pass/Fail Conditions

Beside each Qx button on the main Pass/Fail dialog is a corresponding Qx
checkbox.

Use either these checkboxes or the ones on each respective Qx dialog to
enable the specific condition for use.
