WaveRunner 6 Zi and 12-Bit HRO

12

922136-00 Rev A

I/O Panel

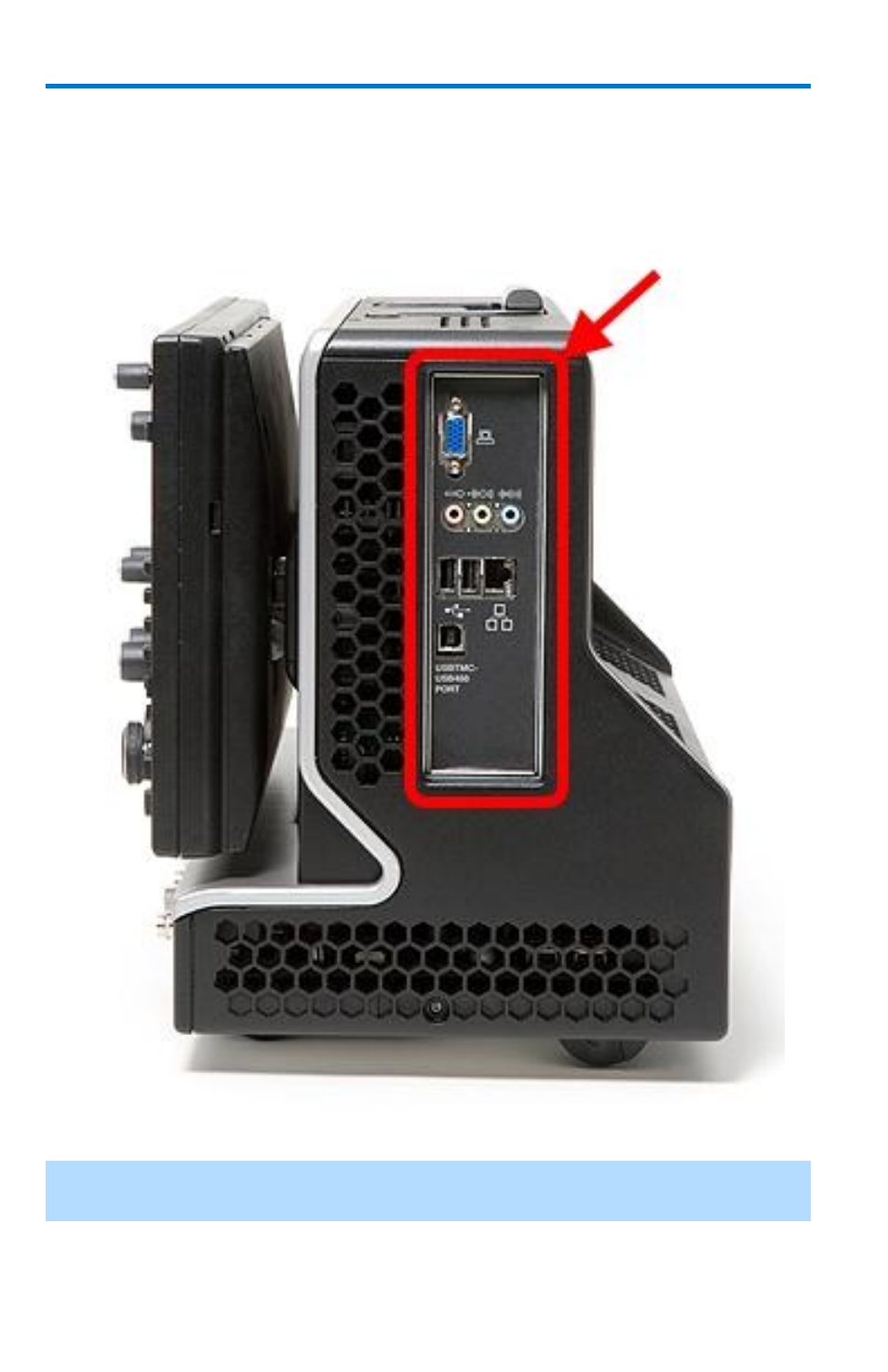

The I/O Panel is located on the right side (facing) of the instrument as
follows:

Note

: A Teledyne LeCroy Bus (LBUS) connection is located on the

The Front of

Your Oscilloscope

(on page 3).
