The Back of Your Oscilloscope

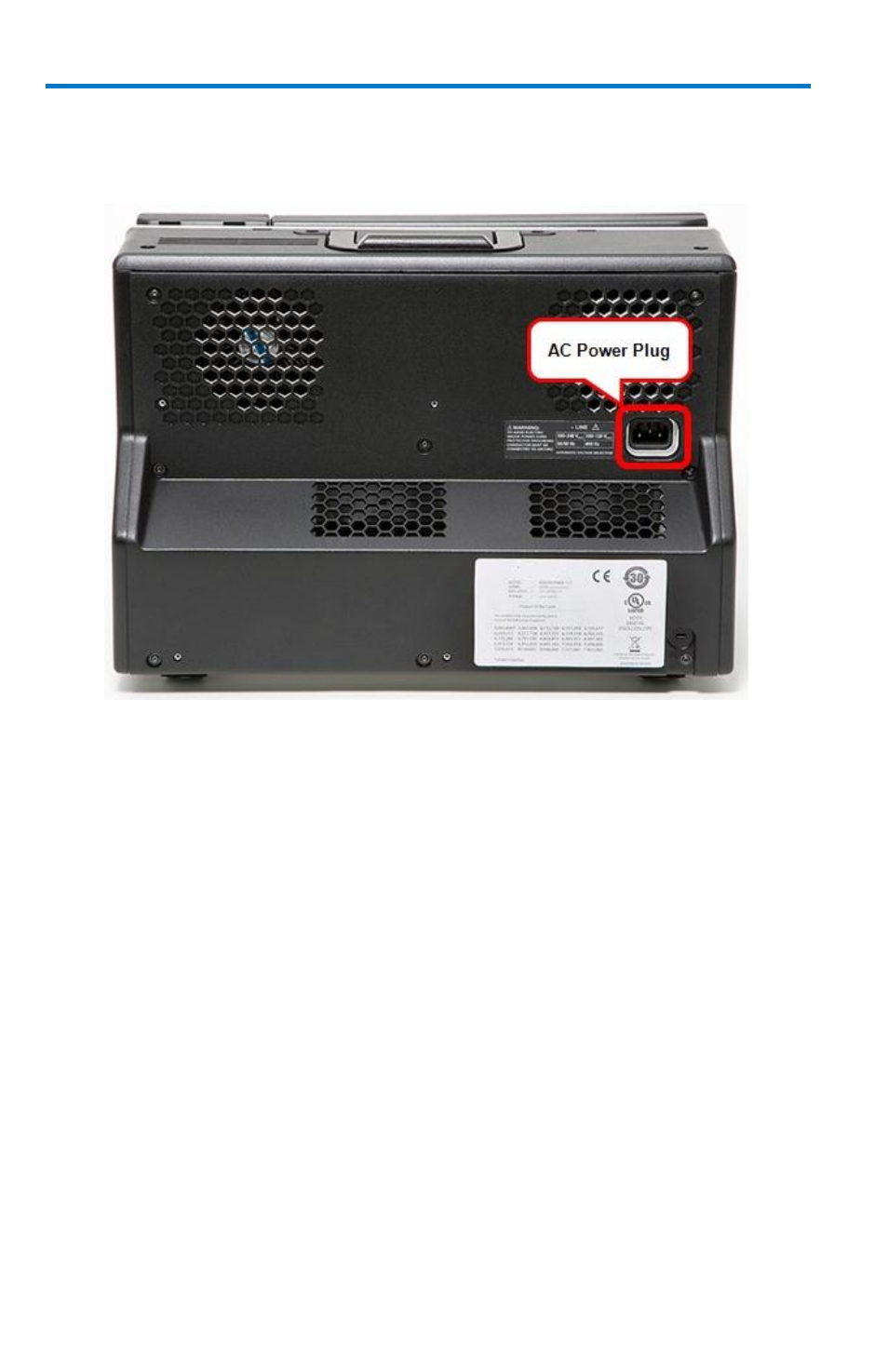

The AC Power Plug is located on the back panel of your instrument.
Removable Hard Drive Option
The WaveRunner 6 Zi and 12-Bit HRO have a removable hard drive option
available. The remainder of this topic explains how to properly remove and
reinstall the WaveRunner 6 Zi and 12-Bit HRO removable hard drive.
PLEASE NOTE THE FOLLOWING:
The WaveRunner 6 Zi and 12-Bit HRO removable hard drive option
must be specified when ordering and installed at the Teledyne
LeCroy factory. Contact your Teledyne LeCroy representative for
details using Contact Teledyne LeCroy for Support.
When this option is ordered, a removable hard drive is installed
inside your oscilloscope and an additional removable hard drive is
also provided.
Never attempt to extract a removable hard drive without powering
down your instrument first.
