Getting Started Manual

922136-00 Rev A

41

B

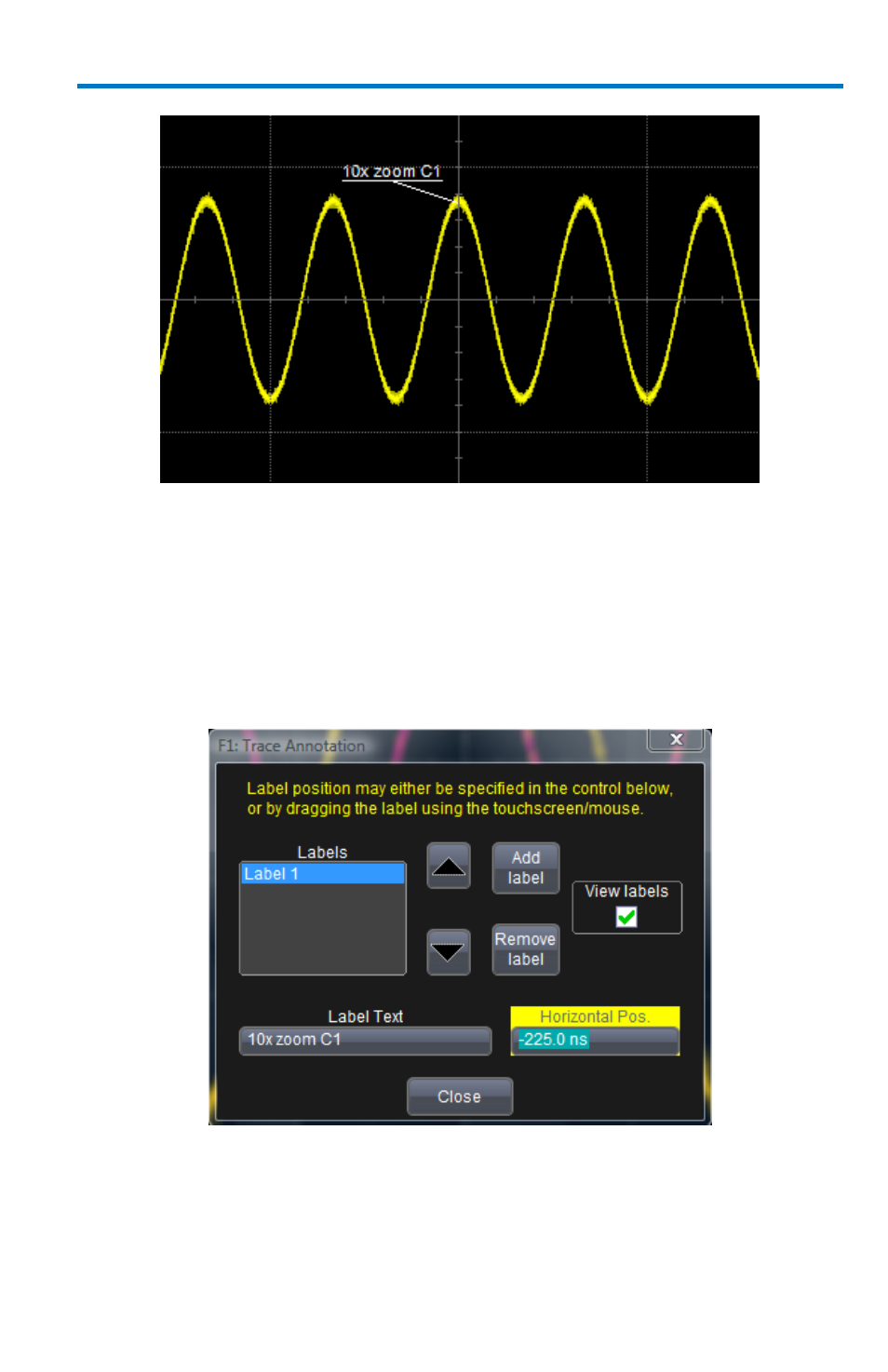

For each waveform, you can create multiple labels and turn them all on or
all off. Also, you can position them on the waveform by dragging or by
specifying an exact horizontal position.

Touch the waveform you want to annotate right on the display grid, and
then touch Set label... on the pop-up menu. A dialog box opens in which to
create the label. The first time creating a waveform label, Label1 is
provided as default text when the Add label button is touched.

From this pop-up you can edit existing annotations, change the label
placement on the waveform, add labels, remove labels, and toggle the
visibility
. The following bullets show you how.
