WaveRunner 6 Zi and 12-Bit HRO

140

922136-00 Rev A

Depending on your selection, you may need to touch the SubFormat
control and select a subformat.

Word - Available when selecting the Binary format, specifies
the samples in the output file are represented with 16 bits.
Always use this option unless Byte mode is pre.

Byte - Available when selecting Binary format, specifies the
samples in the output file are represented with 8 bits.

Note

: Using this option can result in a loss of output file resolution.

Amplitude only - Specifies the output file include amplitude
data for each sample, but not sample time information.

Time and Amplitude - Specifies the output file include both
time and amplitude data for each sample.

With Header - Specifies to include a header with scaling
information.

If you select ASCII, touch the Delimiter control and select a delimiter
character from the pop-up menu. Choose from comma, space,
semicolon, or tab delimiters.

PLEASE NOTE THE FOLLOWING:

Select Audio to save your waveforms into the .wav format.

The WaveML format, which enables XML output, is used for
persistence traces.

Vector Signal Analysis (VSA) Support Software Option

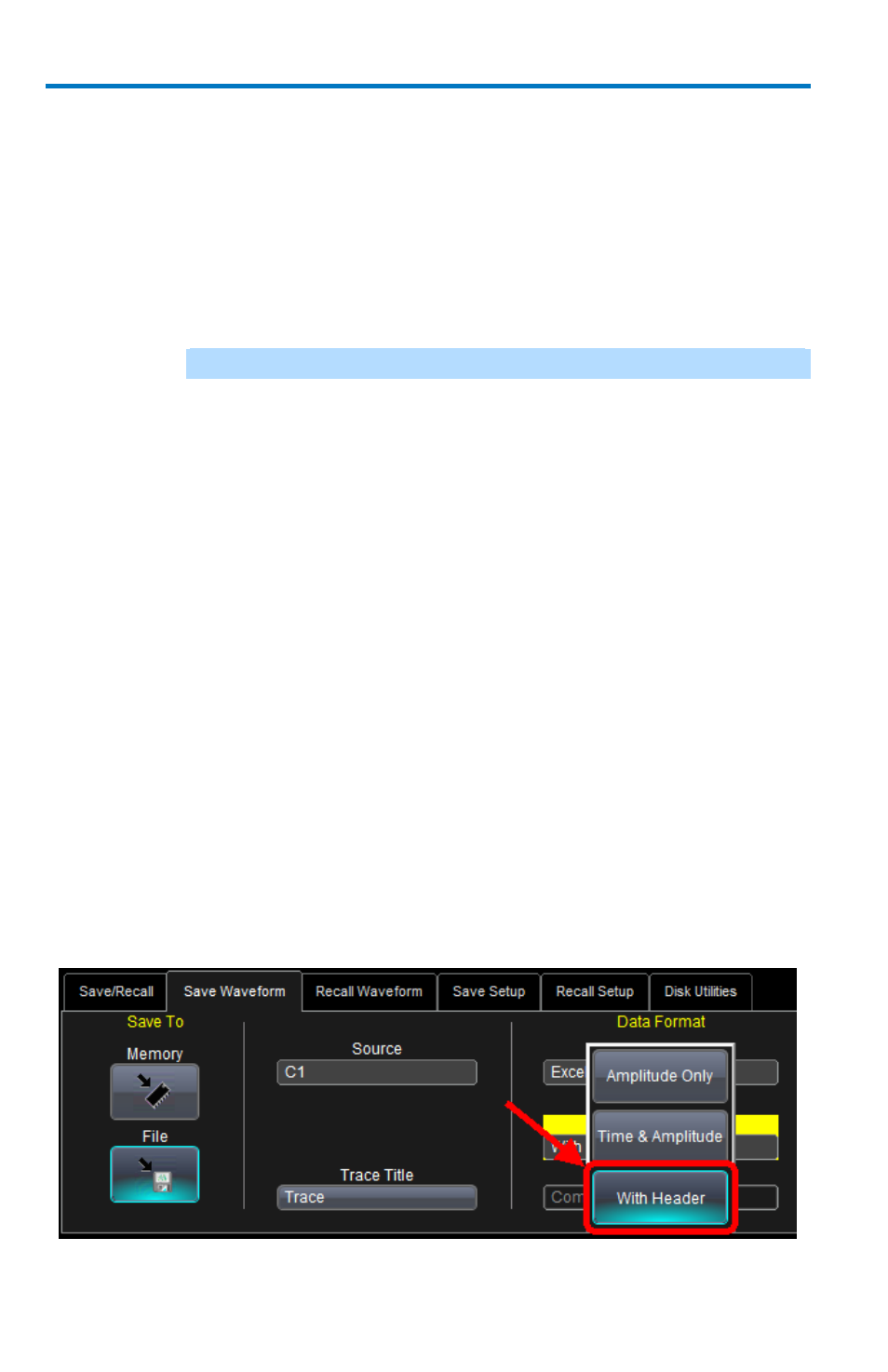

Before we continue saving our waveform, users with the VSA Support
Software option can choose With Header from the SubFormat control.

This stores the waveform in VSA recall format for later use.
