WaveRunner 6 Zi and 12-Bit HRO

126

922136-00 Rev A

Removing a Mask from the Display

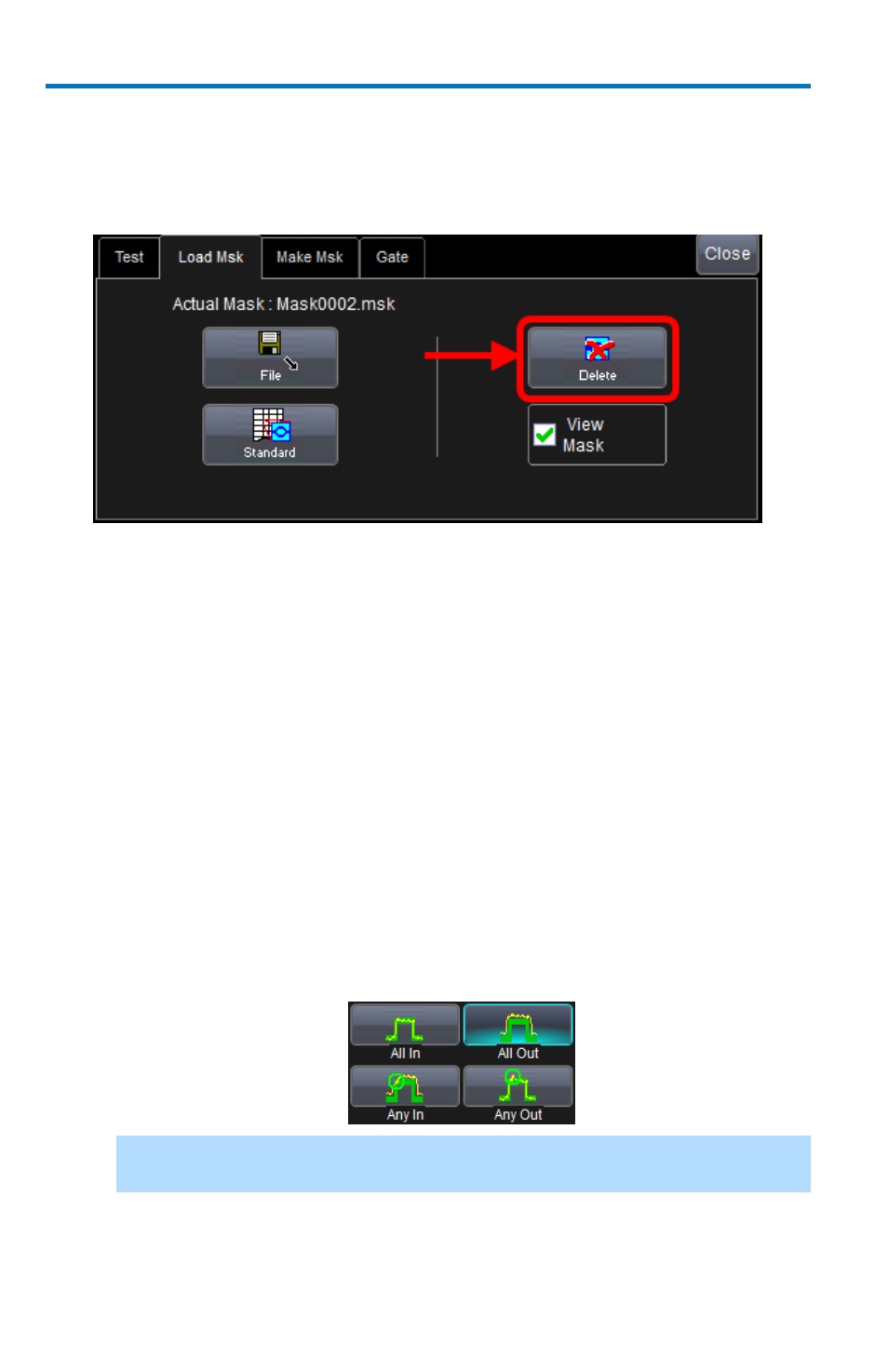

Quickly remove a mask by accessing the Qx dialog. On the Load Mask right-
hand dialog, click the Delete button.

Mask testing can be done using an existing mask, or by using a mask
created from your actual waveform, with vertical and horizontal tolerances
that you define. Existing masks can be loaded from a floppy disk or from a
network.

You can set your mask test to be True for waveforms All In, All Out, Any In,
or Any Out. For example, if you select All In, the test becomes False if even
a single waveform falls outside the mask.

Masks that you create from your waveform can be confined to just a
portion of the trace by use of a measure gate. Refer to the Measure Gate

online help

topic for more information on how this feature works.

Right-Hand Dialogs

On the Test right-hand dialog, make a selection in the Test is True
when
group of buttons (as follows).

NOTE

: The previous selection is for

All In

and means the test is False when

a single waveform falls outside the mask.

From the Show Markers section of the dialog, choose whether or
not to have mask violations displayed by touching either the Off or
On button.
