WaveRunner 6 Zi and 12-Bit HRO

152

922136-00 Rev A

the dialog area and you only want to show the waveforms and grids.
Choose DSO window if you want to print the dialogs with the
waveforms and grids. Choose Full Screen if you want to print the
entire screen.

6. Touch the Print Now button.

E-

MAIL

The E-mail selection on the Hardcopy tab gives you the option to e-mail
your screen images, using either the MAPI or SMTP protocols. Before you
output to e-mail from the Utilities dialog, you first have to set up the e-mail
server and recipient address in Preference Setup.... Choose from either of
the following methods to e-mail your screen image:

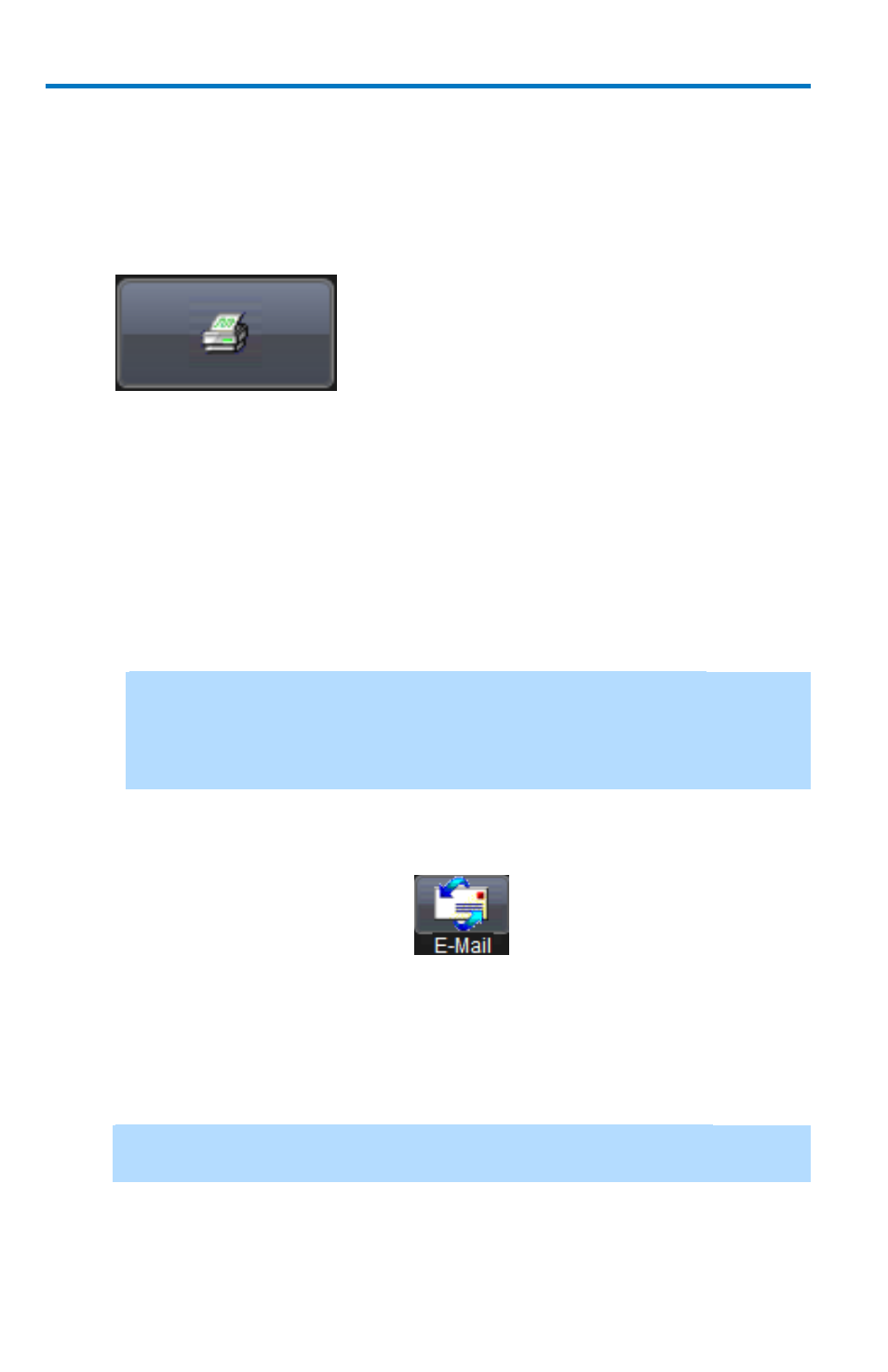

Press the

P

RINT

front panel button. Then, touch the

Send Screen To E-

mail

button from the Print flyout menu.

Note

: Once you have configured your

E-mail

settings from the

Hardcopy

dialog (using the next procedure), you can touch the

P

RINT

front panel button and touch

Send Screen To E-mail

on the

Print

flyout

menu. The instrument uses the additional e-mail settings automatically.

Touch

Utilities → Utilities Setup...

and click the

Hardcopy

tab. On the

Hardcopy dialog, touch the

E-Mail

button.

1. Touch inside the File Format data entry control and select a graphic

file format from the pop-up menu.

2. Touch the Colors control and choose Standard to print the screen as

it appears, Print to print the waveforms on a white background, or
Black & White to print the waveforms in black & white.

Note

: Choosing

Print

colors saves printer toner or ink (when you

eventually do print from the file).

3. Touch the Prompt for message to send with mail checkbox if you

want to include remarks with the image.
