Creating a track view – Teledyne LeCroy WaveRunner 6 Zi and 12-Bit HRO Getting Started Manual User Manual
Page 121

Getting Started Manual
922136-00 Rev A
113
B

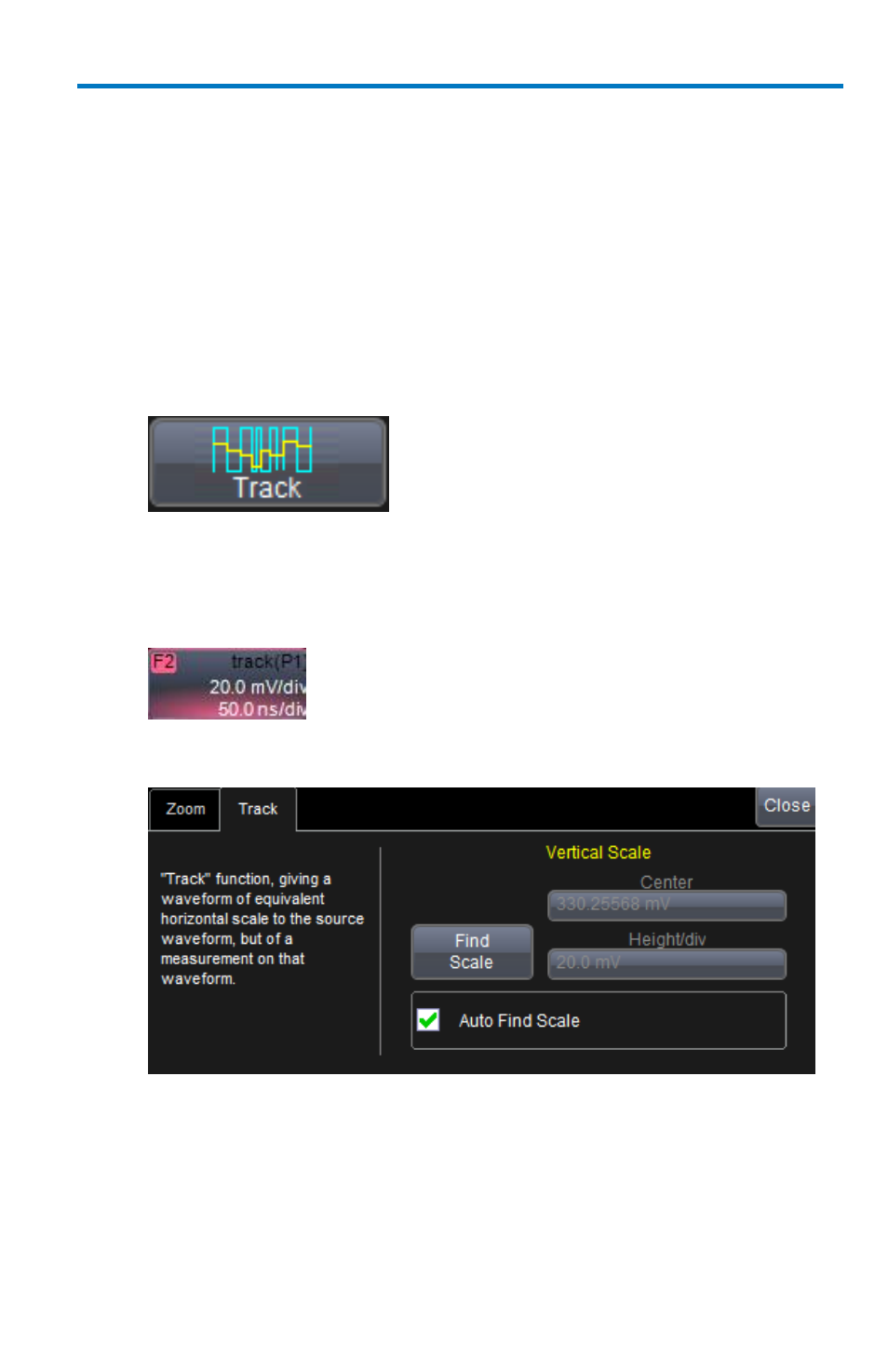

Creating a Track View
1. In the menu bar, touch Measure → Measure Setup....
2. Touch a parameter tab Px and its corresponding dialog is shown.
3. Now, on the dialog, touch inside the Source1 data entry field and
select an input waveform from the pop-up menu.
4. Touch inside the Measure data entry field and select a parameter
from the pop-up menu.
5. Touch the Track button at the bottom of the dialog.
Now, from the Math selection for Track menu, select a math
function location (Fx) on which to store the Track display. The Track
is then shown along with its respective trace descriptor label for the
selected math function.
6. Touch the newly displayed Track math function trace label if you
want to change any settings in the Track dialog:
