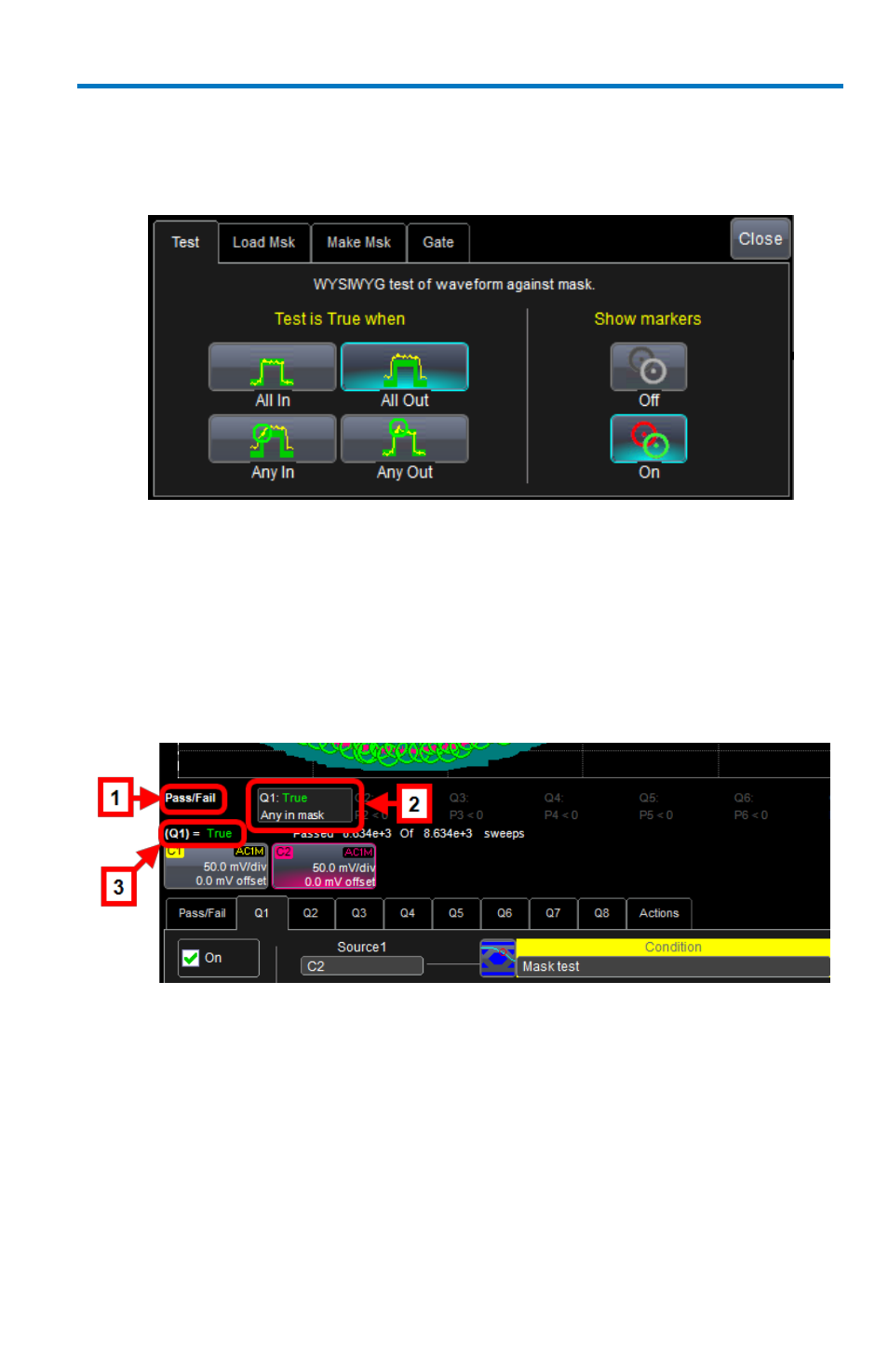

2. With the Mask test Pass Fail Condition selected, the Test, Load

Mask, Make Mask, and Gate right-hand dialogs are shown and are
where you manage, make, and apply gates to your mask.

For more detailed information about these right-hand dialogs, refer
to Pass/Fail Testing

(on

page 114

)

.

Quick Access to Pass/Fail Setup Dialogs

You can quickly gain access to the main Pass/Fail dialog, a (Qx) setup
dialog, or the Actions dialog, by touching one of the following respective
sections below the grid display.
