Timebase
Overview
You can access Timebase settings using the front panel Horizontal controls,
the Timebase → Horizontal Setup... on the menu bar, or by touching the

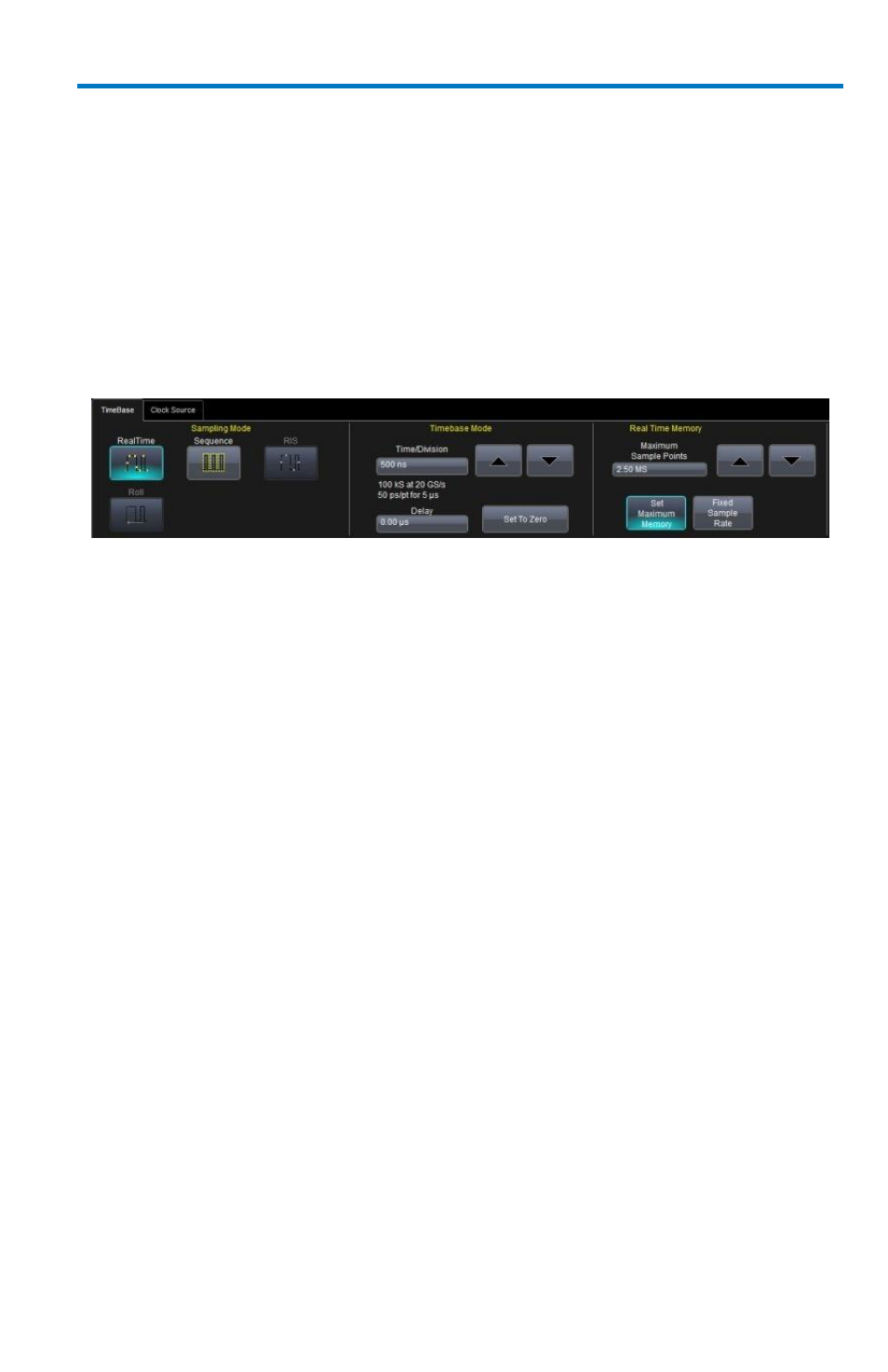

Timebase trace descriptor label. The main Timebase dialog is then shown
and contains sections for Sampling Mode, Timebase Mode, and Real Time
Memory.
A section specifically used for combining channels is located on the far
right of the main Timebase dialog. This section varies based on your
oscilloscope model.
Timebase Setup and Control
1. With the Timebase dialog showing, touch inside the Time/Division
data entry control and provide a value using your preferred input
control method. Additional information on using the touch screen
controls can be found in the Dialog Area
(on page 42 ) .
2. Touch inside the Delay data entry control and provide a value.
