Help markers setup, Getting started manual – Teledyne LeCroy WaveRunner 6 Zi and 12-Bit HRO Getting Started Manual User Manual
Page 111

Getting Started Manual
922136-00 Rev A
103
B

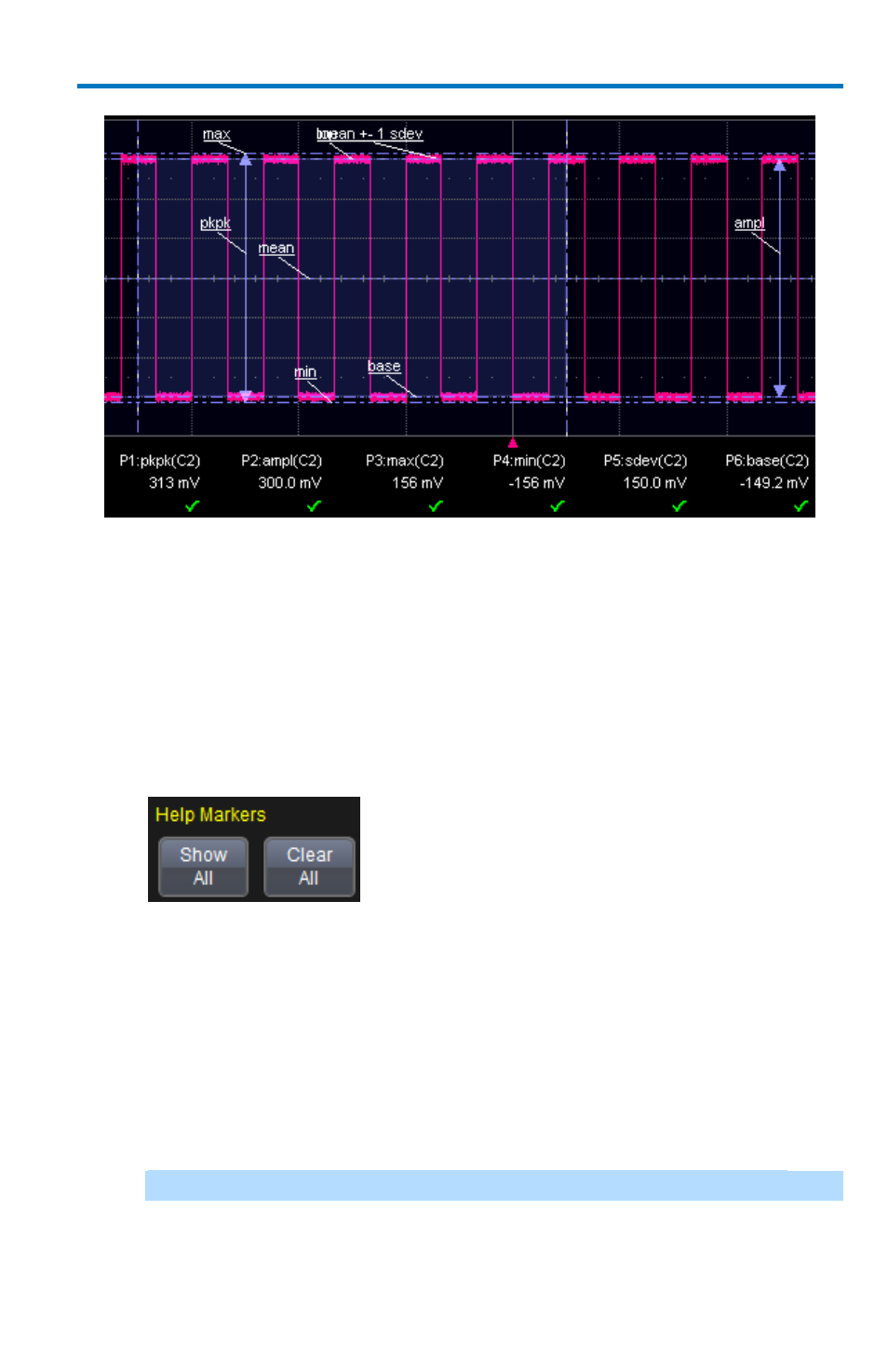

Standard Vertical Parameter Help Markers
Help Markers Setup
1. Touch Measure → Measure Setup... on the menu bar.
2. Select a Measure Mode: Std Vertical, Std Horizontal, or My
Measure.
3. Touch the Show All button to display Help Markers for every
parameter being measured on the displayed waveform.
4. Touch a Px for any listed parameter; it doesn't matter which.
5. On the Px dialog, touch inside the Help Markers control and select
Simple or Detailed. The Simple selection produces cursors and
Measure Gate gate posts. The gate posts are independently
placeable for each parameter. The Detailed selection produces
cursors, Measure Gate gate posts, a label identifying the parameter
being measured, and a level indicator and hysteresis band for "at
level" parameters.
NOTE
: The choice of
Simple
or
Detailed
is applied to all parameters.
6. Touch the Always On checkbox if you want to continuously display
Help Markers for this parameter.
