WaveRunner 6 Zi and 12-Bit HRO

78

922136-00 Rev A

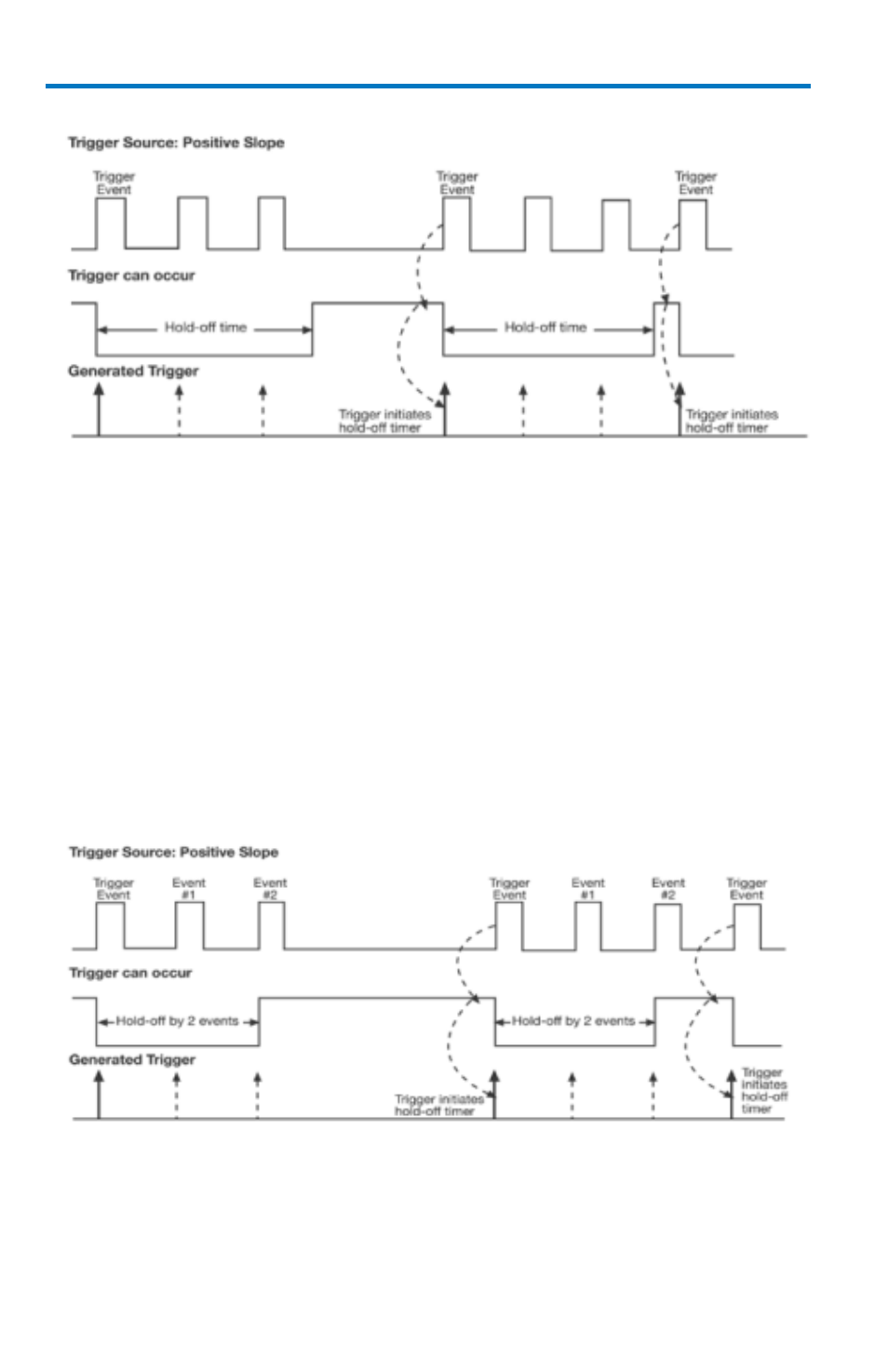

Edge Trigger with Holdoff by Time. The bold edges on the trigger source indicate

that a positive slope has been selected. The broken upward-pointing arrows

indicate potential triggers, which would occur if other conditions are met. The

bold arrows indicate where the triggers actually occur when the holdoff time has

been exceeded.

H

OLD

O

FF BY

E

VENTS

Select a positive or negative slope and a number of eventwis. An event is
the number of times the trigger condition is met after the last trigger. A
trigger is generated when the condition is met after this number, counted
from the last trigger. The count is restarted on each trigger. For example, if
the event number is two, the trigger occurs on the third event.

Edge Trigger with Holdoff by Events (in this example, two events). The bold edges
on the trigger source indicate that a positive slope has been selected. The broken,

upward-pointing arrows indicate potential triggers, while the bold ones show

where triggers actually occur after the holdoff expires.
