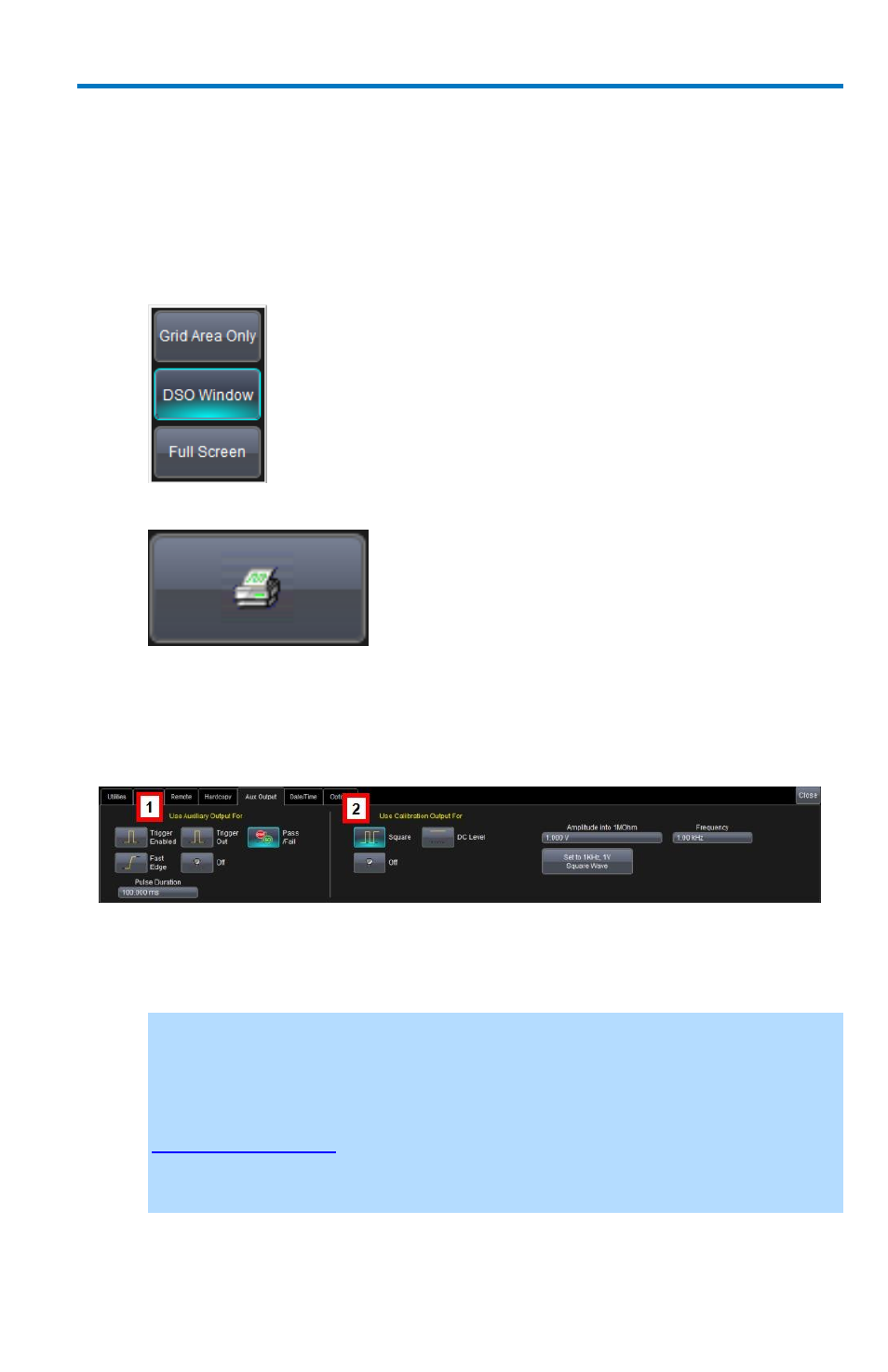

4. Touch the Hardcopy Area control to choose which part of the screen

you want to print. Choose Grid Area Only if you do not need to print
the dialog area and you only want to show the waveforms and grids.
Choose DSO window if you want to print the dialogs with the
waveforms and grids. Choose Full Screen if you want to print the
entire screen.

5. Touch the Print Now button.

Aux Output

The Aux Output dialog allows you to specify Auxiliary and Calibration
Output details.

1. If you want a specialized output, touch one of the following buttons

under Use Auxiliary Output For: Square Wave, Trigger Enabled,
Trigger Out, Pass/Fail, or Off.

Note

: If

Pass/Fail

is selected on this

Use Auxiliary Output For

section

of the dialog, a

Pulse Duration

data entry control is made available.

Provide a value within your instrument's specified range (varied based on
your specific model, refer to datasheet specifications at

teledynelecroy.com

for details) using your preferred input control method.

Additional information on using the touch screen controls can be found in
the

Dialog Area

(on page 42).
