WaveRunner 6 Zi and 12-Bit HRO

52

922136-00 Rev A

Sampling Modes

Overview

Depending on your timebase, you can choose Single-shot Sampling Mode

(below)

, also known as Real Time mode, Sequence Sampling Mode

(on

page

53

)

, or RIS Sampling Mode

(on

page 59

)

mode sampling.

Newer instruments offer Roll Mode

(on

page 60

)

Some instruments also offer Roll Mode

(on

page 60

)

.

Selecting a Sampling Mode

1. Touch Timebase → Horizontal Setup... from the menu bar.

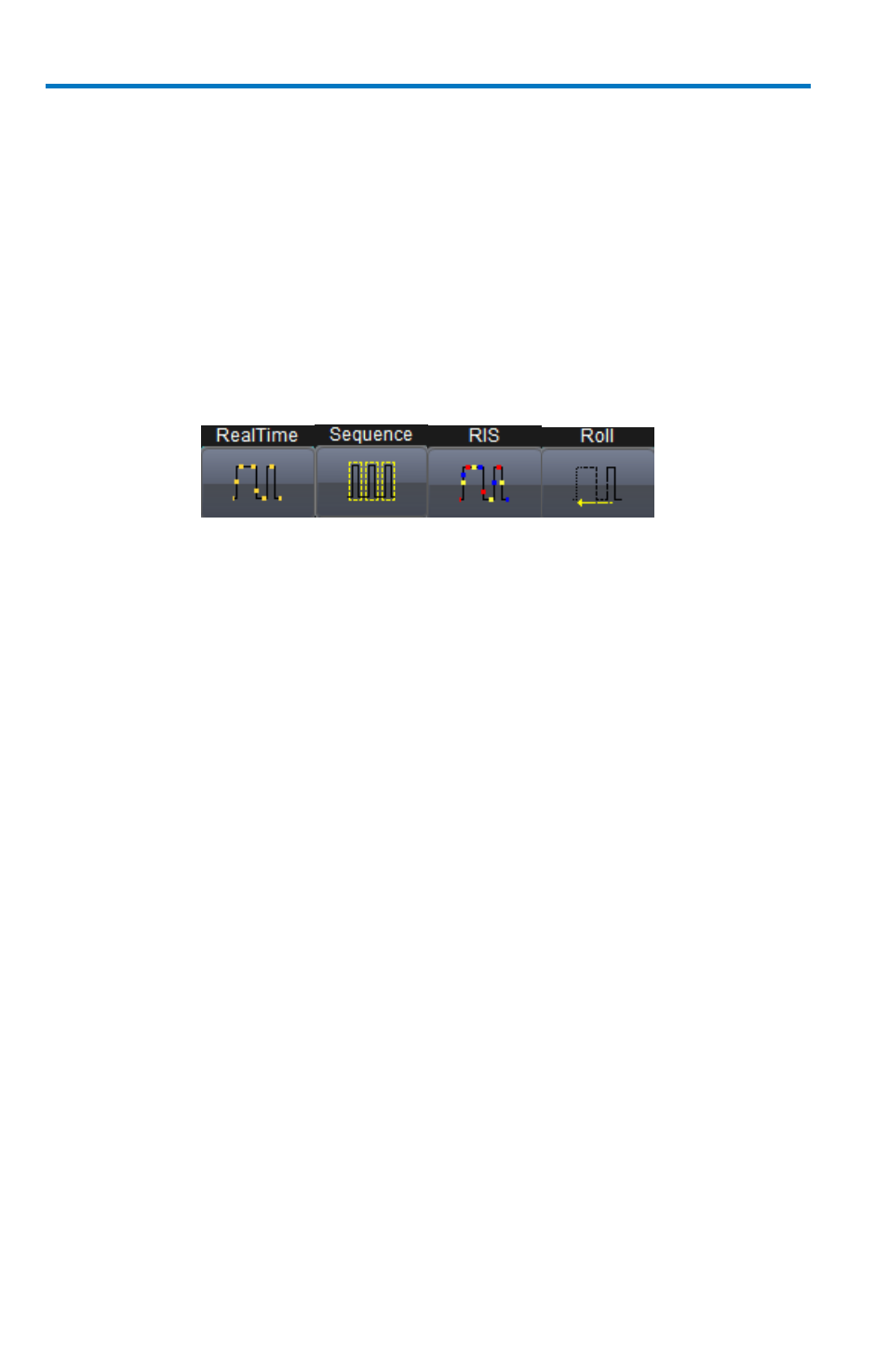

2. In the Timebase dialog, touch a Sample Mode button.

3. If you chose Sequence Mode, touch the Sequence tab. The

Sequence dialog is shown. Use the following controls to provide
details for controls such as Number of Segments, Enable Timeout,
Timeout (value), Display Mode, and Show Sequence Trigger Times.

Single-shot Sampling Mode

Basic Capture Technique

A single-shot acquisition is a series of digitized voltage values sampled on
the input signal at a uniform rate. It is also a series of measured data values
associated with a single trigger event. The acquisition is typically stopped a
defined number of samples after this event occurs: a number determined
by the selected trigger delay and measured by the timebase. The
waveform's horizontal position (and waveform display in general) is
determined using the trigger event as the definition of time zero.

You can choose either a pre- or post-trigger delay. Pre-trigger delay is the
time from the left-hand edge of the display grid forward to the trigger
event, while post-trigger delay is the time back to the event. You can
sample the waveform in a range starting well before the trigger event up to
the moment the event occurs. This is 100% pre-trigger, and it allows you to
