Part 1 Installation

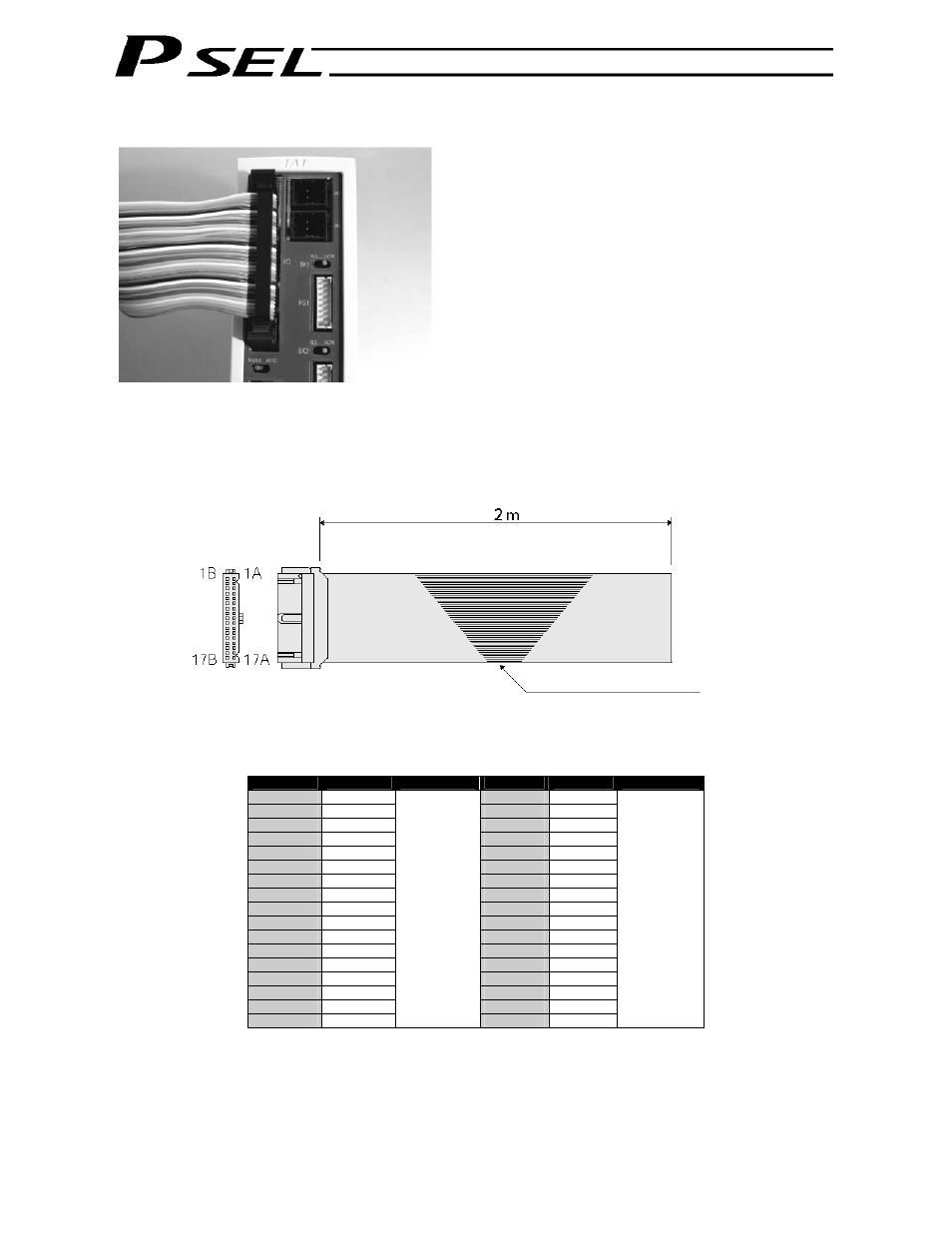

6.4 Connecting the PIO Cable (I/O)
Connect the supplied flat cable. Connect the opposite
end (open end without connector) of the cable to a
desired peripheral (host PLC, etc.).
I/O flat cable (supplied): Model number CB-DS-P10020
No. Color Wire No. Color Wire
1A Brown 1 9B Gray 2
1B Red 1 10A White 2
2A Orange 1 10B Black 2
2B Yellow 1 11A Brown-3
3A Green 1 11B Red 3
3B Blue 1 12A Orange 3
4A Purple 1 12B Yellow 3
4B Gray 1 13A Green 3
5A White 1 13B Blue 3
5B Black 1 14A Purple 3
6A Brown-2 14B Gray 3
6B Red 2 15A White 3
7A Orange 2 15B Black 3
7B Yellow 2 16A Brown-4
8A Green 2 16B Red 4
8B Blue 2 17A Orange 4
9A Purple 2
Flat cable,
pressure-
welded
17B Yellow 4
Flat cable,
pressure-
welded
No connector
Flat cable (34 cores)
