Chapter 11 Connecting a Second Display
Playback item information
Play option settings
(7) Audio level indicator Shows the audio level and audio track number of the player for the
current playback.
The audio level for the audio track you selected in "PANEL" on the
CONFIG screen is displayed. For information on how to set the audio
track to display, see
"Panel settings (the confirmation dialog setting,
audio level meter setting)" on page 173 .
No. Name Function

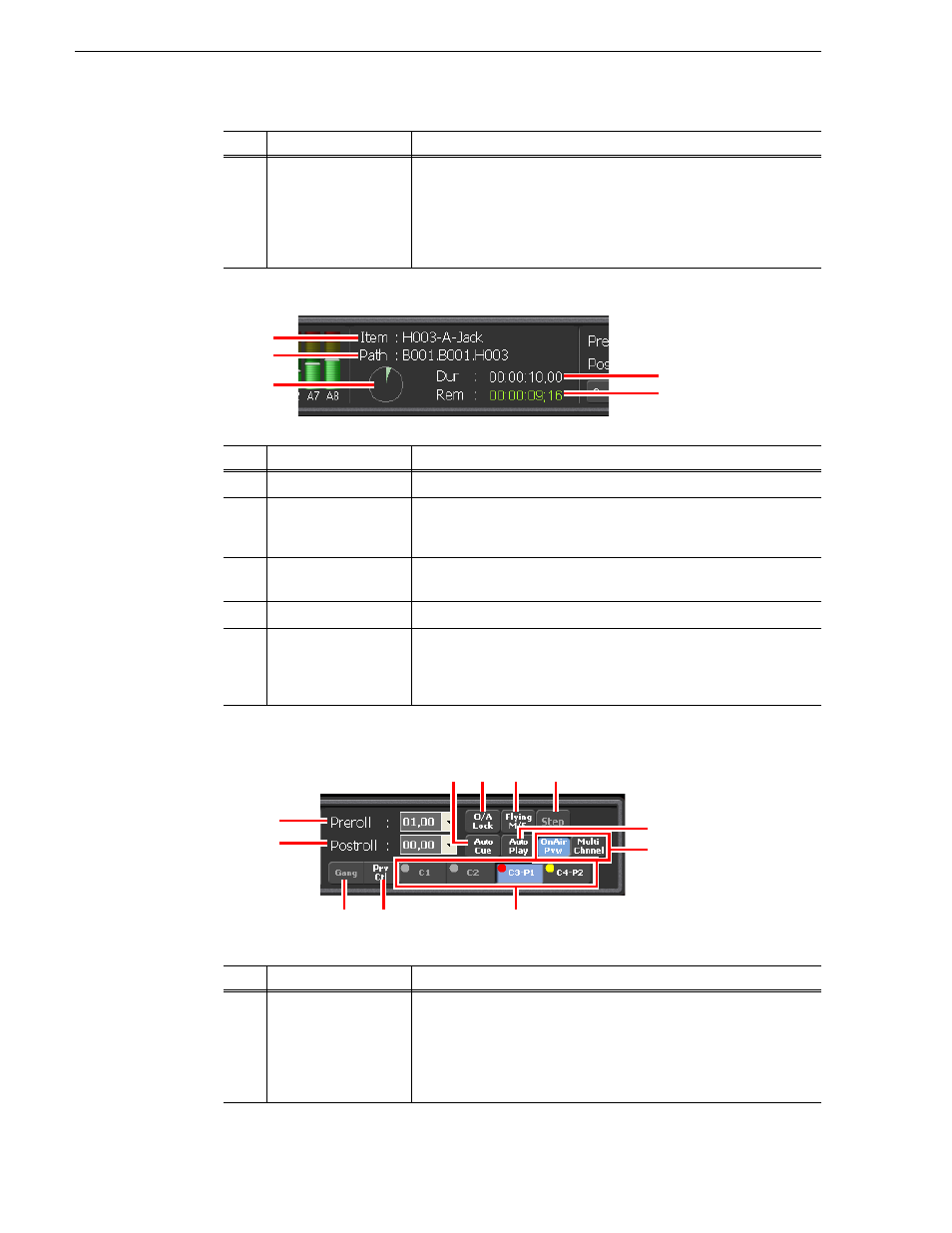

(1) Item Shows the name of the item that is being played or cued up.
(2) Path Shows the location of item data while an item is being played or cued up.
"RecordTrain" is displayed while the record train is being played or
cued up.
(3) Circular progress bar Shows the progress of the playback, assuming that the time range of the
item, that is being played or cued up, is 100.
(4) Dur Shows the duration of the item that is being played or cued up.
(5) Rem Shows the remaining time of the item that is being played or cued up.
The color of the timecode changes depending on the playback point. It
is shown in red while cueing up, shown in yellow while playing a
pre-roll/post-roll, and shown in green while playing an item.
No. Name Function
(1) Preroll
Postroll Click the list to select the setting from the three patterns. You can set a
value in "PLAY2" on the CONFIG screen. For more information about
setting a value, see
"Playback settings 2 (JOG speed, pre/post-roll
definitions)" on page 169 .
* "PREROLL" can be set for each channel separately, but only a single
"POSTROLL" setting is allowed for a Summit.
No. Name Function
(1)
(2)
(3)
(4)
(5)
(1)
(1)
(2) (3) (4)
(8) (5) (6) (7)
(9)
(10)
