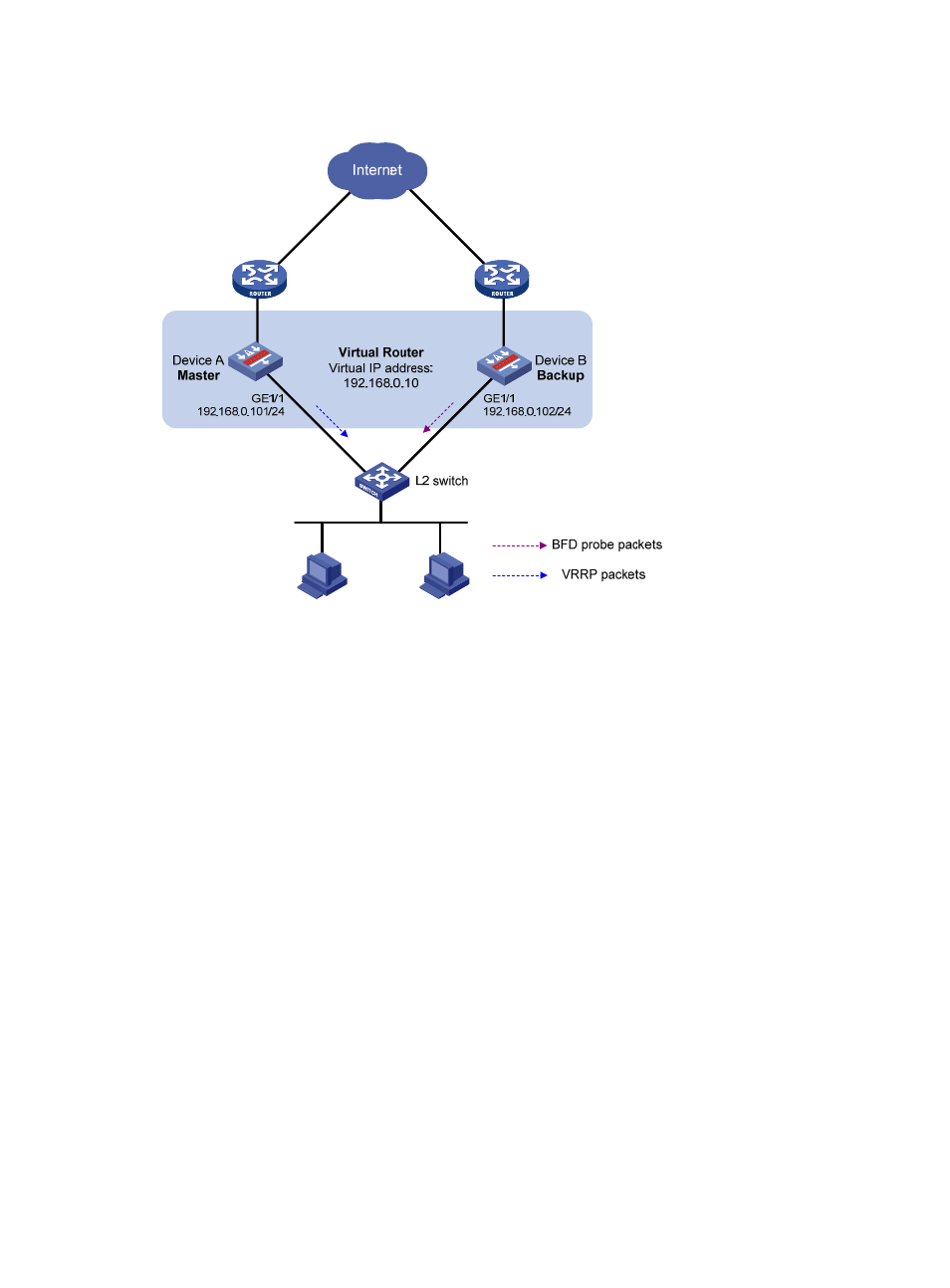

Figure 3 Network diagram for monitoring the master on the backup
Configuration procedure
Step1 Configure VRRP on Device A
system-view
[DeviceA] interface gigabitethernet 1/1
# Create VRRP group 1, and configure the virtual IP address 192.168.0.10 for the group. Set the priority
of Device A in VRRP group 1 to 110.
[DeviceA-GigabitEthernet1/1] vrrp vrid 1 virtual-ip 192.168.0.10
[DeviceA-GigabitEthernet1/1] vrrp vrid 1 priority 110
[DeviceA-GigabitEthernet1/1] return
Step2 Configure BFD on Device B.
# Configure the source address of BFD echo packets as 10.10.10.10.
system-view
[DeviceB] bfd echo-source-ip 10.10.10.10
Step3 Create a track entry to be associated with the BFD session on Device B
# Create track entry 1 to be associated with the BFD session to check whether Device A is reachable.
[DeviceB] track 1 bfd echo interface gigabitethernet 1/1 remote ip 192.168.0.101 local
ip 192.168.0.102
Step4 Configure VRRP on Device B
