Boot Bank Selection
ATCA-7470 Installation and Use (6806800P15K)
204
Failsafe in general can recover from many scenarios:
Missing or defect boot block
Firmware image has a bad checksum
When the Failsafe logic is triggered as a result of the BMC Watchdog timeout, a System
Firmware Progress event is logged as follows:
Sensor Type: 0x0F (System Firmware Progress)
Event Reading Type Code: 0x6F (Sensor Specific)
Event Data Byte 1: 0xA1 (System Firmware Hang)

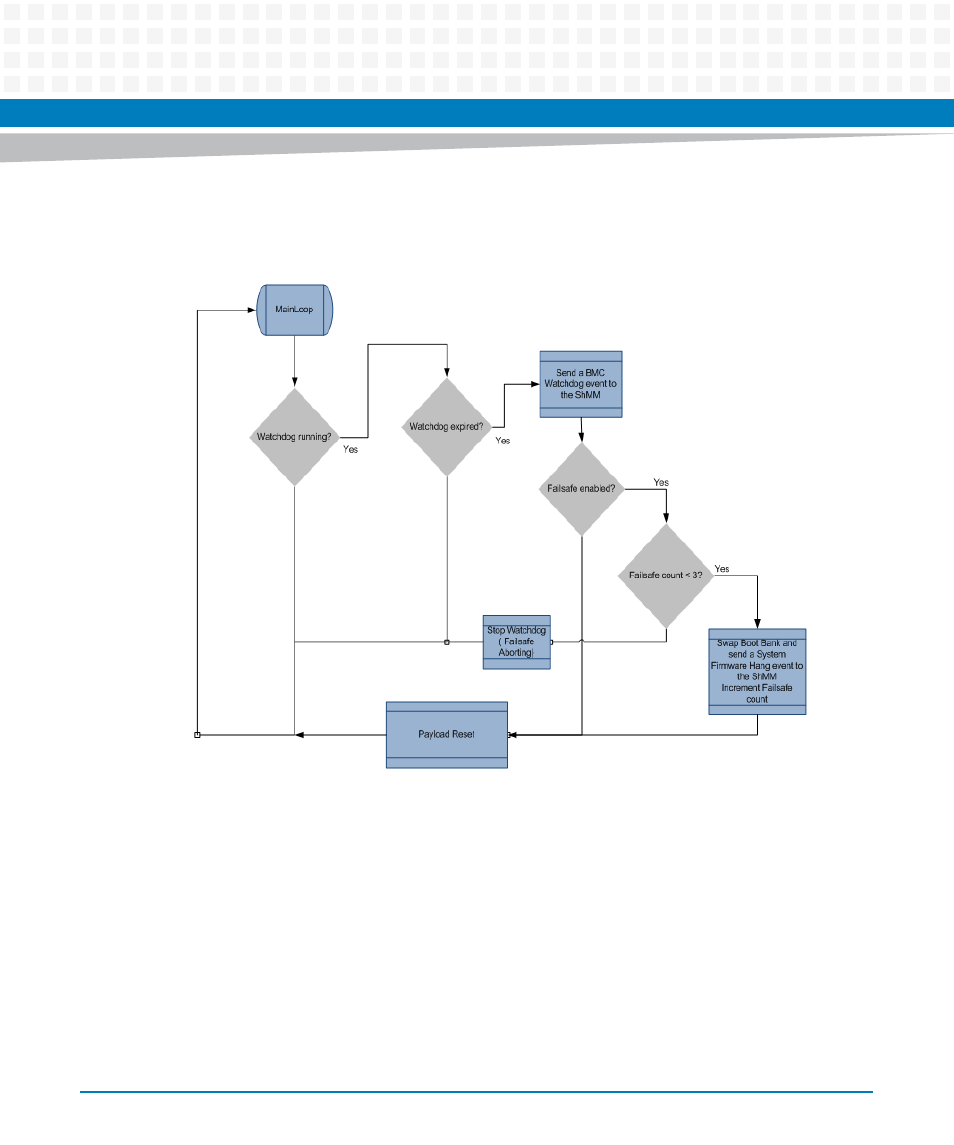

Figure 8-1
Failsafe Mechanism
